(FD14E) - CRAWLER DOZER
/

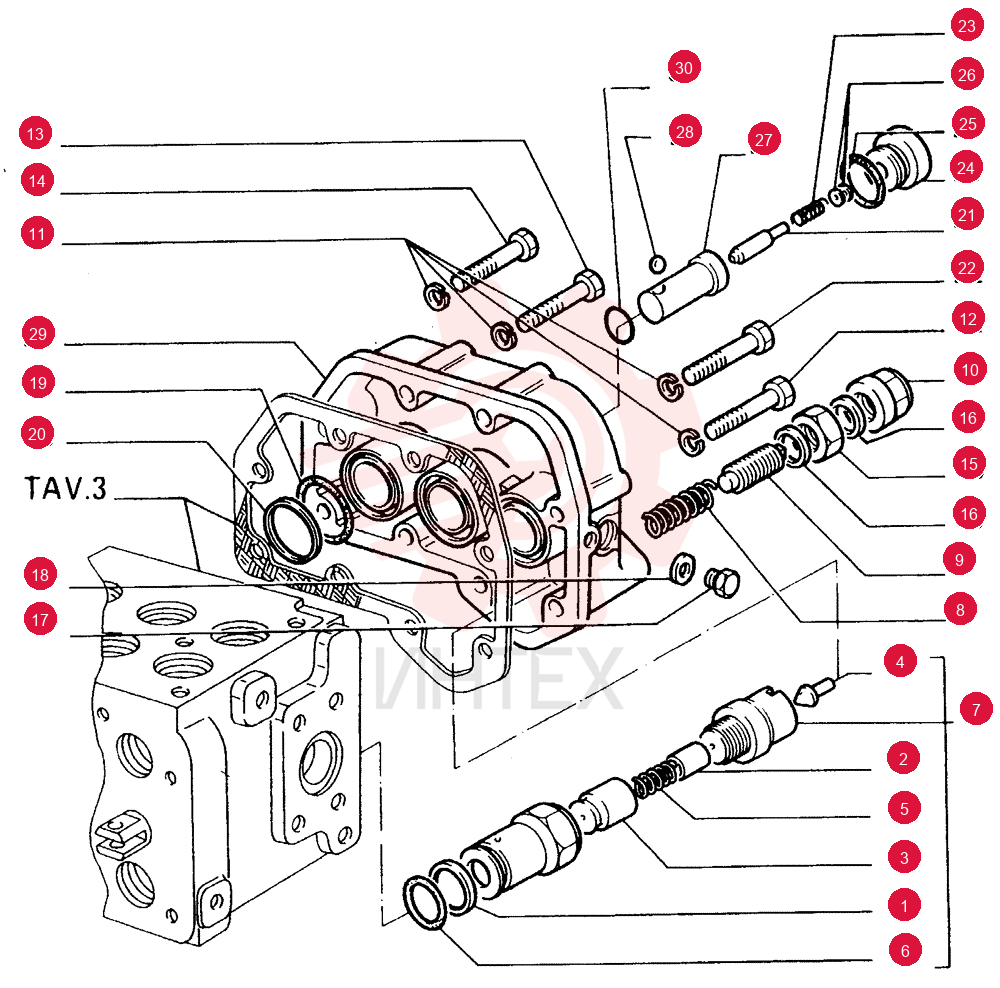

RING 8298503

RING 8298503

RING 8298503

1 8298503

  • 8298503 - RING

2 8283461

  • 8283461 - CUP

3 8287168

  • 8287168 - PRESSURE RELIEF VALVE

4 8287303

  • 8287303 - POPPET

5 8280488

  • 8280488 - SPRING

6 14457580

  • 14457580 - O-RING
  • 0.103" Thk x 0.799" ID
  • -117
  • Cl 5
  • 75 Duro

7 8295981

  • 8295981 - HYDRAULIC VALVE

8 8287305

  • 8287305 - SPRING

9 8287304

  • 8287304 - ADJUSTMENT SCREW
  • Sq
  • M16 x 1.5 x 27mm

10 8273439

  • 8273439 - PLUG

11 10516671

  • 10516671 - LOCK WASHER

12 16044431

  • 16044431 - SCREW
  • Hex
  • M8 x 60mm
  • Cl 10.9

13 16044721

  • 16044721 - SCREW
  • Hex
  • M8 x 75mm
  • Cl 8.8

14 86625003

  • 86625003 - BOLT
  • Hex
  • M8 x 50mm
  • Cl 10.9

15 10791411

  • 10791411 - THIN NUT
  • Thin
  • M16
  • 1.50mm Pitch
  • 8.00mm High
  • Cl 04
  • ZND

16 10257060

  • 10257060 - SEALING WASHER
  • 16.3mm ID x 22mm OD x 1.5mm Thk

17 10300911

  • 10300911 - PLUG
  • M8 x 1.25 x 11
  • Cl5.8

18 10260060

  • 10260060 - SEALING WASHER
  • 8.2mm ID x 14mm OD x 1mm Thk

19 14454480

  • 14454480 - O-RING
  • 1.301" ID x 0.07" Width

20 79072845

  • 79072845 - RING
  • 30.2mm ID x 33mm OD x 1.2mm Thk

21 79088112

  • 79088112 - ROD-TIP

22 79072812

  • 79072812 - SCREW

23 79088113

  • 79088113 - SPRING

24 79091084

  • 79091084 - PLUG

25 14457680

  • 14457680 - O-RING
  • 0.103" Thk x 0.862" ID
  • -118
  • Cl 5
  • 75 Duro

26 79086046

  • 79086046 - SHIM

27 79086047

  • 79086047 - SHIM

28 79071897

  • 79071897 - PIN

29 20063460

  • 20063460 - BALL
  • 7.14mm OD
  • Gr 100

30 79074914

  • 79074914 - COVER

31 14457080

  • 14457080 - O-RING
  • 0.103" Thk x 0.487" ID
  • -112
  • Cl 5
  • 75 Duro
