New Holland Construction
/
(FD14E) - CRAWLER DOZER
/

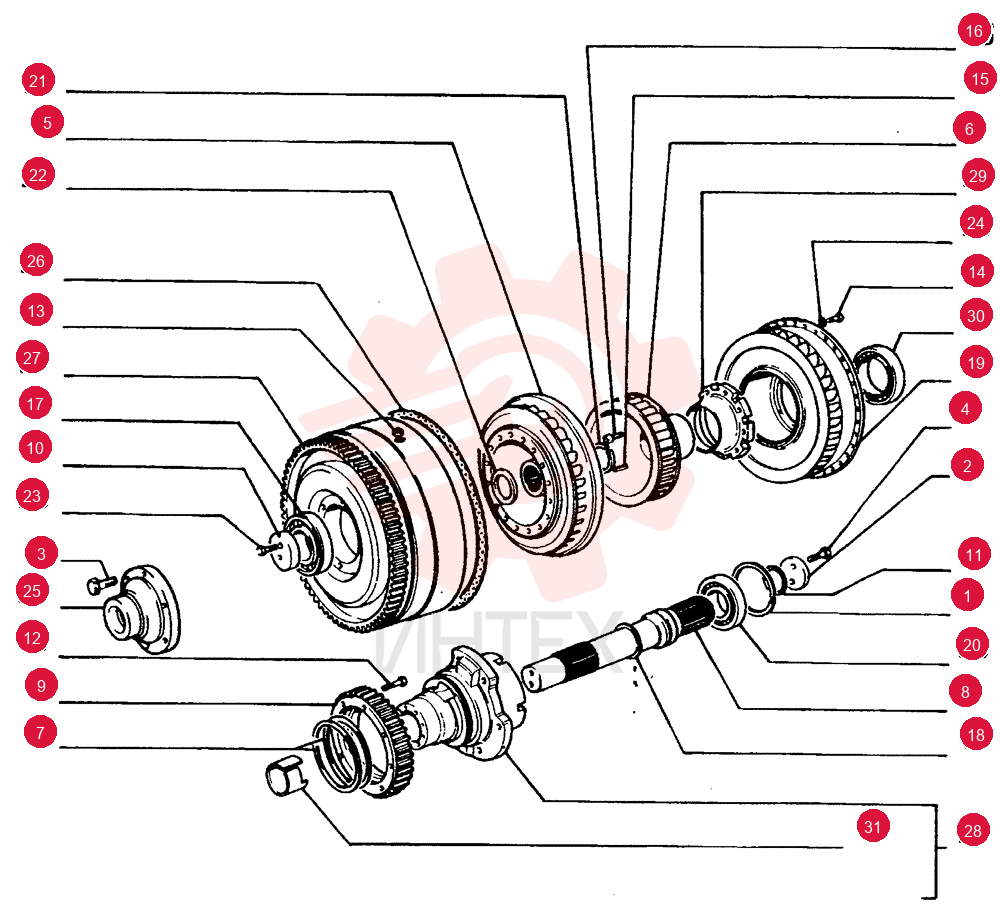

RING 9915528

RING 9915528

RING 9915528

1 9915528

  • 9915528 - RING

2 9915534

  • 9915534 - DISC

3 9920143

  • 9920143 - SCREW

4 9920146

  • 9920146 - SCREW

5 9921020

  • 9921020 - IMPELLER

6 9921021

  • 9921021 - STATOR

7 9921026

  • 9921026 - RING

8 9921028

  • 9921028 - SHAFT

9 79054094

  • 79054094 - GEAR

10 9921054

  • 9921054 - DISC

11 70628362

  • 70628362 - O-RING
  • 0.21" Thk x 2.1" ID
  • -330
  • Cl 5
  • 75 Duro

12 70915480

  • 70915480 - SCREW

13 70917673

  • 70917673 - PLUG

14 70921422

  • 70921422 - SCREW

15 70921458

  • 70921458 - LOCK PIN
  • 5/16" x 3/4"
  • Slotted

16 70922405

  • 70922405 - SCREW

17 73012085

  • 73012085 - BALL BEARING
  • 55mm ID x 120mm OD x 29mm W

18 73034877

  • 73034877 - RING

19 73037927

  • 73037927 - IMPELLER

20 73037960

  • 73037960 - CYLINDRICAL ROLLER BEARING
  • 64.99mm ID x 120mm OD x 23mm W

21 73037966

  • 73037966 - SNAP RING

22 73037967

  • 73037967 - SPACER
  • 55.14mm ID x 76.2mm OD x 5.33mm L

23 73039119

  • 73039119 - SCREW

24 73046938

  • 73046938 - WASHER
  • 8.38mm ID x 19.05mm OD x 1.96mm Thk

25 76003995

  • 76003995 - SLEEVE

26 79007210

  • 79007210 - SEAL

27 79008330

  • 79008330 - IMPELLER

28 79008331

  • 79008331 - SUPPORT

29 79008332

  • 79008332 - BOX

30 79008333

  • 79008333 - BALL BEARING

31 79011561

  • 79011561 - BUSHING
