(LB110) - BACKHOE LOADER UPGRADE 2000 (9/00-)
/

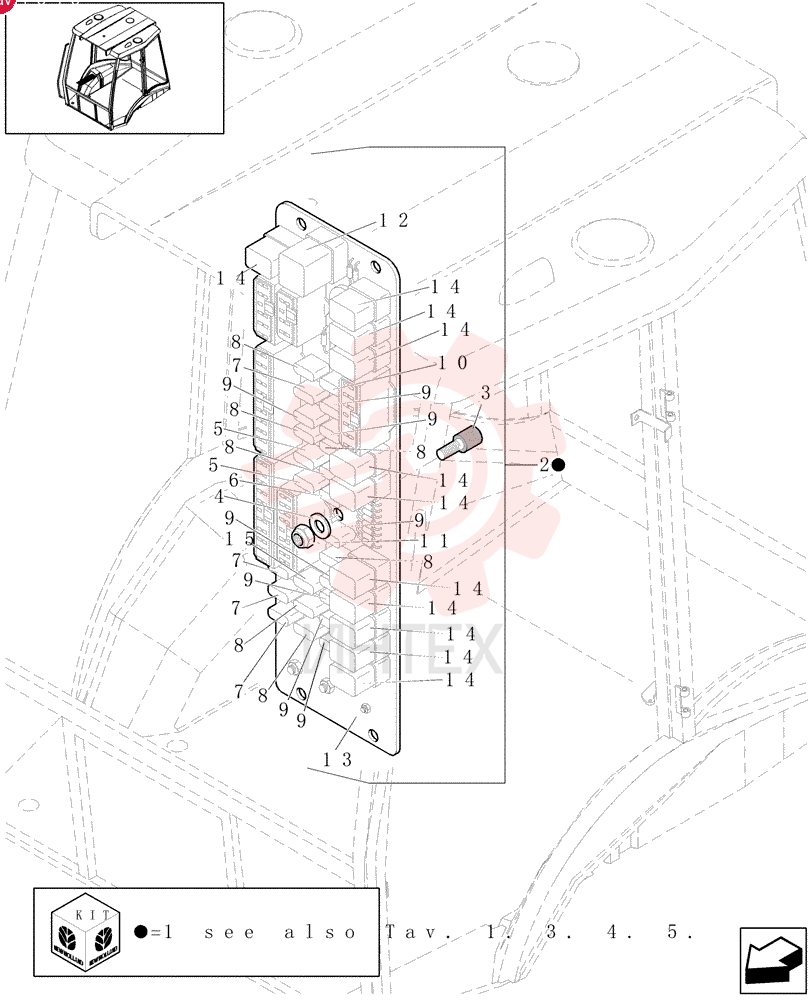

WIRE HARNESS 85825130 (8)

WIRE HARNESS 85825130 (8)

WIRE HARNESS 85825130 (8)

1 85825130

  • 85825130 - WIRE HARNESS

2 85825131

  • 85825131 - PANEL

3 85806135

  • 85806135 - ISOLATOR

4 10519204

  • 10519204 - WASHER
  • 4.3mm ID x 9mm OD x 0.8mm Thk

5 86503942

  • 86503942 - FUSE
  • 3A
  • Micro

6 87693742

  • 87693742 - FUSE
  • 5A

7 87717079

  • 87717079 - FUSE
  • 7.5A

8 9811773

  • 9811773 - FUSE
  • 10A
  • Micro
  • Red

9 84090658

  • 84090658 - FUSE
  • Lt Blue
  • 15 Amp

10 9804895

  • 9804895 - FUSE
  • 20A
  • Micro
  • Yellow

11 86625075

  • 86625075 - NUT
  • M4 x 0.7
  • Cl 8

12 85803986

  • 85803986 - RELAY
  • Flasher

13 85825127

  • 85825127 - PRINTED CIRCUIT BOAR

14 85805144

  • 85805144 - RELAY

15 85806134

  • 85806134 - FUSE
  • 6A
  • Self-Resetting
