New Holland Construction
/
(LB110) - BACKHOE LOADER UPGRADE 2000 (9/00-)
/

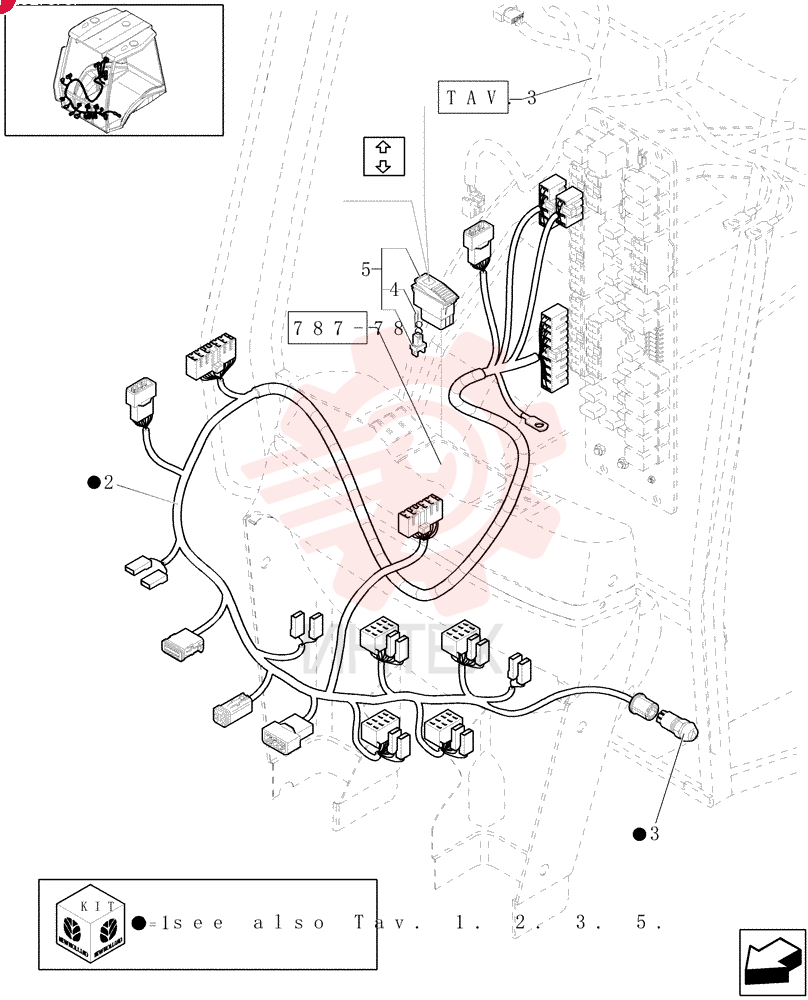

WIRE HARNESS 85825122 (2)

WIRE HARNESS 85825122 (2)

WIRE HARNESS 85825122 (2)

1 85825122

  • 85825122 - WIRE HARNESS

2 85819586

  • 85819586 - WIRE HARNESS

3 85806133

  • 85806133 - FLASHER SWITCH
  • Hazard

4 14143790

  • 14143790 - BULB
  • 12V
  • 1.2W
  • 12V/1.2W

5 85819144

  • 85819144 - SWITCH ASSY
  • Turn Indicator
