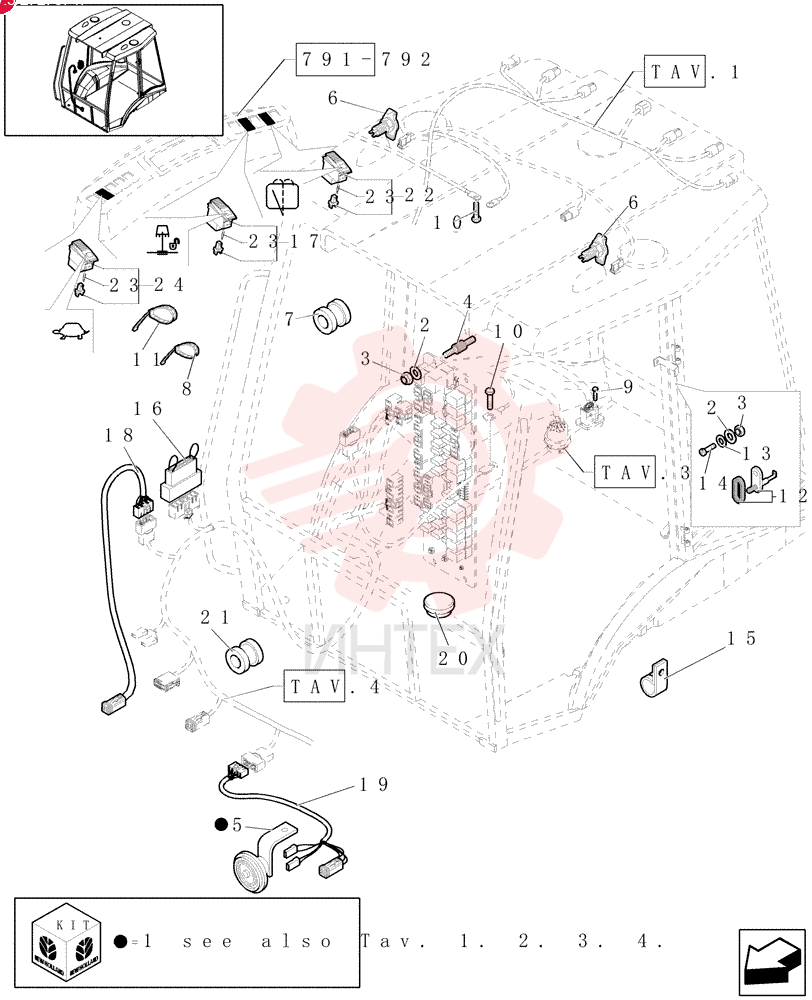

WIRE HARNESS 85825130 (9)
1 85825130
- 85825130 - WIRE HARNESS
2 10615274
- 10615274 - LOCK WASHER
- Ext Tooth
- M4
3 86625075
- 86625075 - NUT
- M4 x 0.7
- Cl 8
4 85802478
- 85802478 - ISOLATOR
5 5169413
- 5169413 - HORN
6 82002966
- 82002966 - POWER SOCKET
- M18 x 1
7 10398980
- 10398980 - GROMMET
- 36mm ID x 46mm GRV ø x 56mm OD x 15mm Thk
- 46 x 5
8 5112712
- 5112712 - COLLAR
- M4.8 x 283
9 13272214
- 13272214 - SCREW
- Pozidriv Pan Hd
- M4 x 16mm
- Cl 5.8
- Full Thd
10 16042924
- 16042924 - SCREW
- Hex
- M8 x 1.25 x 10mm
- Cl 8.8
- Full Thd
11 85805383
- 85805383 - CABLE TIE
12 83961521
- 83961521 - LIGHT SWITCH
- Interior Lamp
13 10519204
- 10519204 - WASHER
- 4.3mm ID x 9mm OD x 0.8mm Thk
14 13309417
- 13309417 - SCREW
- Pozidriv Oval Hd
- Csk
- M4 x 20mm
- Cl 5.8
- Full Thd
15 10450090
- 10450090 - CLAMP
- 8mm
- Coat
- 9mm Bolt Hole
- P Type
16 85806136
- 85806136 - ELEC CONNECTOR
- Female
- 13 Pins
17 85818895
- 85818895 - SWITCH ASSY
18 85819193
- 85819193 - WIRE HARNESS
19 85819195
- 85819195 - WIRE HARNESS
20 5108455
- 5108455 - PLUG
21 10398680
- 10398680 - GROMMET
- 25mm ID x 33mm GRV ø x 42mm OD x 15mm Thk
22 85818823
- 85818823 - SWITCH ASSY
23 14143790
- 14143790 - BULB
- 12V
- 1.2W
- 12V/1.2W
24 85819142
- 85819142 - SWITCH ASSY
