(LT190.B) - COMPACT TRACK LOADER (3/05-)
/

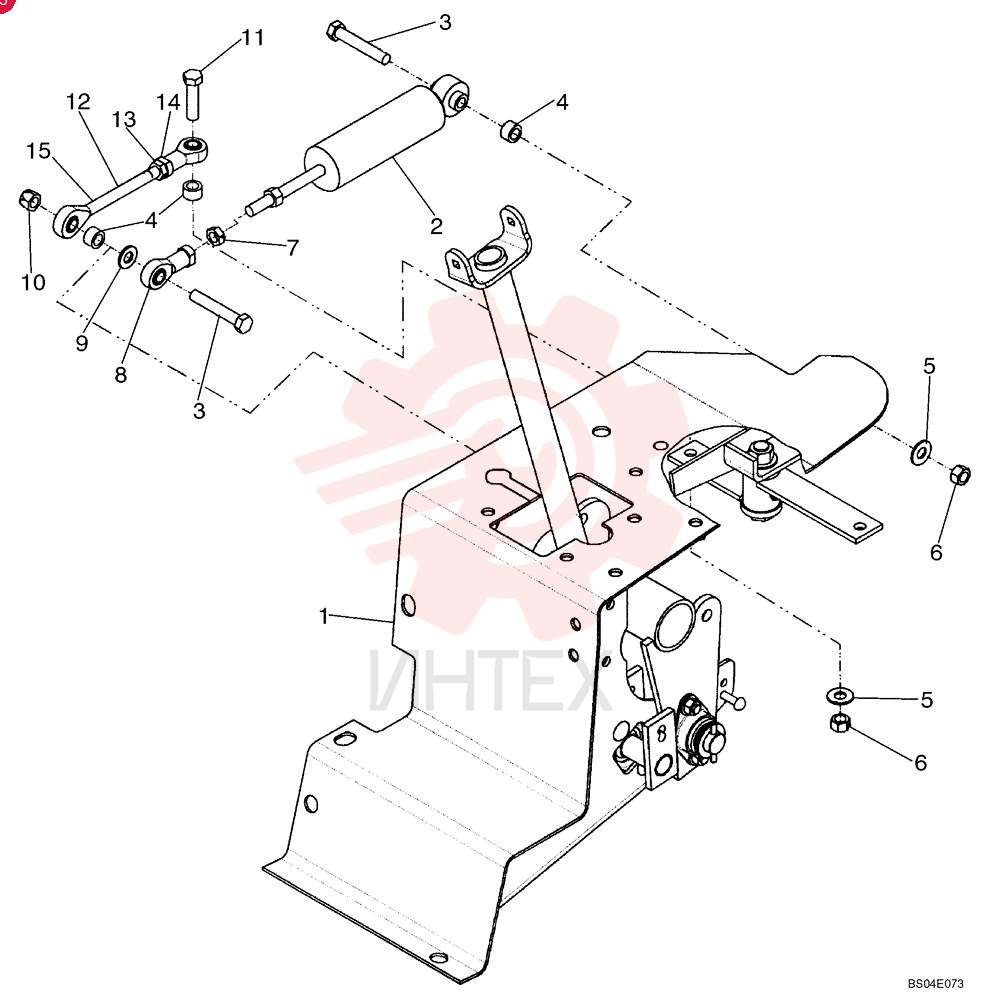

PANEL ASSY.

PANEL ASSY.

PANEL ASSY.

1 87042277

  • 87042277 - PANEL ASSY.
  • Kick Panel Assy
  • Right Hand
  • Incl. 1 - 15

2 87042278

  • 87042278 - PANEL ASSY.
  • Kick Panel Assy
  • Left Hand
  • Incl. 1 - 15

3 9826723

  • 9826723 - DAMPER

4 88546

  • 88546 - BOLT
  • Hex
  • 3/8" - 16 x 2 1/4"
  • Gr 5

5 626698

  • 626698 - SPACER

6 140045

  • 140045 - BELLEVILLE WASHER
  • M10 Bolt Size x 22mm OD x 1.6mm Thk

7 9628503

  • 9628503 - NUT
  • 3/8"-16
  • G5

8 87308

  • 87308 - JAM NUT
  • Jam
  • 3/8"-24
  • G2

9 86500348

  • 86500348 - BALL JOINT HEAD
  • 3/8" - 24
  • 3/8

10 87016

  • 87016 - WASHER
  • 0.41" ID x 0.81" OD x 0.07" Thk

11 88902

  • 88902 - NUT
  • 3/8"-16

12 88044

  • 88044 - BOLT
  • Hex
  • 3/8" - 16 x 1-1/2"
  • Gr 5

13 NSS

  • NSS - NOT SOLD SEPARAT
  • Link Assy
  • Order Components
  • Incl. 13 - 15

14 87308

  • 87308 - JAM NUT
  • Jam
  • 3/8"-24
  • G2

15 86500348

  • 86500348 - BALL JOINT HEAD
  • 3/8" - 24
  • 3/8

16 87042709

  • 87042709 - BEARING
  • 3/8
