(LT190.B) - COMPACT TRACK LOADER (3/05-)
/

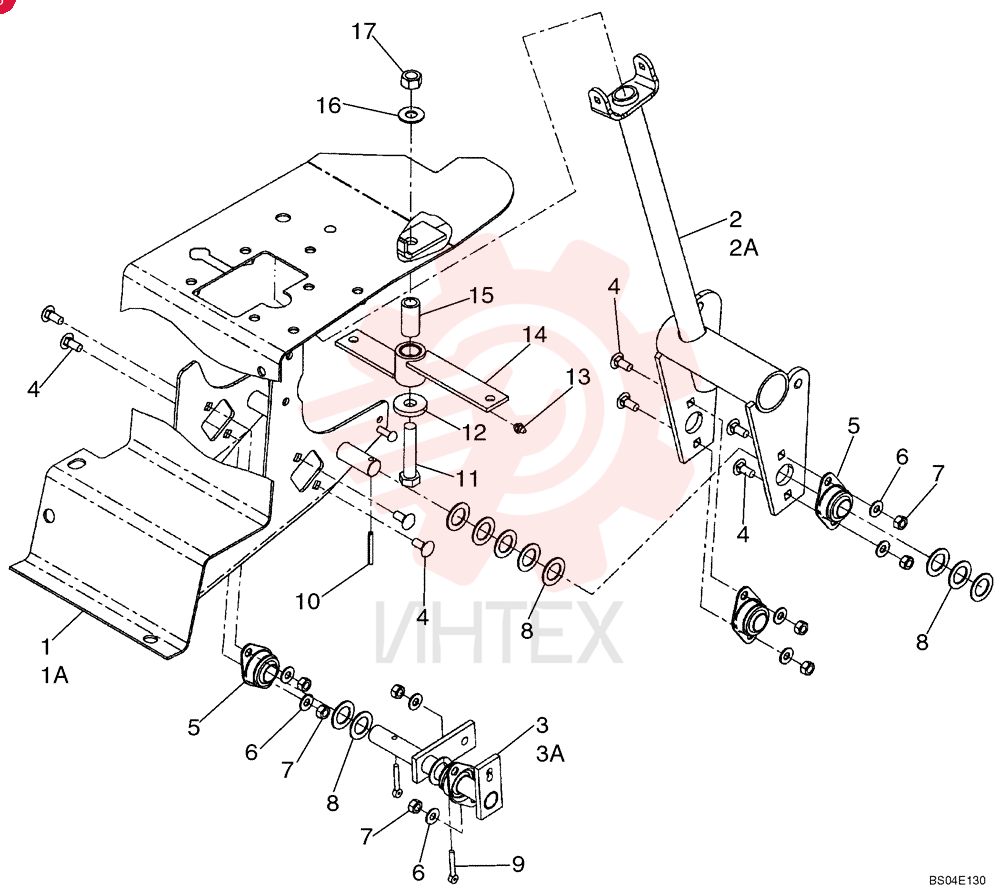

PANEL

PANEL

PANEL

1 87042708

  • 87042708 - PANEL
  • Kick Panel
  • Right Hand

2 87042707

  • 87042707 - PANEL
  • Kick Panel
  • Left Hand
  • Not Illustrated

3 87054953

  • 87054953 - HANDLE
  • Handle
  • Right Hand

4 87054952

  • 87054952 - HANDLE
  • Handle
  • Left Hand
  • Not Illustrated

5 86573113

  • 86573113 - SHAFT
  • Right Hand

6 86573114

  • 86573114 - SHAFT
  • Left Hand

7 280327

  • 280327 - CARRIAGE BOLT
  • Sq Nk
  • 5/16" - 18 x 3/4"
  • Gr 5
  • Full Thd

8 86567251

  • 86567251 - FLANGED BEARING
  • 19mm ID

9 322358

  • 322358 - BELLEVILLE WASHER
  • M8 Bolt Size x 18mm OD x 1.4mm Thk

10 9635082

  • 9635082 - NUT
  • 5/16" - 18
  • Gr 5

11 249100

  • 249100 - WASHER
  • 0.78" ID x 1.25" OD x 0.06" Thk

12 87398

  • 87398 - COTTER PIN
  • 3/16" OD x 1-1/4" OAL

13 86977792

  • 86977792 - SLOTTED PIN
  • 5mm OD x 40mm L
  • Slotted

14 87972

  • 87972 - BOLT
  • Hex
  • 1/2" - 13 x 2 1/2"
  • Gr 5

15 86592701

  • 86592701 - WASHER
  • 13mm ID x 35mm OD x 5mm Thk

16 87414

  • 87414 - LUBE NIPPLE
  • 1/4" - 28

17 87042706

  • 87042706 - PLATE
  • Incl. 195183

18 195183

  • 195183 - BUSHING
  • 19.13mm ID x 22.3mm OD x 12.7mm L
  • Not Illustrated Separately

19 676223

  • 676223 - HUB

20 140046

  • 140046 - BELLEVILLE WASHER
  • M12 Bolt Size x 27mm OD x 1.8mm Thk

21 280431

  • 280431 - NUT
  • 1/2"-13
  • G5
