New Holland Construction
/
(LT190.B) - COMPACT TRACK LOADER (3/05-)
/

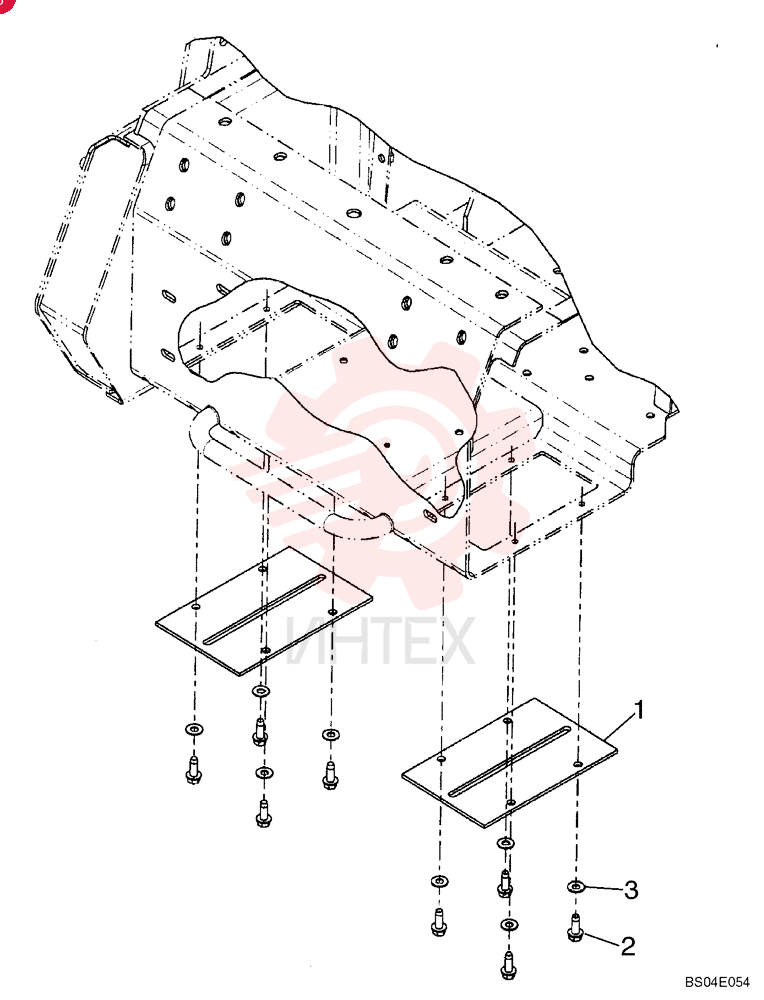

KIT

KIT

KIT

1 86590098

  • 86590098 - KIT
  • Floor Plate
  • Incl. 1 - 3
  • Included in 86589797 Cab Closure Kit
  • See Figure 09-12

2 9841264

  • 9841264 - PLATE

3 87538914

  • 87538914 - COVER PLATE
  • Replaces 9841264

4 280476

  • 280476 - SELF-TAP SCREW
  • HWH
  • 3/8"-16 x 1"

5 140045

  • 140045 - BELLEVILLE WASHER
  • M10 Bolt Size x 22mm OD x 1.6mm Thk
