(LT190.B) - COMPACT TRACK LOADER (3/05-)
/

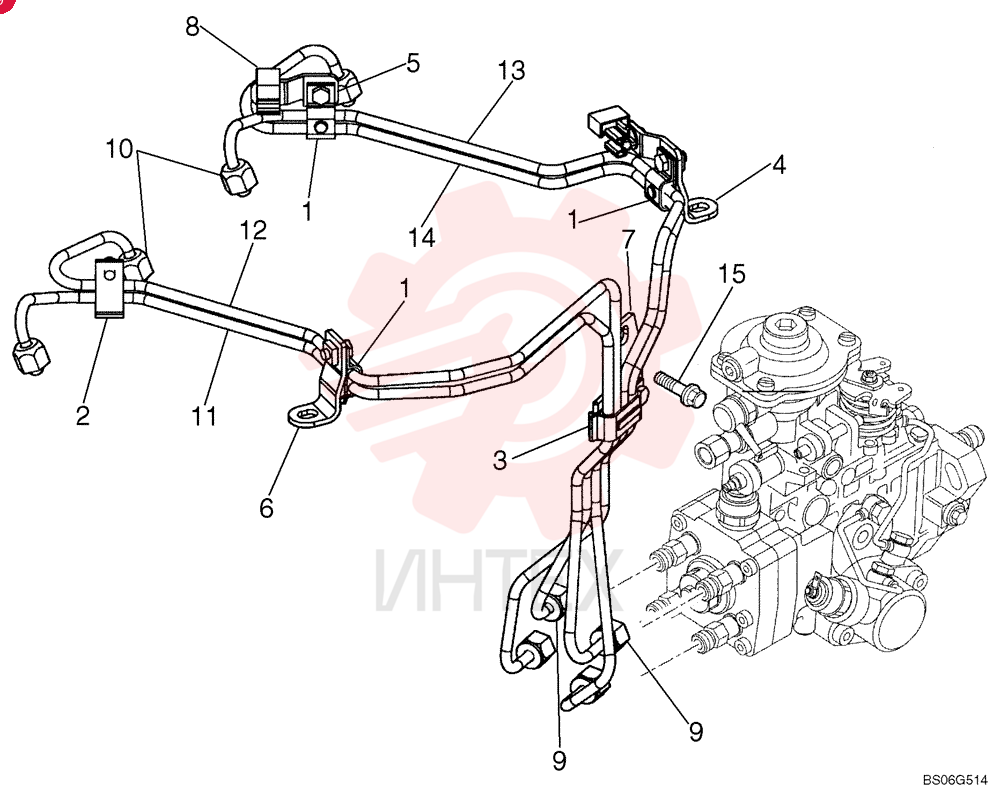

PIPE SET 2852075

PIPE SET 2852075

PIPE SET 2852075

1 2852075

  • 2852075 - PIPE SET
  • Fuel Injection Supply Pipe Assy
  • Incl. Ref 1-14

2 2852871

  • 2852871 - BRACKET
  • Fuel Injection Pipe Bracket

3 2852872

  • 2852872 - BRACKET
  • Fuel Injection Pipe Bracket

4 2852873

  • 2852873 - BRACKET
  • Fuel Injection Pipe Bracket

5 2852874

  • 2852874 - BRACKET
  • Fuel Injection Pipe Bracket

6 2852875

  • 2852875 - BRACKET
  • Fuel Injection Pipe Bracket

7 2852876

  • 2852876 - BRACKET
  • Fuel Injection Pipe Bracket

8 2852877

  • 2852877 - BRACKET
  • Fuel Injection Pipe Bracket

9 2852878

  • 2852878 - CLAMP BRACKET
  • Fuel Injection Pipe Bracket

10 2852879

  • 2852879 - NUT
  • Hex Nut

11 2852880

  • 2852880 - NUT
  • Hex Nut

12 2852881

  • 2852881 - INJECTION PIPE
  • Fuel Injector Supply Pipe

13 2852882

  • 2852882 - INJECTION PIPE
  • Fuel Injector Supply Pipe

14 2852883

  • 2852883 - INJECTION PIPE
  • Fuel Injector Supply Pipe

15 2852884

  • 2852884 - INJECTION PIPE
  • Fuel Injector Supply Pipe

16 4896884

  • 4896884 - BOLT
  • Flng
  • M8 x 1.25 x 16mm
  • Cl 10.9
  • Replaces 4899068
