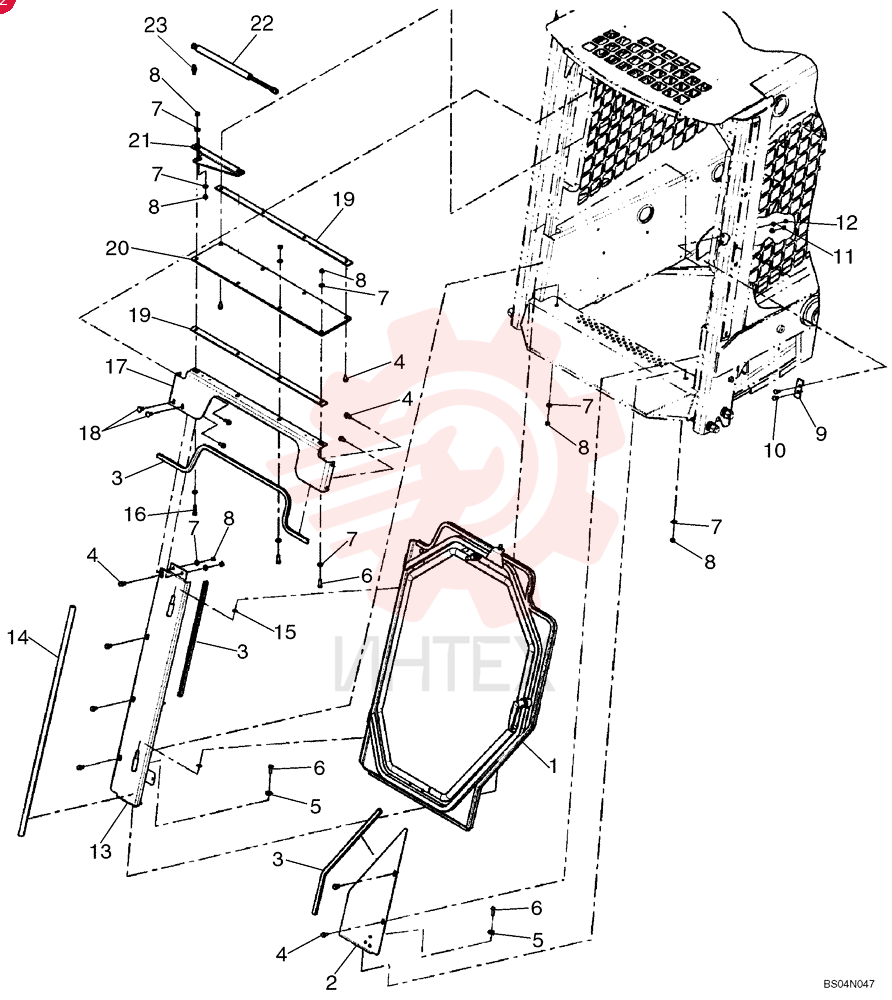

KIT
1 86594686
- 86594686 - KIT
- Cab Door Parts Kit
- Incl. 86547932 Door
- Ref 2
- (7) Ref 4
- Ref 5 - 9
- 11 - 23
- (7) 87872 Bolt .31 x 1.25
- (2) 88832 Bolt .25 x .75
- (2) 28057 .31 x 1.25
- Included in 86589797 Cab Closure Kit
- See Figure 09-12
2 86547932
- 86547932 - DOOR
- See Figure 09-16
3 86547928
- 86547928 - ANGLE
4 617215
- 617215 - MOLDING
5 9840344
- 9840344 - BOLT
- Hex
- 5/16" - 18 x 11/16"
6 80664
- 80664 - WASHER
- 0.38" ID x 0.88" OD x 0.08" Thk
7 9635884
- 9635884 - BOLT
- Hex
- 5/16" - 18 1"
- Full Thd
- Gr 5
8 322358
- 322358 - BELLEVILLE WASHER
- M8 Bolt Size x 18mm OD x 1.4mm Thk
9 9635082
- 9635082 - NUT
- 5/16" - 18
- Gr 5
10 86590348
- 86590348 - PLATE
- Striker
11 280638
- 280638 - CARRIAGE BOLT
- Short NK
- 1/4"-20 x 3/4"
- G5
- Full Thd
12 322357
- 322357 - BELLEVILLE WASHER
- M6 Bolt Size x 14mm OD x 1.3mm Thk
13 7770
- 7770 - NUT
- Hex
- 1/4 - 20
- Cl 5
14 86586648
- 86586648 - HINGE
15 86555682
- 86555682 - SEALING STRIP
- 3' D-Seal For Right Hand Hinge Plate Of Cab Door Or Demolition Door
16 86547919
- 86547919 - WASHER
- 10.3mm ID x 16.1mm OD x 2.1mm Thk
- Brass
17 87657
- 87657 - BOLT
- Hex
- 5/16" - 18 x 1 1/4"
- Gr 5
18 86547929
- 86547929 - ANGLE
19 280497
- 280497 - CARRIAGE BOLT
- Short Sq Nk
- 5/16" - 18 x 3/4"
- Gr 5
- Full Thd
20 9822593
- 9822593 - RUBBER WEATHERSTRIP
21 9822592
- 9822592 - COVER
- Lexan
22 86547930
- 86547930 - BRACKET
23 87050853
- 87050853 - GAS STRUT
24 9803209
- 9803209 - BALL STUD
- 5/16" - 18
