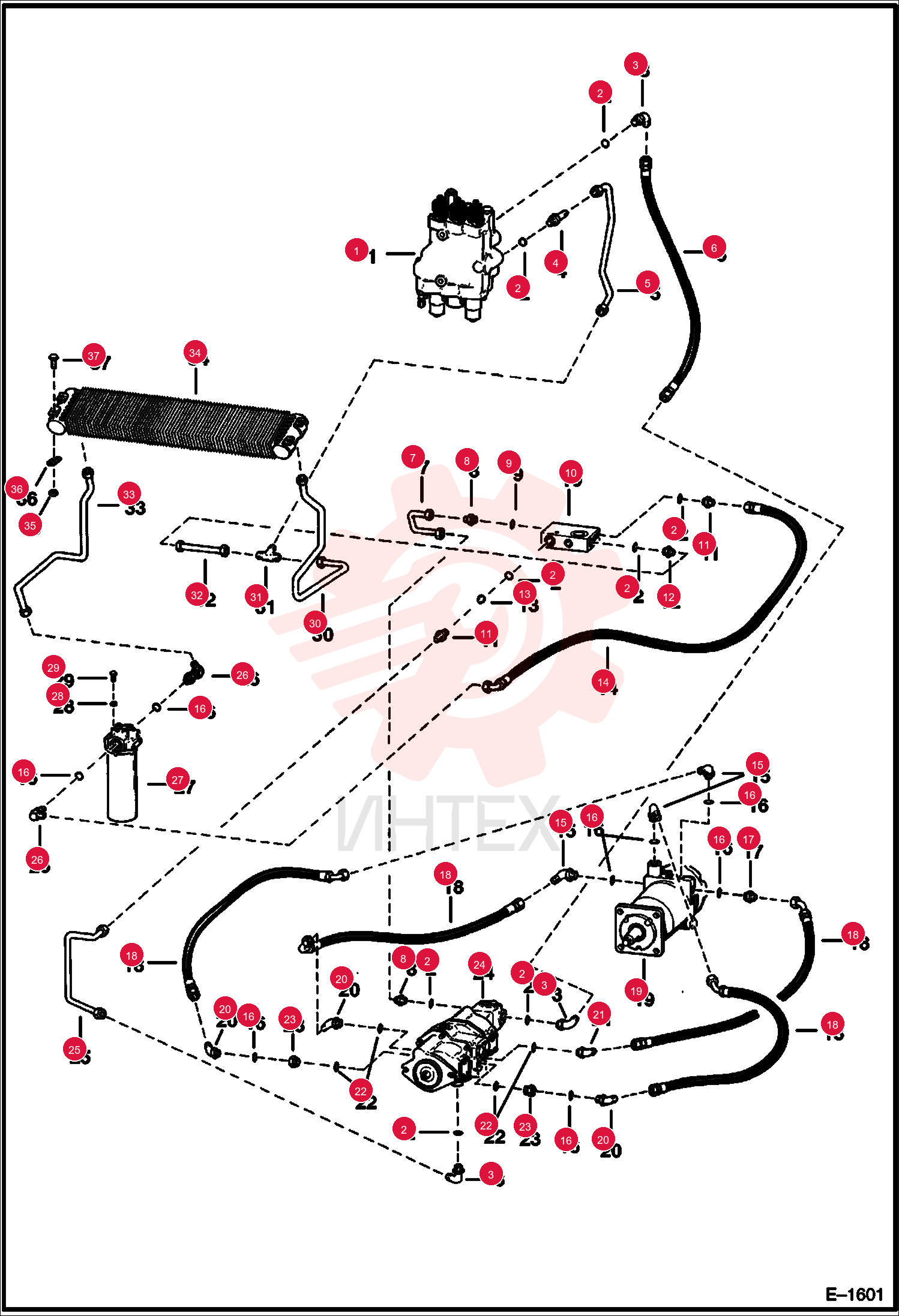

O RING 10 79K10 (1)

O RING 10 79K10 (1)

O RING 10 79K10 (1)

1 79K10

  • 79K10 - O RING 10

2 17K7

  • 17K7 - ELBOW
  • W/Ref. 2

3 16K7

  • 16K7 - FITTING
  • W/Ref. 2

4 6585930

  • 6585930 - TUBE

5 1306530

  • 1306530 - HYD HOSE

6 6561613

  • 6561613 - TUBE

7 15K6

  • 15K6 - ADAPTER
  • WRef. 9

8 79K8

  • 79K8 - O RING 10

9 15K7

  • 15K7 - FITTING
  • W/Ref. 2

10 6559518

  • 6559518 - FITTING
  • ADAPTER
  • W/Ref. 2

11 6555832

  • 6555832 - ORFICE
  • .217/.225

12 6584638

  • 6584638 - HOSE

13 17K8

  • 17K8 - FITTING
  • W/Ref. 16

14 79K12

  • 79K12 - O RING 10

15 15K8

  • 15K8 - FITTING
  • W/Ref. 17

16 6584107

  • 6584107 - HOSE

17 18K8

  • 18K8 - FTG
  • W/Ref. 16

18 79K16

  • 79K16 - O RING 10

19 6561478

  • 6561478 - ADAPTOR
  • W/Ref. 22

20 6561615

  • 6561615 - TUBE

21 17KB1012

  • 17KB1012 - FITTING
  • HYD ELBOW
  • W/Ref. 16 - Was 1302104

22 25E17

  • 25E17 - WASHER FLAT PLAIN

23 17C610

  • 17C610 - BOLT

24 6561616

  • 6561616 - TUBE

25 10K7

  • 10K7 - TEE

26 6561624

  • 6561624 - TUBE

27 6584834

  • 6584834 - TUBE

28 6598438

  • 6598438 - EXCHANGER
  • OIL COOLER

29 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

30 774220

  • 774220 - NUT
  • spring

31 10C512

  • 10C512 - BOLT SQ NECK RND HD
  • Was 6553808
