2000
/

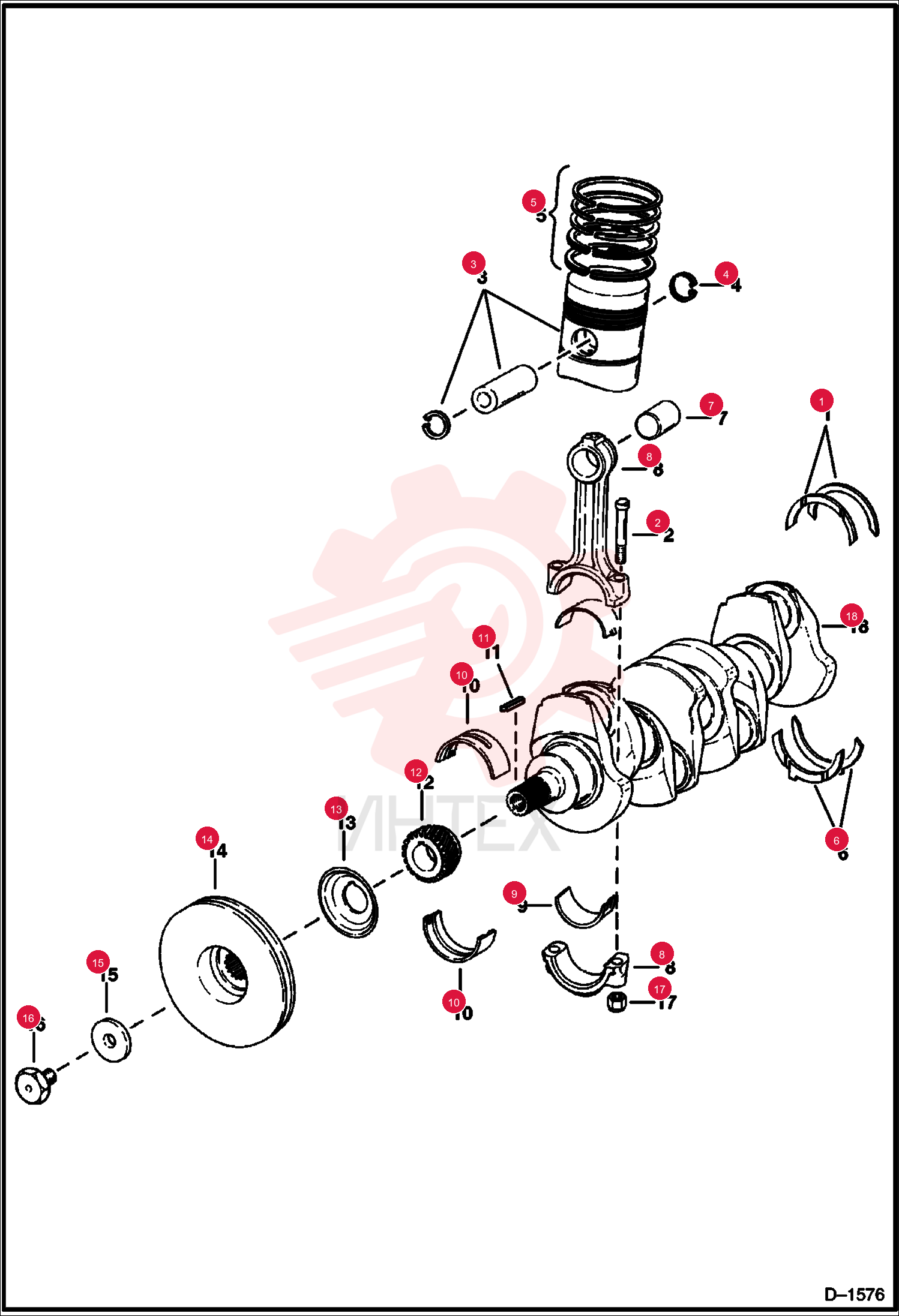

PLATE 998015

PLATE 998015

PLATE 998015

1 998015

  • 998015 - PLATE
  • Thrust - +.007 - 1/2 washer

2 998302

  • 998302 - BOLT

3 998031

  • 998031 - PISTON
  • .030 - Piston only

4 3490709

  • 3490709 - RING

5 998051

  • 998051 - RING SET
  • Standard

6 997984

  • 997984 - RING SET
  • .030

7 998023

  • 998023 - ROD ASSEMBLY
  • W/Ref. 2-7 & 17

8 6630223

  • 6630223 - BEARING
  • ROD
  • Rod bearing - .010 - Was 998026B

9 6630226

  • 6630226 - BEARING
  • MAIN
  • Main bearing - .010 - Was 998011B

10 6630228

  • 6630228 - BEARING
  • MAIN
  • Main bearing - .030 - Was 998013B

11 998018

  • 998018 - KEY

12 998020

  • 998020 - GEAR

13 6599295

  • 6599295 - SLINGER
  • Was 998016B

14 3736927

  • 3736927 - WASHER
  • NLA - Was 3736927

15 62D7

  • 62D7 - NUT

16 998007

  • 998007 - SHAFT
  • crankshaft - W/Ref. 1
  • 6 & 9-11
