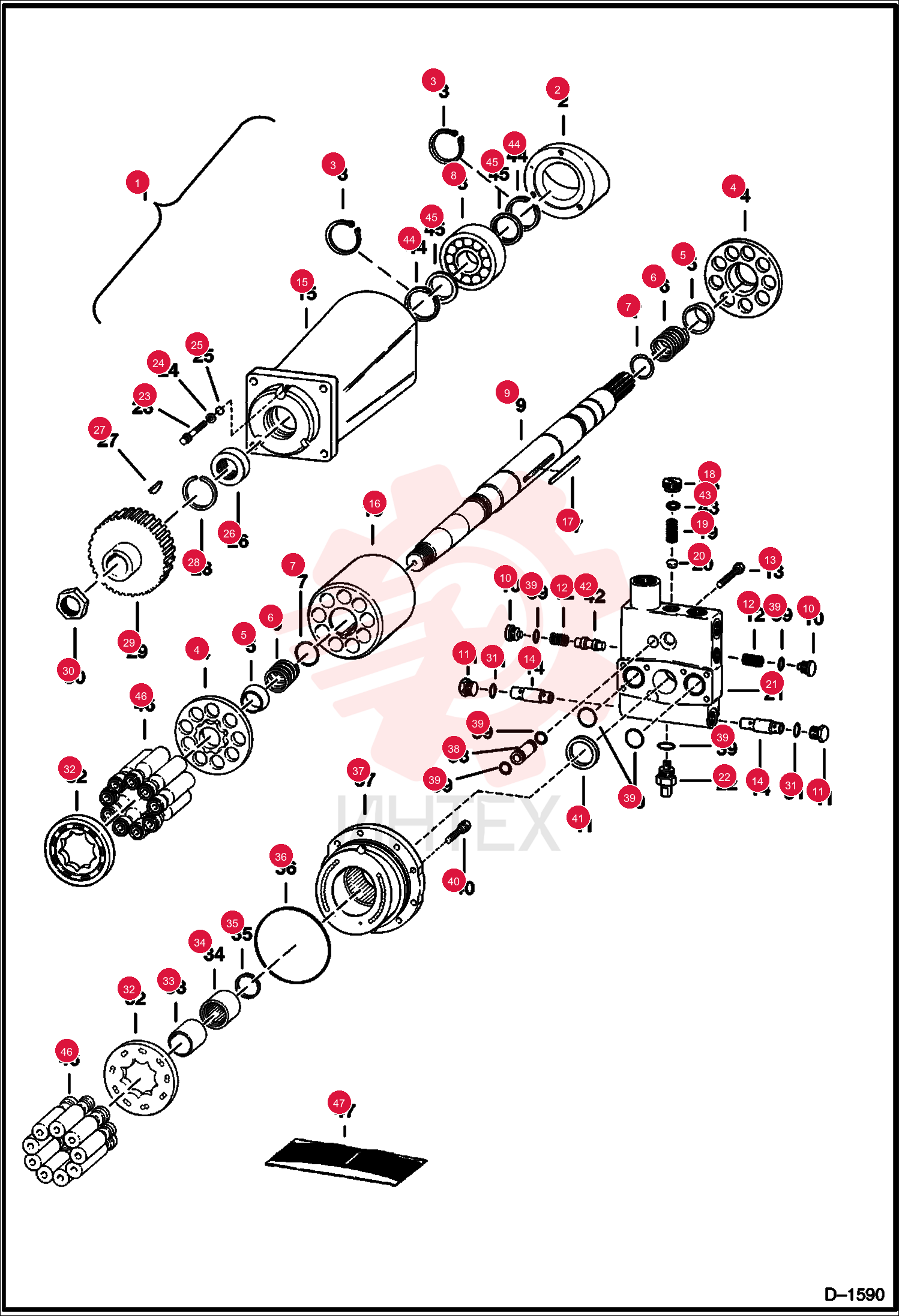

SPRING 6598415 (2)

SPRING 6598415 (2)

SPRING 6598415 (2)

1 6598415

  • 6598415 - SPRING

2 743439

  • 743439 - BEARING

3 6631699

  • 6631699 - SHAFT KIT
  • Ref. 9
  • 45 & 46

4 6513479

  • 6513479 - PLUG
  • W/Spring & O-Ring

5 6518513

  • 6518513 - KIT
  • SHIM

6 6650610

  • 6650610 - REL.VALVE
  • relief - Was 6630011

7 6598509

  • 6598509 - HOUSING

8 6598417

  • 6598417 - KEY

9 6598510

  • 6598510 - VALVE BDY
  • valve - W/Ref. 10-12
  • 14
  • 18-20
  • 22
  • 31
  • 39
  • 42 & 44

10 6598400

  • 6598400 - TOW VALVE
  • tow

11 6510043

  • 6510043 - WASHER

12 6J1210

  • 6J1210 - KEY WOODRUFF

13 6584119

  • 6584119 - NUT

14 25K30028

  • 25K30028 - O RING 10

15 6598405

  • 6598405 - RACE

16 6584360

  • 6584360 - SHIM

17 6631701

  • 6631701 - WASHER
  • W/Ref. 44

18 6598419

  • 6598419 - SEAL KIT
  • W/Ref. 3
  • 7
  • 25
  • 26
  • 28
  • 35
  • 36
  • 39
  • 41 & 44
