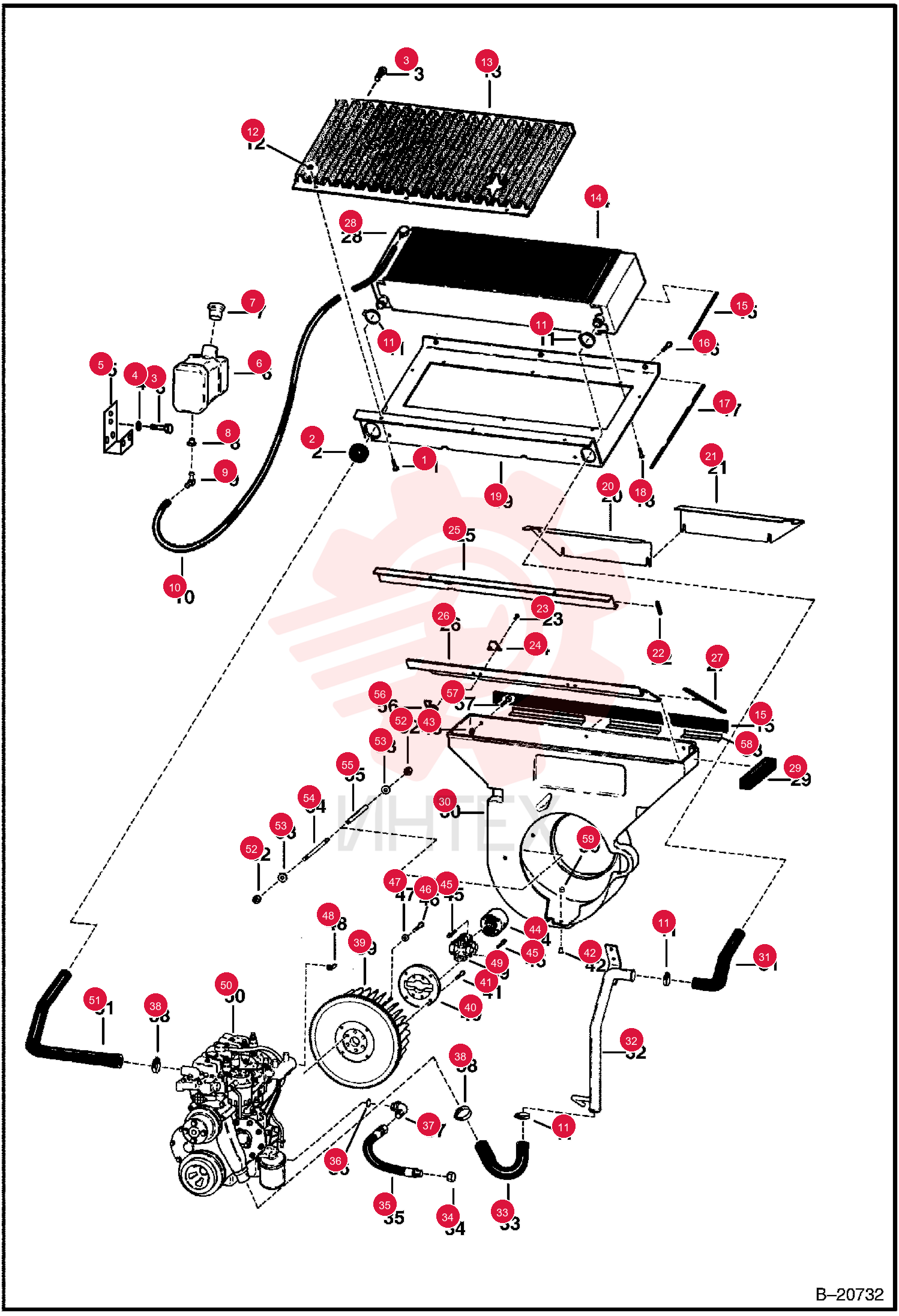

SCREW THD ROLLING TT 84G3716 (1)

SCREW THD ROLLING TT 84G3716 (1)

SCREW THD ROLLING TT 84G3716 (1)

1 84G3716

  • 84G3716 - SCREW THD ROLLING TT

2 6512067

  • 6512067 - GROMMET

3 84G3712

  • 84G3712 - SCREW THD ROLLING TT

4 6E6

  • 6E6 - WASHER

5 6562513

  • 6562513 - MOUNT

6 6562509

  • 6562509 - TANK
  • coolant - Also Order Ref. 8 & 9

7 6576660

  • 6576660 - TANK
  • WATER COOLANT
  • W/bottom molded barbed elbow

8 6702797

  • 6702797 - CAP
  • Was 6558658

9 6553411

  • 6553411 - BUSHING
  • PRESS FIT 5
  • Use W/Ref. 6 (6562509 tank)

10 6553412

  • 6553412 - ELBOW
  • Use W/Ref. 6 (6562509 tank)

11 6562603

  • 6562603 - HOSE

12 42H32

  • 42H32 - HS CLAMP5

13 57D6

  • 57D6 - NUT HEX FLNG GR8

14 6511855

  • 6511855 - TAPE BULK/FT 25'
  • self adhesive - sold per foot

15 84G3720

  • 84G3720 - SCREW THD ROLLING TT

16 6562050

  • 6562050 - SHIELD
  • MOLDING

17 6564546

  • 6564546 - SHIELD

18 6564282

  • 6564282 - RETAINER

19 6564281

  • 6564281 - RETAINER

20 6559763

  • 6559763 - MOULDING

21 6598954

  • 6598954 - RIVET

22 6564286

  • 6564286 - STOP

23 6564280

  • 6564280 - RETAINER

24 6564284

  • 6564284 - COVER

25 6564287

  • 6564287 - MOULDING

26 6666606

  • 6666606 - RAD CAP
  • Radiator - Was 6630156

27 6560690

  • 6560690 - INSULATION
  • foam

28 6562211

  • 6562211 - HOUSING
  • blower

29 6564494

  • 6564494 - HOSE RADIATOR

30 6564495

  • 6564495 - HOSE RADIATOR

31 36K6

  • 36K6 - CAP

32 6805079

  • 6805079 - HOSE
  • Was 6564639

33 79K8

  • 79K8 - O RING 10

34 17K6

  • 17K6 - ELBOW
  • With Ref. 36

35 42HL300

  • 42HL300 - CLAMP
  • Was 6598799

36 6563110

  • 6563110 - WHL BLO A
  • wheel - W/Ring Gear

37 6513662

  • 6513662 - GEAR
  • RING STARTER

38 6562882

  • 6562882 - ADAPTER
  • FLYWHEEL

39 17C624

  • 17C624 - BOLT 5

40 35C620

  • 35C620 - BOLT 5

41 83D6

  • 83D6 - LKNUT HEX FLG GR8

42 6562879

  • 6562879 - YOKE
  • POWER TRANSFER

43 94G524

  • 94G524 - BOLT 5

44 18C822

  • 18C822 - SCREW

45 6557929

  • 6557929 - WASHER

46 6513679

  • 6513679 - DRAINCOCK VALVE

47 6564576

  • 6564576 - ENGINE

48 6564220

  • 6564220 - HOSE RADIATOR

49 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

50 25E18

  • 25E18 - WASHER FLAT PLAIN

51 6565333

  • 6565333 - BOLT
  • Was 6563591

52 6563592

  • 6563592 - BUSHING

53 6598955

  • 6598955 - LATCH

54 84G3720

  • 84G3720 - SCREW THD ROLLING TT

55 6584380

  • 6584380 - BRACKET

56 59D6

  • 59D6 - NUT LOCK HEX PT
