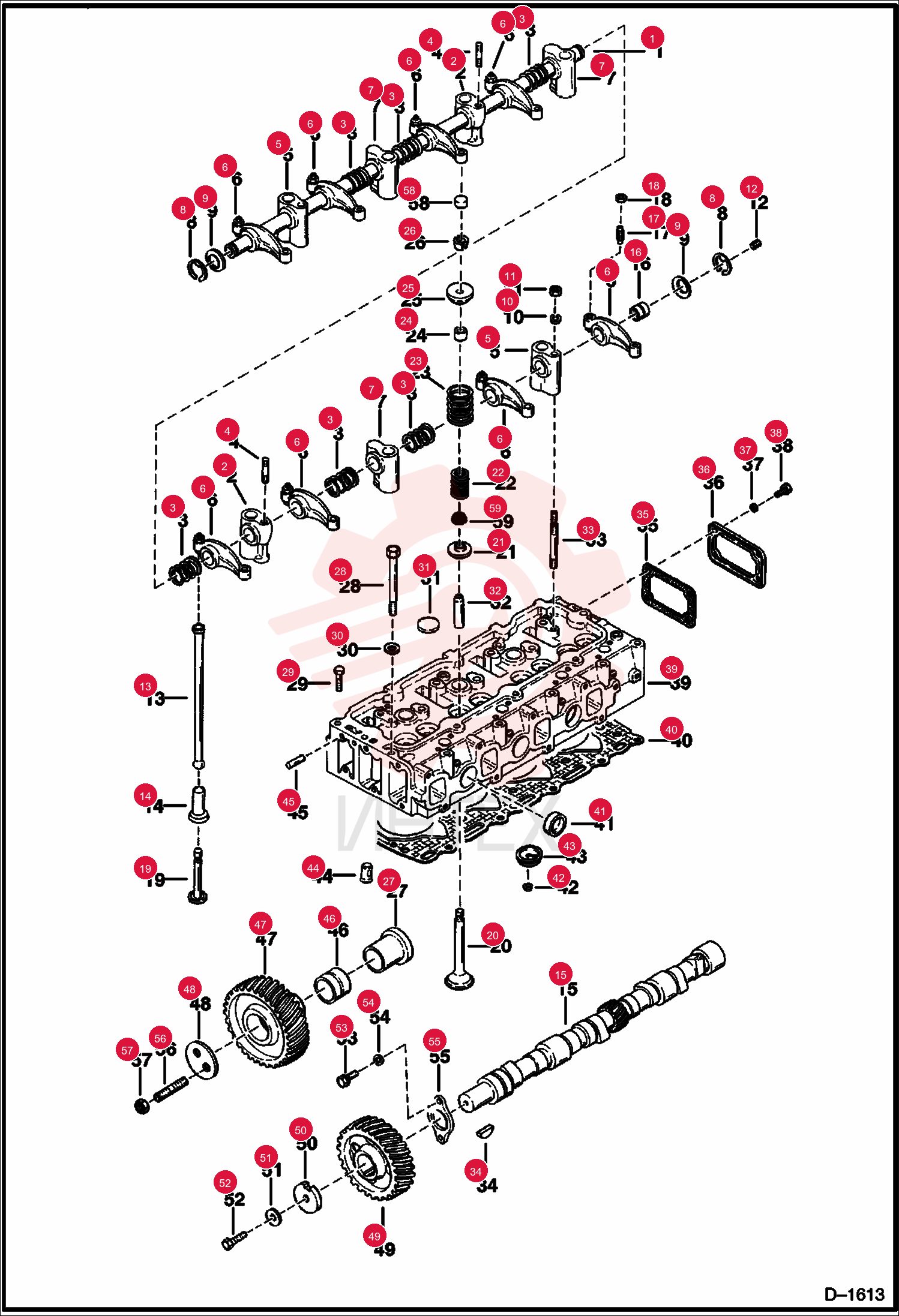

SHAFT ASSEMBLY 6599227 (2)

SHAFT ASSEMBLY 6599227 (2)

SHAFT ASSEMBLY 6599227 (2)

1 6599227

  • 6599227 - SHAFT ASSEMBLY
  • rocker assy.

2 6630230

  • 6630230 - BRACKET

3 6599225

  • 6599225 - LEVER
  • NLA - rocker - Was 6599255

4 6599229

  • 6599229 - BRACKET

5 799119

  • 799119 - RING

6 2E6

  • 2E6 - WASHER

7 62D6

  • 62D6 - NUT HEX FINISHED GR5

8 3490714

  • 3490714 - PLUG

9 6599231

  • 6599231 - PUSH ROD

10 6599189

  • 6599189 - TAPPET

11 6599188

  • 6599188 - CAMSHAFT

12 998287

  • 998287 - BUSHING
  • Was 6510375

13 997943

  • 997943 - ADJUSTER

14 8D5

  • 8D5 - NUT

15 6599186

  • 6599186 - VALVE
  • EXHAUST
  • NLA - Exhaust - Was 6599186

16 997951

  • 997951 - SEAT

17 6599222

  • 6599222 - SPRING

18 6599224

  • 6599224 - DEFLECTOR

19 6599221

  • 6599221 - WASHER

20 6599180

  • 6599180 - KEEPER

21 6599187

  • 6599187 - HUB

22 18C894

  • 18C894 - SCREW

23 6599166

  • 6599166 - PLUG
  • Water - 25mm - Was 997958B NLA - Was 6599166

24 6J606

  • 6J606 - KEY
  • WOODRUFF
  • Was 6599178

25 6599199

  • 6599199 - GASKET

26 23E5

  • 23E5 - L WASHER
  • Was 2E000005B

27 18C510

  • 18C510 - BOLT

28 6599167

  • 6599167 - PLUG
  • Water - 35mm

29 997958

  • 997958 - DOWEL
  • retainer

30 6599678

  • 6599678 - CAP
  • seal

31 6599233

  • 6599233 - PLATE

32 6599234

  • 6599234 - GEAR

33 6599259

  • 6599259 - WASHER

34 18C822

  • 18C822 - SCREW

35 18C510

  • 18C510 - BOLT

36 23E5

  • 23E5 - L WASHER
  • Was 2E000005B

37 6599235

  • 6599235 - PLATE

38 62D5

  • 62D5 - NUT
