Bobcat
/
2000
/

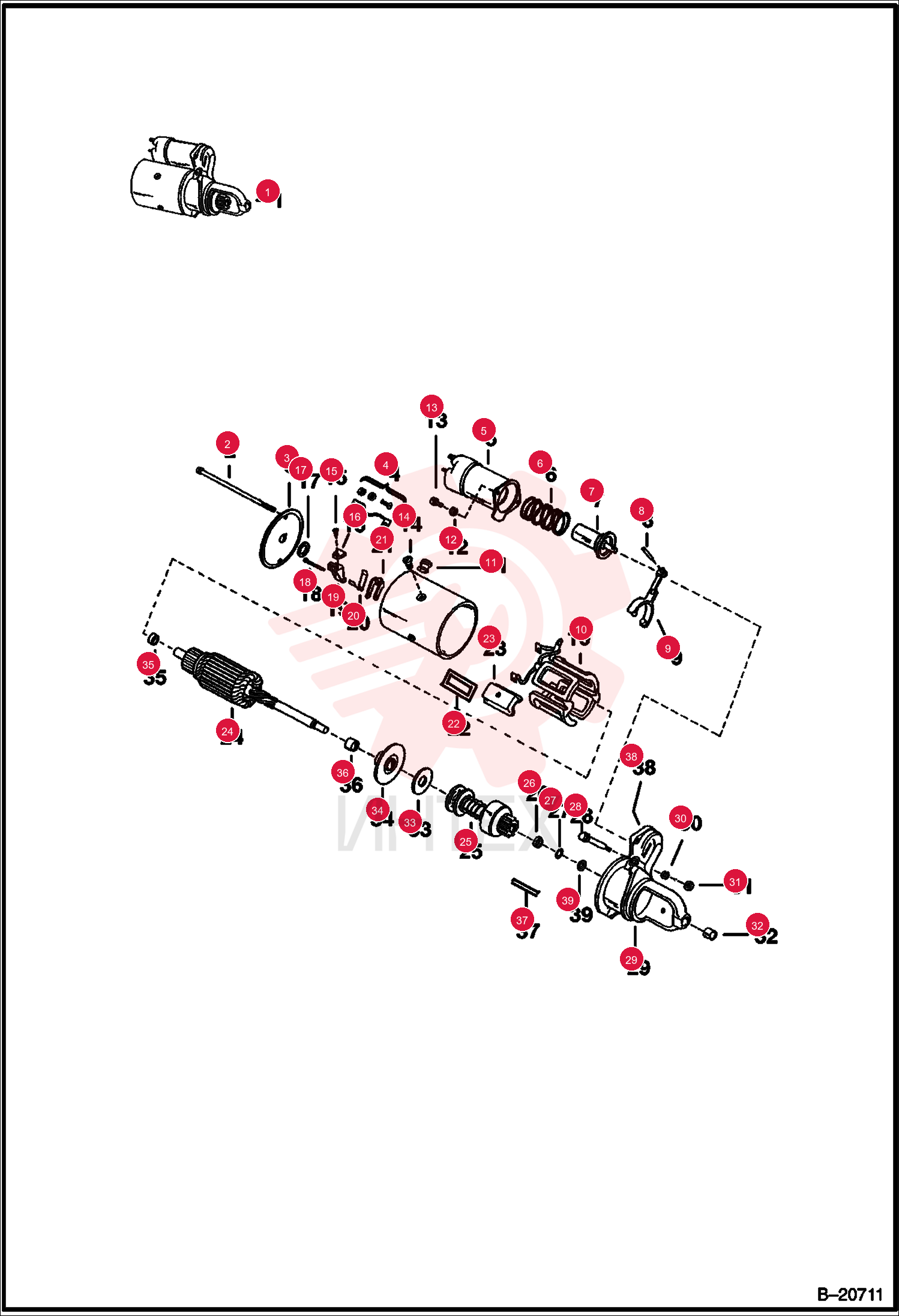

STARTER 6630181REM (2)

STARTER 6630181REM (2)

STARTER 6630181REM (2)

1 6630181REM

  • 6630181REM - STARTER
  • remanufactured

2 6630404

  • 6630404 - BOLT
  • thru

3 6511627

  • 6511627 - HOLDER
  • brush support

4 6599449

  • 6599449 - SOLENOID

5 888968

  • 888968 - SPRING
  • Was 906910B

6 6658903

  • 6658903 - PLUNGER
  • Was 6630417

7 896126

  • 896126 - LEVER

8 6630407

  • 6630407 - FIELDCOIL
  • field - 4 Coils

9 23E4

  • 23E4 - WASHER

10 859377

  • 859377 - SCREW

11 6630403

  • 6630403 - BRUSH

12 6630402

  • 6630402 - BR HOLDER
  • brush

13 6630406

  • 6630406 - BR SPRING

14 880603

  • 880603 - HOLDER
  • brush - Was 6511626

15 6511629

  • 6511629 - ARMATURE

16 6512872

  • 6512872 - DRIVE

17 942142

  • 942142 - SNAP RING

18 884576

  • 884576 - BOLT.

19 6630418

  • 6630418 - HOUSING
  • drive - W/Ref. 32

20 860669

  • 860669 - BUSHING

21 874935

  • 874935 - BUSHING

22 6598742

  • 6598742 - BUSHING

23 6630405

  • 6630405 - PIN
  • DOWEL
