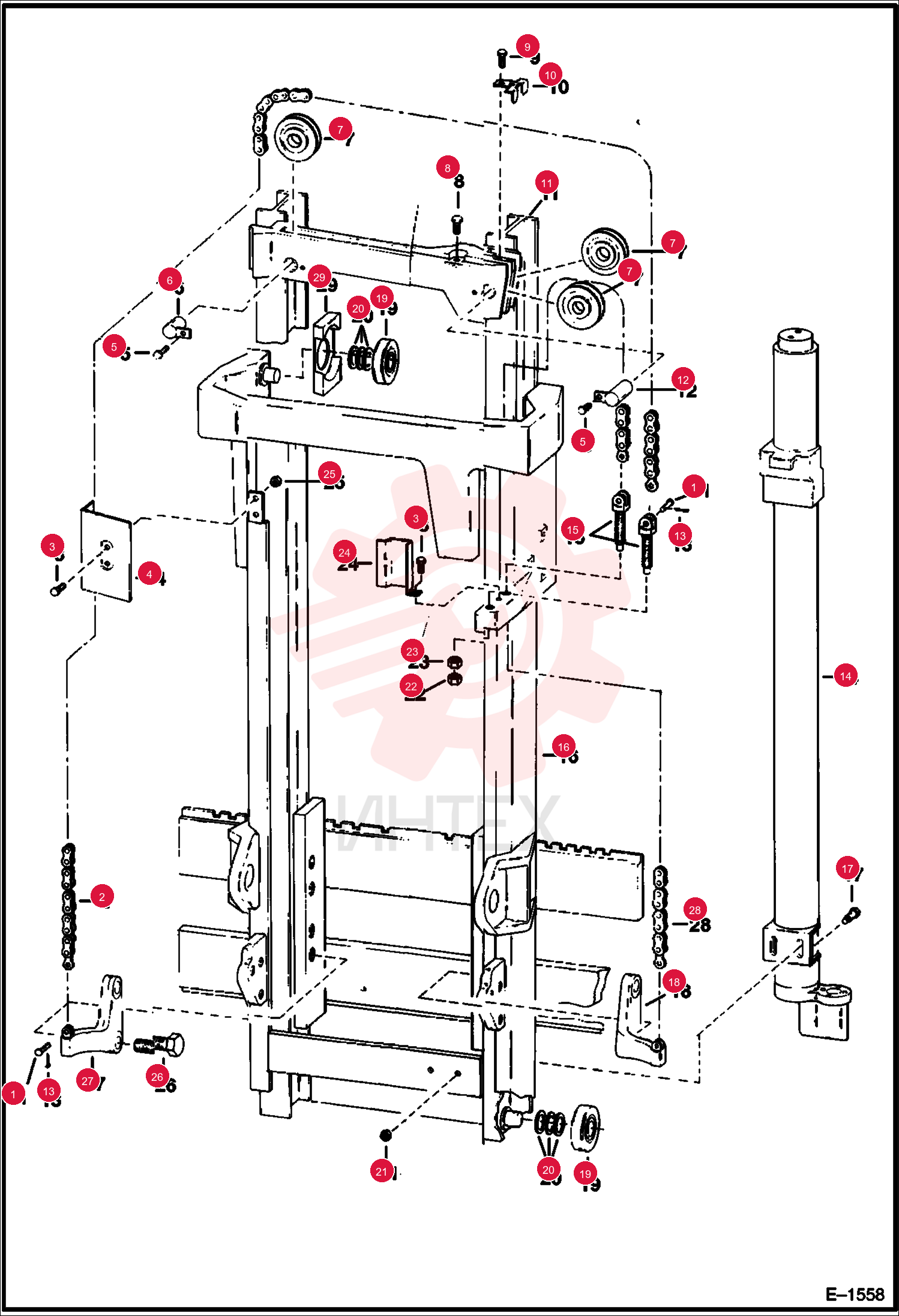

PIN 2366345

PIN 2366345

PIN 2366345

1 2366345

  • 2366345 - PIN

2 2373831

  • 2373831 - GUARD

3 4CM816

  • 4CM816 - SCREW HEX HD 8.8
  • Was 1CM816

4 2371108

  • 2371108 - SHAFT

5 2368341

  • 2368341 - SHEAVE

6 4CM1230

  • 4CM1230 - SCREW
  • Was 1CM1230

7 4CM820

  • 4CM820 - SCREW HEX HD 8.8
  • Was 1CM820

8 2371112

  • 2371112 - BRACKET

9 2371095

  • 2371095 - RAIL
  • inner - 10 ft.

10 2371102

  • 2371102 - RAIL
  • inner - 14 ft.

11 2371105

  • 2371105 - SHAFT

12 2359552

  • 2359552 - PIN
  • cotter

13 2370918

  • 2370918 - CYLINDER
  • 10 FT.

14 2382188

  • 2382188 - CYLINDER
  • 14 FT. 14 ft. - Was 2370925B

15 2371152

  • 2371152 - RAIL
  • outer - 14 ft.

16 2371145

  • 2371145 - RAIL
  • outer - 10 ft.

17 2363832

  • 2363832 - BOLT

18 2371162

  • 2371162 - ANCHOR
  • R.H.

19 2357723

  • 2357723 - BRG

20 2359551

  • 2359551 - SHIM

21 4DM12

  • 4DM12 - NUT HEX
  • Was 1DM12

22 1DM14

  • 1DM14 - NUT

23 2366344

  • 2366344 - NUT

24 2371468

  • 2371468 - GUARD

25 2371164

  • 2371164 - ANCHOR
  • L.H.

26 2368782

  • 2368782 - GUARD
