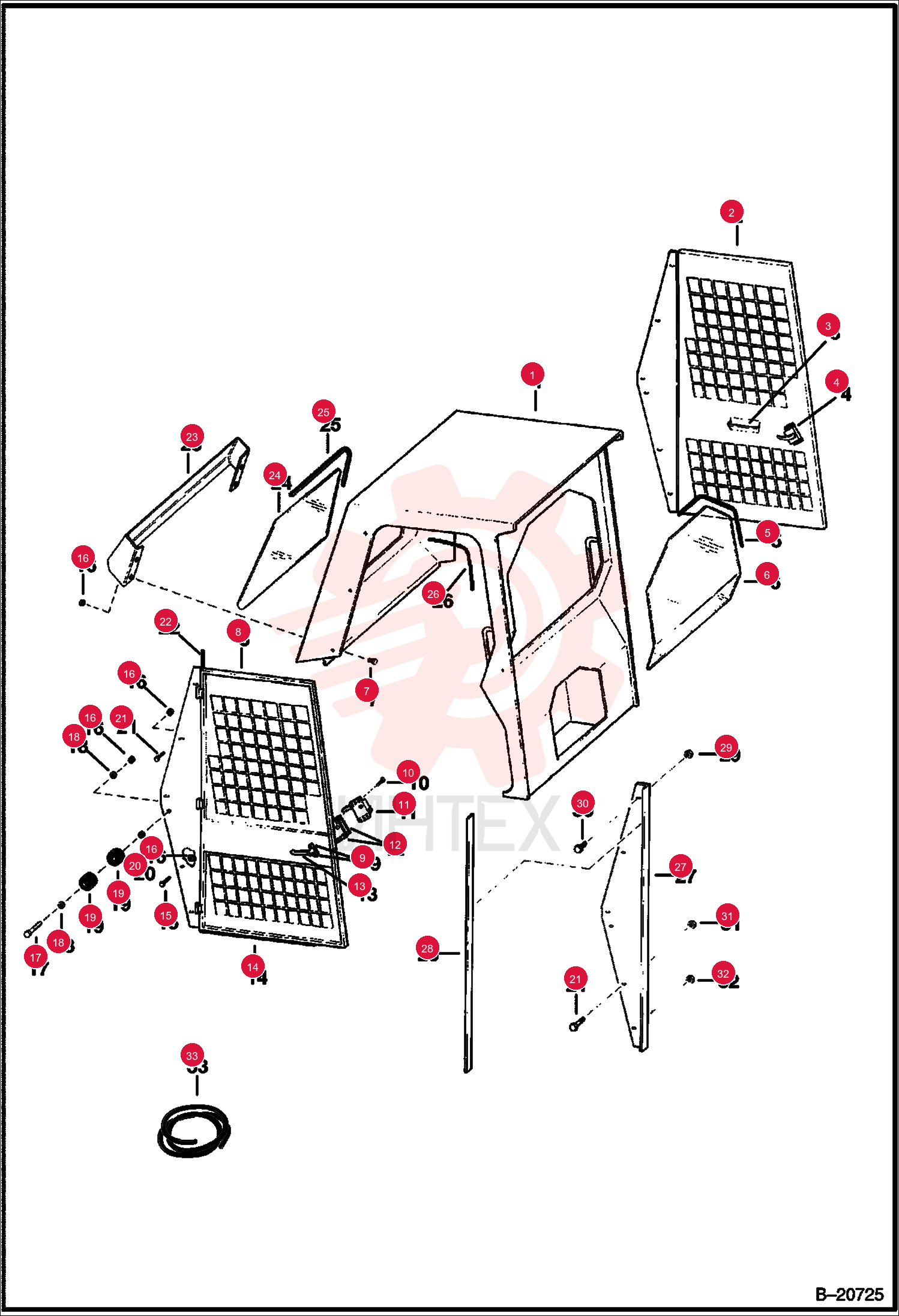

ROPS O/H 6561437 (2)

ROPS O/H 6561437 (2)

ROPS O/H 6561437 (2)

1 6561437

  • 6561437 - ROPS O/H
  • operator

2 6584325

  • 6584325 - DOOR ASSEMBLY
  • L.H.

3 6583990

  • 6583990 - STRIP RUB
  • rubber

4 6611678

  • 6611678 - LATCH LH
  • door - L.H.

5 6561214

  • 6561214 - WINDOW
  • front

6 17C612

  • 17C612 - SCREW HEX CAP

7 6584322

  • 6584322 - DOOR ASSEMBLY
  • R.H.

8 32G1012

  • 32G1012 - SCREW

9 18G1012

  • 18G1012 - SCREW

10 6611679

  • 6611679 - LATCH RH
  • door - R.H.

11 6583992

  • 6583992 - SPACER
  • latch

12 31C610

  • 31C610 - BOLT

13 83D6

  • 83D6 - LKNUT HEX FLG GR8

14 1C636

  • 1C636 - SCREW HEX CAP??????? 3/8 X 2 1/4 NC
  • cap

15 25E17

  • 25E17 - WASHER FLAT PLAIN

16 6584225

  • 6584225 - BUMPER
  • rubber

17 61D6

  • 61D6 - NUT HEX FINISHED GR5

18 84G3712

  • 84G3712 - SCREW THD ROLLING TT

19 6584359

  • 6584359 - DEFLECTOR

20 6561234

  • 6561234 - WINDOW
  • rear

21 6561563

  • 6561563 - SEAL
  • window

22 6630422

  • 6630422 - SEAL
  • BULK
  • bulk - sold per foot

23 6529535

  • 6529535 - PLATE L.H
  • L.H.

24 6529534

  • 6529534 - PLATE R.H
  • R.H.

25 6630422

  • 6630422 - SEAL
  • BULK
  • 55'' (1397 mm) - Was 6529536

26 6519524

  • 6519524 - NUT FLANG
  • lock

27 35C610

  • 35C610 - BOLT 5

28 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

29 84G3710

  • 84G3710 - SCREW

30 6514301

  • 6514301 - SEAL
  • BULK/FT
  • window - bulk - sold per foot - Was 6561562
