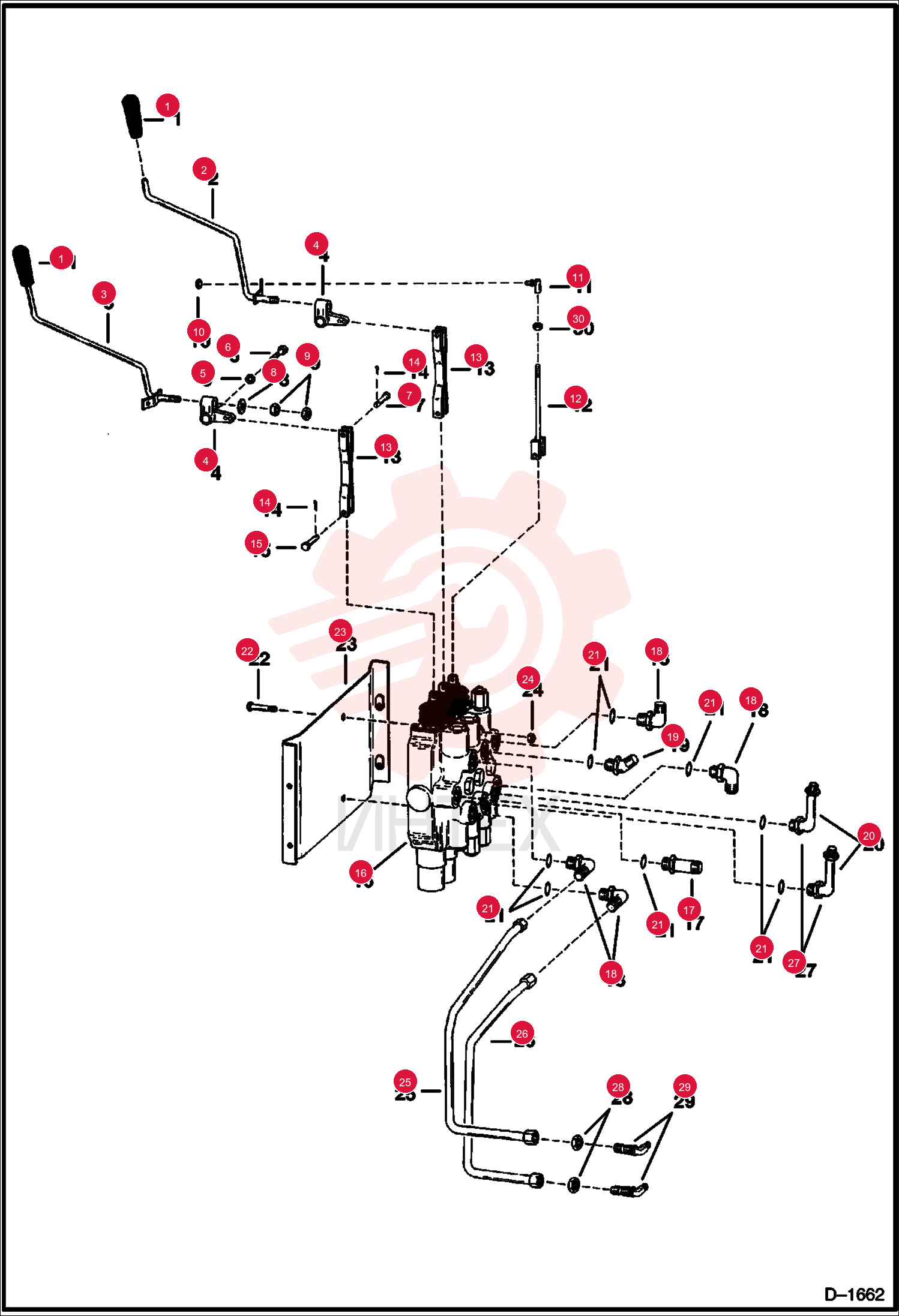

LEVER 6561788 (3)

LEVER 6561788 (3)

LEVER 6561788 (3)

1 6561788

  • 6561788 - LEVER

2 6561839

  • 6561839 - LEVER

3 6591949

  • 6591949 - CON LEVER
  • block

4 25E16

  • 25E16 - WASHER FLAT PLAIN

5 17C510

  • 17C510 - BOLT

6 6560872

  • 6560872 - PIN

7 6599359

  • 6599359 - WASHER

8 61D8

  • 61D8 - NUT 5

9 86D5

  • 86D5 - NUT

10 6512356

  • 6512356 - JOINT

11 6584990

  • 6584990 - LINK ASSEMBLY

12 6584989

  • 6584989 - STRAP
  • valve

13 1F308

  • 1F308 - PIN
  • COTTER

14 1304227

  • 1304227 - PIN

15 6592120

  • 6592120 - VALVE

16 16K7

  • 16K7 - FITTING
  • W/Ref. 21

17 17K7

  • 17K7 - ELBOW
  • W/Ref. 21

18 18K7

  • 18K7 - FITTING
  • W/Ref. 21

19 6584055

  • 6584055 - ADAPTER

20 79K10

  • 79K10 - O RING 10

21 17C560

  • 17C560 - BOLT

22 6584993

  • 6584993 - MOUNT ASSEMBLY
  • valve

23 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

24 6585911

  • 6585911 - TUBE

25 6585912

  • 6585912 - TUBE

26 6584434

  • 6584434 - TUBE

27 15K7

  • 15K7 - FITTING
  • W/Ref. 21

28 86F7

  • 86F7 - NUT 5

29 88F7

  • 88F7 - ELBOW

30 8D5

  • 8D5 - NUT
