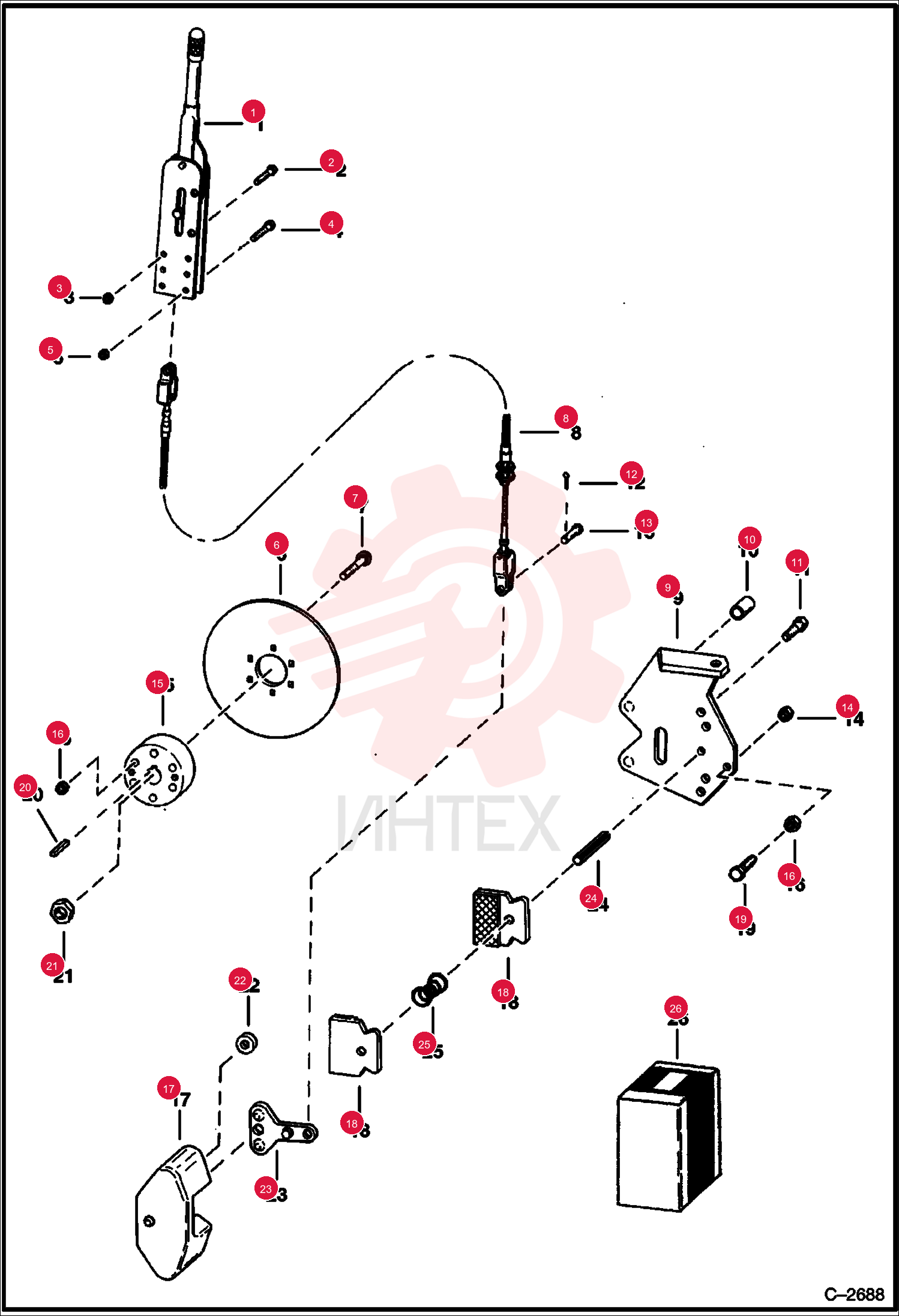

LEVER 6584226 (1)

LEVER 6584226 (1)

LEVER 6584226 (1)

1 6584226

  • 6584226 - LEVER

2 17C628

  • 17C628 - BOLT

3 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

4 17C524

  • 17C524 - BOLT

5 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

6 6584046

  • 6584046 - DISC

7 6584048

  • 6584048 - BOLT

8 6583970

  • 6583970 - CABLE

9 6584364

  • 6584364 - MOUNT

10 6584145

  • 6584145 - BUSHING

11 17C720

  • 17C720 - BOLT

12 1F208

  • 1F208 - PIN

13 2F5062

  • 2F5062 - PIN

14 7D6

  • 7D6 - NUT

15 6584047

  • 6584047 - HUB

16 61D6

  • 61D6 - NUT HEX FINISHED GR5

17 6598801

  • 6598801 - PAD
  • BRAKE

18 17C644

  • 17C644 - BOLT

19 6584119

  • 6584119 - NUT

20 6598761

  • 6598761 - INSERT

21 6598483

  • 6598483 - LEVER

22 14J3724

  • 14J3724 - PIN

23 6584363

  • 6584363 - SPRING
  • compression
