Bobcat
/
319.0
/

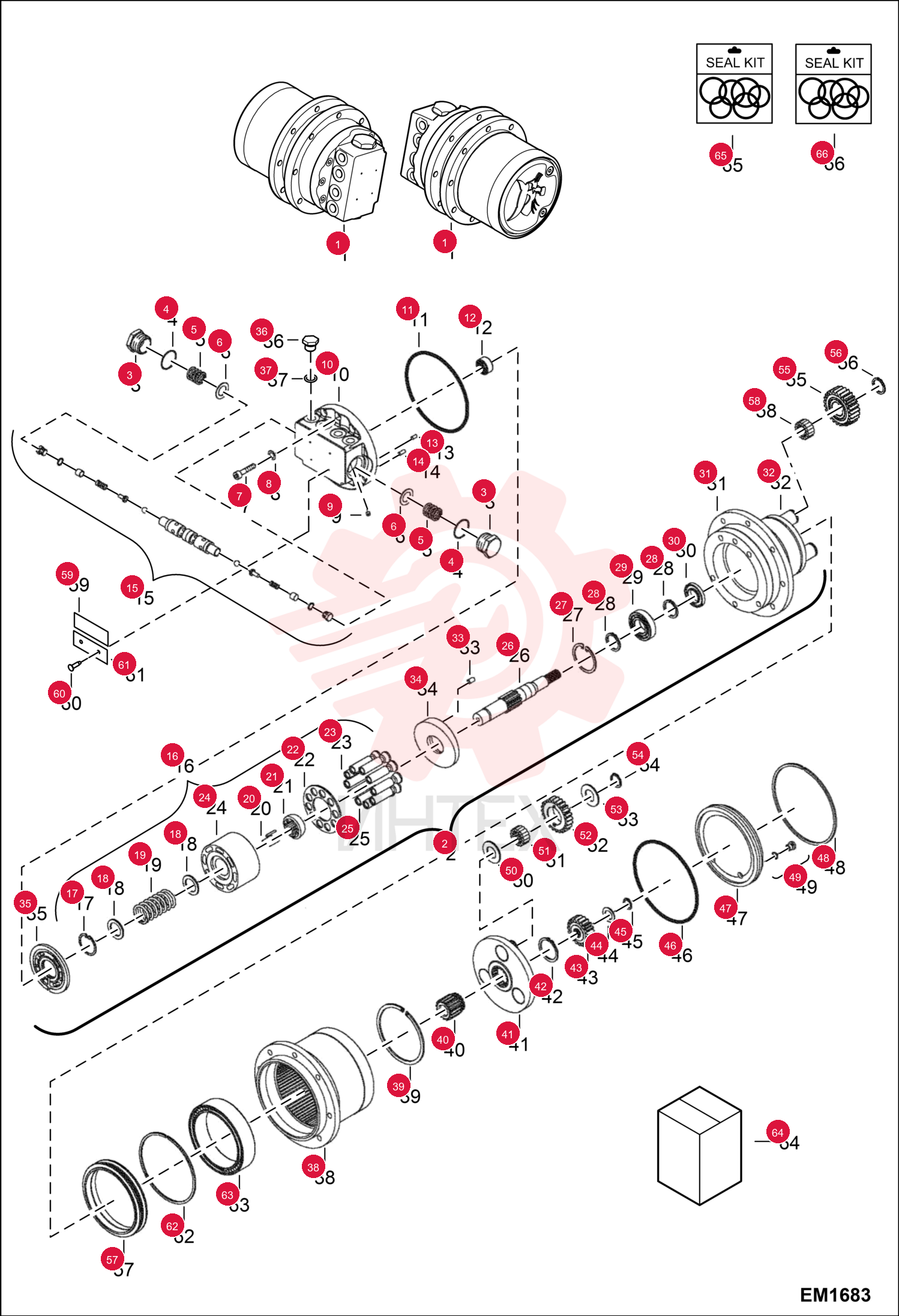

MOTOR, DRIVE 6685976

MOTOR, DRIVE 6685976

MOTOR, DRIVE 6685976

1 6685976

  • 6685976 - MOTOR
  • DRIVE
  • W/gear drive - W/Ref. 2-61

2 7000423

  • 7000423 - MOTOR
  • W/O gear drive - W/Ref. 3-37 - Was 6979523

3 6667783

  • 6667783 - PLUG
  • Was 6688104

4 6667784

  • 6667784 - SPRING
  • Was 6688105

5 6688108

  • 6688108 - BOLT
  • Was 6688980

6 6667788

  • 6667788 - WASHER

7 7000436

  • 7000436 - REGULATOR

8 7000424

  • 7000424 - COVER MOTOR

9 6667779

  • 6667779 - O-RING

10 6667781

  • 6667781 - BEARING

11 6667782

  • 6667782 - DOWEL PIN

12 6688111

  • 6688111 - PIN

13 6688115

  • 6688115 - VALVE

14 6667778

  • 6667778 - PISTON
  • MOTOR TRAVEL
  • W/Ref. 17-25 - Was 6688112

15 7000433

  • 7000433 - RING RETAINING

16 7000427

  • 7000427 - WASHER

17 7000426

  • 7000426 - SPRING PUMPING DRUM

18 7000430

  • 7000430 - SUPPORT PISTON

19 7000428

  • 7000428 - PLATE PISTON

20 7000434

  • 7000434 - PISTON

21 7000425

  • 7000425 - DRUM PUMPING

22 7000429

  • 7000429 - BLOCK SLIDING

23 6667762

  • 6667762 - SNAP RING

24 6667756

  • 6667756 - SNAP RING

25 6688114

  • 6688114 - BEARING

26 6667774

  • 6667774 - SEAL

27 7000437

  • 7000437 - HUB

28 7000418

  • 7000418 - PIN

29 6671913

  • 6671913 - PIN

30 7010970

  • 7010970 - PLATE
  • SWASH

31 6693118

  • 6693118 - PLASTIC PLUG 9/16"UNF

32 6692863

  • 6692863 - ORING

33 7000402

  • 7000402 - HOUSING OUTPUT
  • Was 6979521

34 7000407

  • 7000407 - ACCESSORY SEEGER D.100
  • Was 6979536

35 7000416

  • 7000416 - GEAR SUN
  • Was 6979528

36 7015442

  • 7015442 - CARRIER
  • Was 6979527

37 7000422

  • 7000422 - RING EXTERNAL SNAP
  • Was 6979534

38 7015440

  • 7015440 - GEAR
  • SUN
  • Was 6979525

39 6688119

  • 6688119 - KIT
  • Was 6979525

40 6688118

  • 6688118 - RING

41 7000410

  • 7000410 - ORING
  • Was 6979539

42 7000403

  • 7000403 - COVER END
  • Was 6979522

43 7000409

  • 7000409 - RETAINER INT. BR130
  • Was 6979538

44 6676161

  • 6676161 - PLUG
  • W/ O-ring

45 7000420

  • 7000420 - WASHER
  • Was 6979532

46 6667763

  • 6667763 - BEARING

47 7015443

  • 7015443 - GEAR
  • Was 6979529

48 7000419

  • 7000419 - WASHER
  • Was 6979531

49 7000421

  • 7000421 - RING EXTERNAL SNAP
  • Was 6979533

50 7000404

  • 7000404 - GEAR PLANETARY
  • Was 6979524

51 7000406

  • 7000406 - RING EXTERNAL SNAP
  • Was 6979535

52 7000411

  • 7000411 - SEAL DOUBLE FRONT
  • Was 6979540

53 7000412

  • 7000412 - BEARING NEEDLE

54 7000432

  • 7000432 - RIVET SCREW

55 7000431

  • 7000431 - LABEL

56 7000408

  • 7000408 - RING INTERNAL SNAP BR125
  • Was 6979537

57 7000413

  • 7000413 - BEARING BALL
  • Was 6979542

58 7000439

  • 7000439 - KIT MAJOR REBUILT
  • major rebuild - W/Ref. 4
  • 11
  • 30
  • 37
  • 46
  • 57

59 7000438

  • 7000438 - KIT
  • BASE SEAL
  • W/Ref. 4
  • 11
  • 30
  • 37
  • 46

60 7310948

  • 7310948 - KIT PLUG
