Bobcat
/
319.0
/

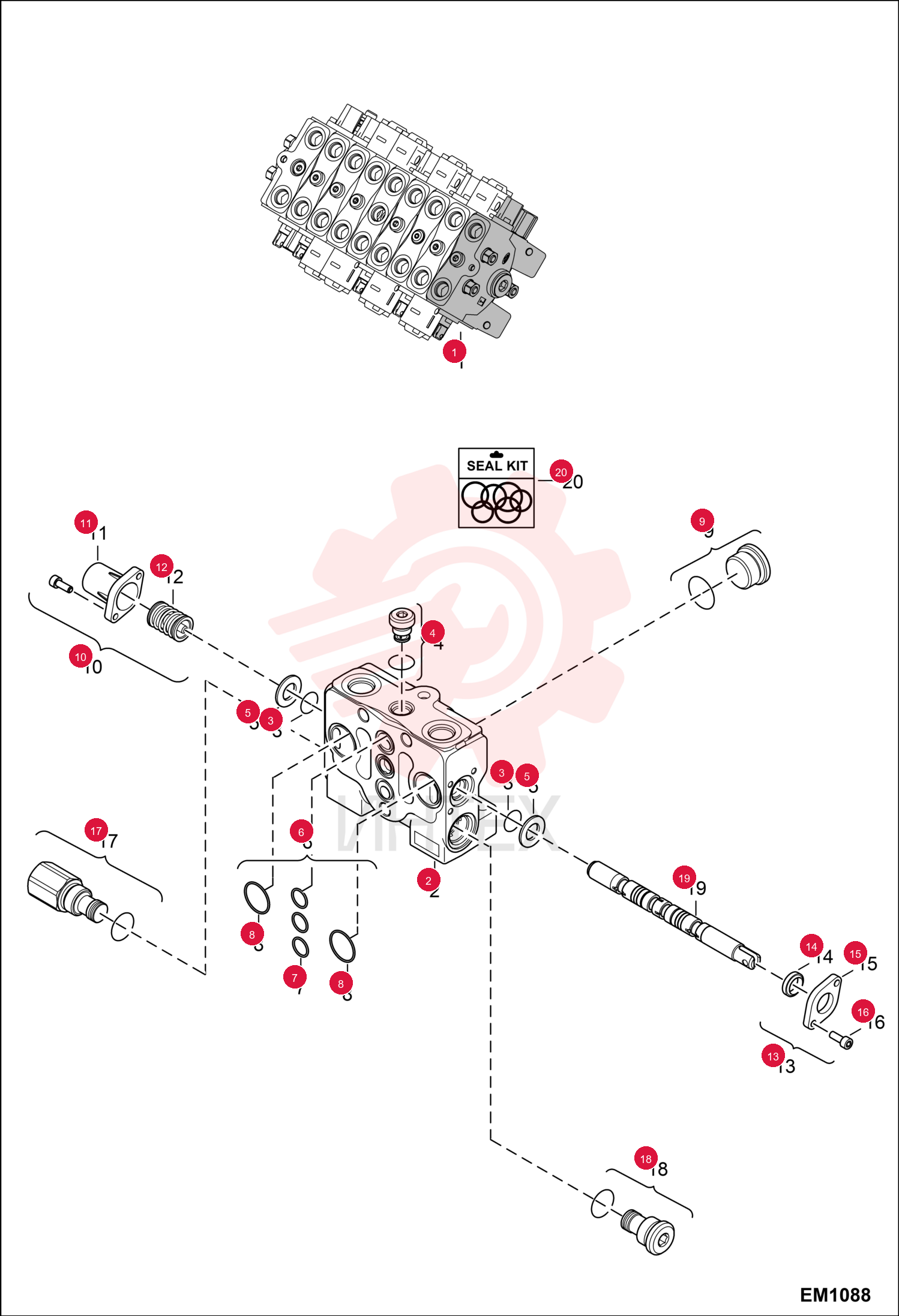

VALVE

VALVE

VALVE

1 6979437

  • 6979437 - VALVE
  • W/Ref. 2-12

2 6693135

  • 6693135 - KIT
  • W/Ref. 3-9

3 6680093

  • 6680093 - PLUG ASSEMBLY

4 6680095

  • 6680095 - WASHER

5 6680094

  • 6680094 - O-RING

6 6680066

  • 6680066 - KIT
  • SEAL
  • between sections - W/Ref. 8-9

7 6680058

  • 6680058 - PLUG ASSEMBLY

8 6680068

  • 6680068 - KIT
  • CAP
  • W/Ref. 11-12

9 6679496

  • 6679496 - END CAP

10 7015356

  • 7015356 - SPRING ASSEMBLY

11 6680097

  • 6680097 - COVER
  • END
  • W/Ref. 14-16

12 6679912

  • 6679912 - SEAL

13 6679911

  • 6679911 - FLANGE

14 6680071

  • 6680071 - SCREW

15 6693139

  • 6693139 - GF/SDS100-SAE6 INLET JOINT

16 6680057

  • 6680057 - PLUG ASSEMBLY

17 6693123

  • 6693123 - H102/SDS100 320/22D BLADE SPOOL

18 6979445

  • 6979445 - SEAL KIT
