Bobcat
/
319.0
/

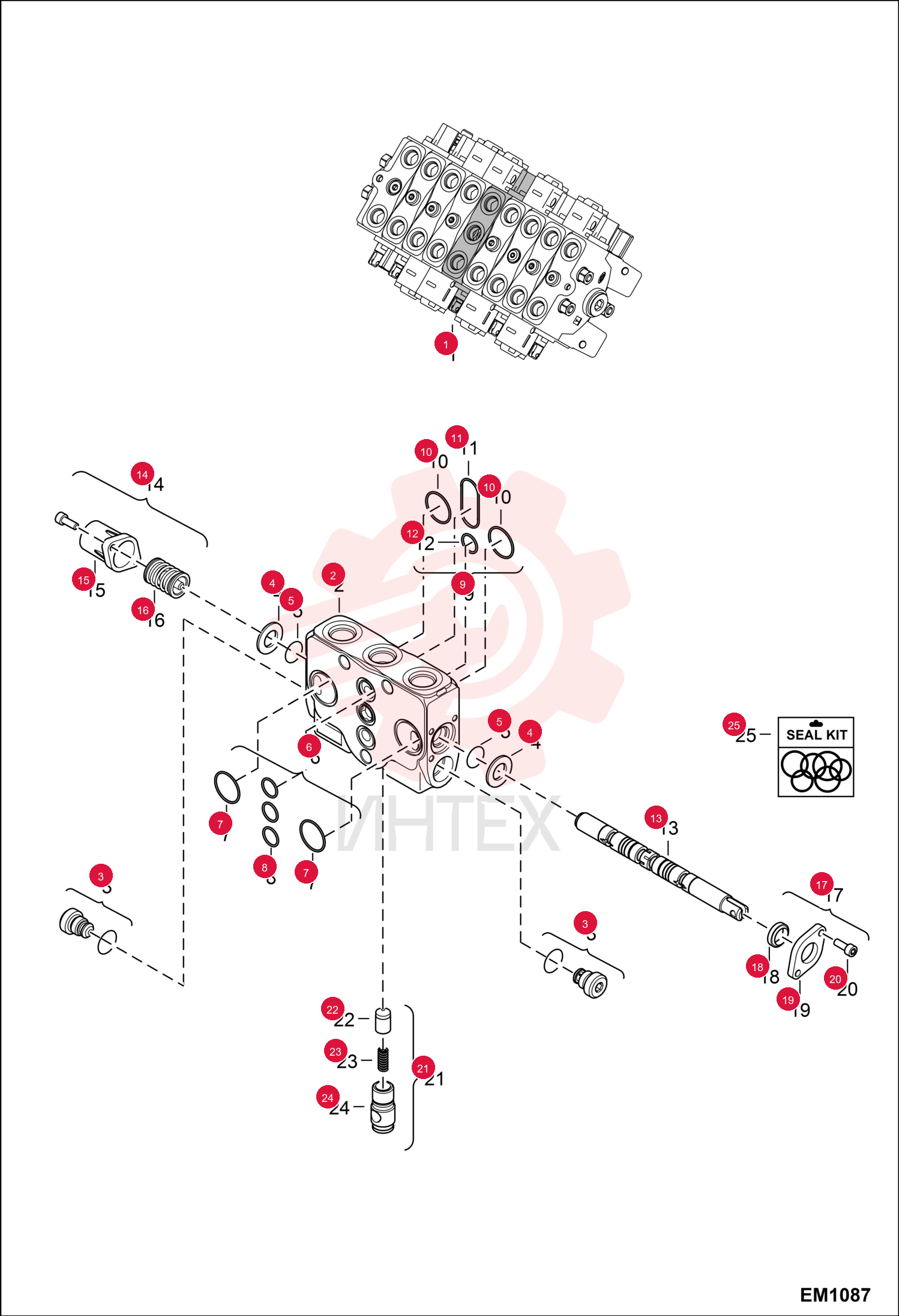

VALVE 6979433

VALVE 6979433

VALVE 6979433

1 6979433

  • 6979433 - VALVE
  • W/Ref. 2-26

2 6693133

  • 6693133 - KIT
  • W/Ref. 3-13

3 6680095

  • 6680095 - WASHER

4 6680094

  • 6680094 - O-RING

5 6680066

  • 6680066 - KIT
  • SEAL
  • between sections - W/Ref. 7-8

6 6680092

  • 6680092 - VALVE
  • LOCK LOAD

7 6680064

  • 6680064 - KIT
  • SEAL
  • between sections - W/Ref. 11-13

8 6693127

  • 6693127 - A101/SDS100 322J AUX SPOOL
  • NLA - Order Ref. 10

9 6680068

  • 6680068 - KIT
  • CAP
  • W/Ref. 15-16

10 6679496

  • 6679496 - END CAP

11 7015356

  • 7015356 - SPRING ASSEMBLY

12 6680097

  • 6680097 - COVER
  • END
  • W/Ref. 18-20

13 6679912

  • 6679912 - SEAL

14 6679911

  • 6679911 - FLANGE

15 6680071

  • 6680071 - SCREW

16 6680091

  • 6680091 - VALVE ASSY
  • W/Ref. 22-24

17 7015366

  • 7015366 - SPRING

18 7015367

  • 7015367 - PLUG

19 6979441

  • 6979441 - SEAL KIT
