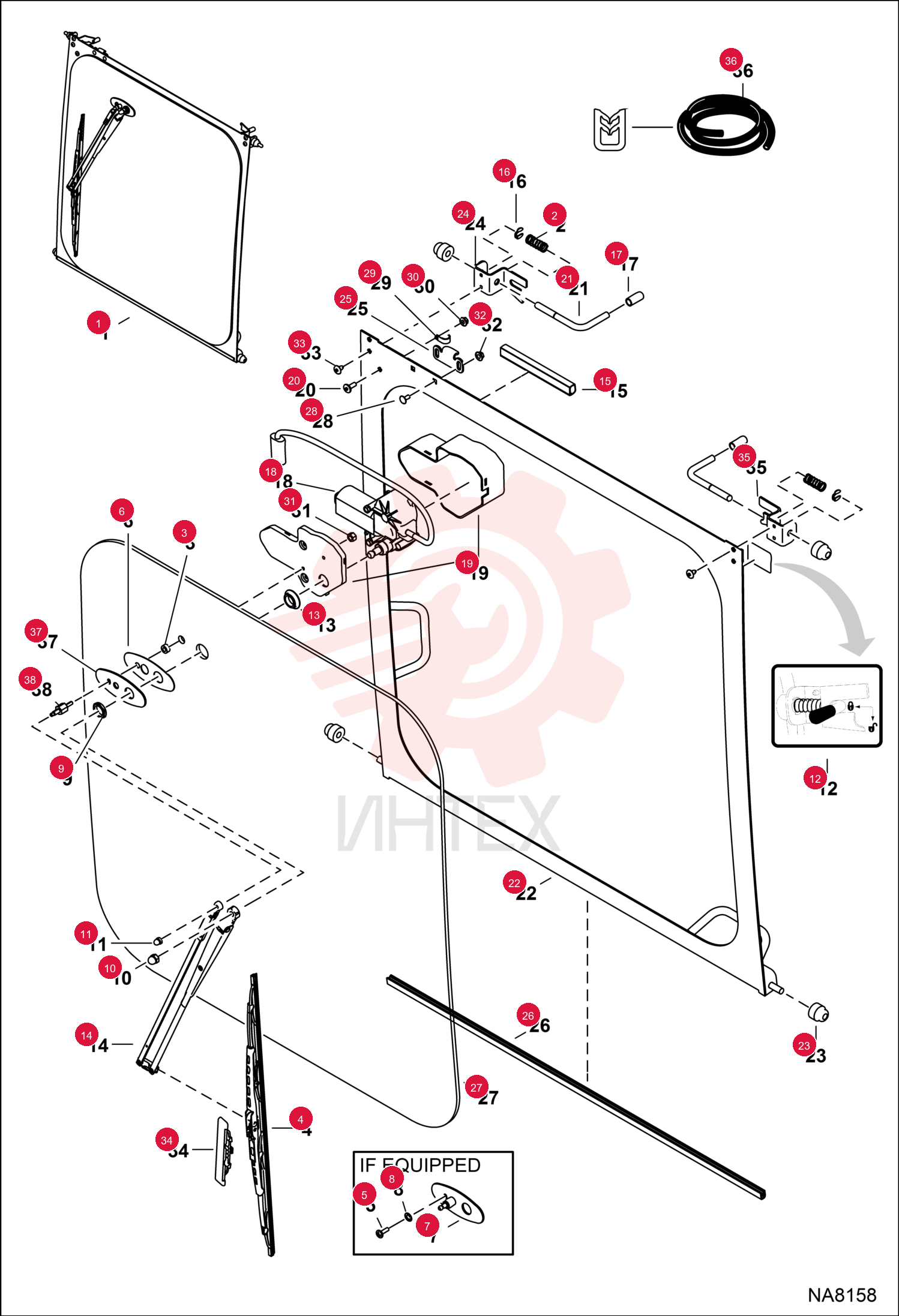

WINDOW, CAB FRONT
1 6816165
- 6816165 - WINDOW
- CAB FRONT
- W/Ref. 2-34
2 6610082
- 6610082 - SPRING
3 6664085
- 6664085 - BUSHING NYLON
4 7147359
- 7147359 - BLADE
- WIPER WINDOW
- Use W/Ref. 14 (NLA 6680180 Arm) & Ref. 7
5 7188372
- 7188372 - BLADE
- WIPER WINDOW
- Use W/Ref. 14 (7234015 Arm)
- Ref. 37 & Ref. 38
6 6677837
- 6677837 - BOLT
- Use W/Ref. 7 (6677840 Swivel) & Ref. 8 (6677841 Washer)
7 6677839
- 6677839 - GASKET
8 6677841
- 6677841 - WASHER
9 6677842
- 6677842 - NUT
10 6677843
- 6677843 - NUT
11 6677844
- 6677844 - NUT
12 7103874
- 7103874 - DECAL
13 6677847
- 6677847 - GROMMET
14 7234015
- 7234015 - ARM
- WIPER
- Use W/Ref. 4 (7188372 Blade)
- Ref. 37 & Ref. 38
15 6680971
- 6680971 - RETAINER
16 6681651
- 6681651 - RING
- RETAINER
17 6681652
- 6681652 - CAP PLUG
18 6684139
- 6684139 - MOTOR
- WIPER
19 6685140
- 6685140 - COVER
20 6803202
- 6803202 - SCREW
21 6812413
- 6812413 - PIN
22 6813028
- 6813028 - ROLLER
23 7225223
- 7225223 - BRACKET
- LATCH LH
- Was 6814423
24 7178840
- 7178840 - BRACKET
- LATCH
- Was 6816437
25 21CM616
- 21CM616 - SCREW
26 30H10
- 30H10 - CLIP
27 43DM6
- 43DM6 - NUT FLANGED HEX
28 4DM5
- 4DM5 - NUT HEXAGON M5
29 51DM6
- 51DM6 - NUT HX THDLK PREAPPL
30 6589675
- 6589675 - SCREW
31 7225224
- 7225224 - BRACKET LATCH
- RH
- Was 6814423
32 6682492
- 6682492 - EDGE TRIM BULK/FT
- bulk - sold per foot
33 7009047
- 7009047 - PLATE
- Use W/Ref. 38 (7188373 Swivel
- Plate Assy) Ref. 14 (7234015 Arm) & Ref. 4 (7188372 Blade)
34 7188373
- 7188373 - SWIVEL
- PLATE ASSY
- Use W/Ref. 11 (7234015 arm)
- Ref. 25 (7188372 blade)
- & 31 - Was 7255629
