Главная
/
Бренды
/
Bobcat
/
319.0
/

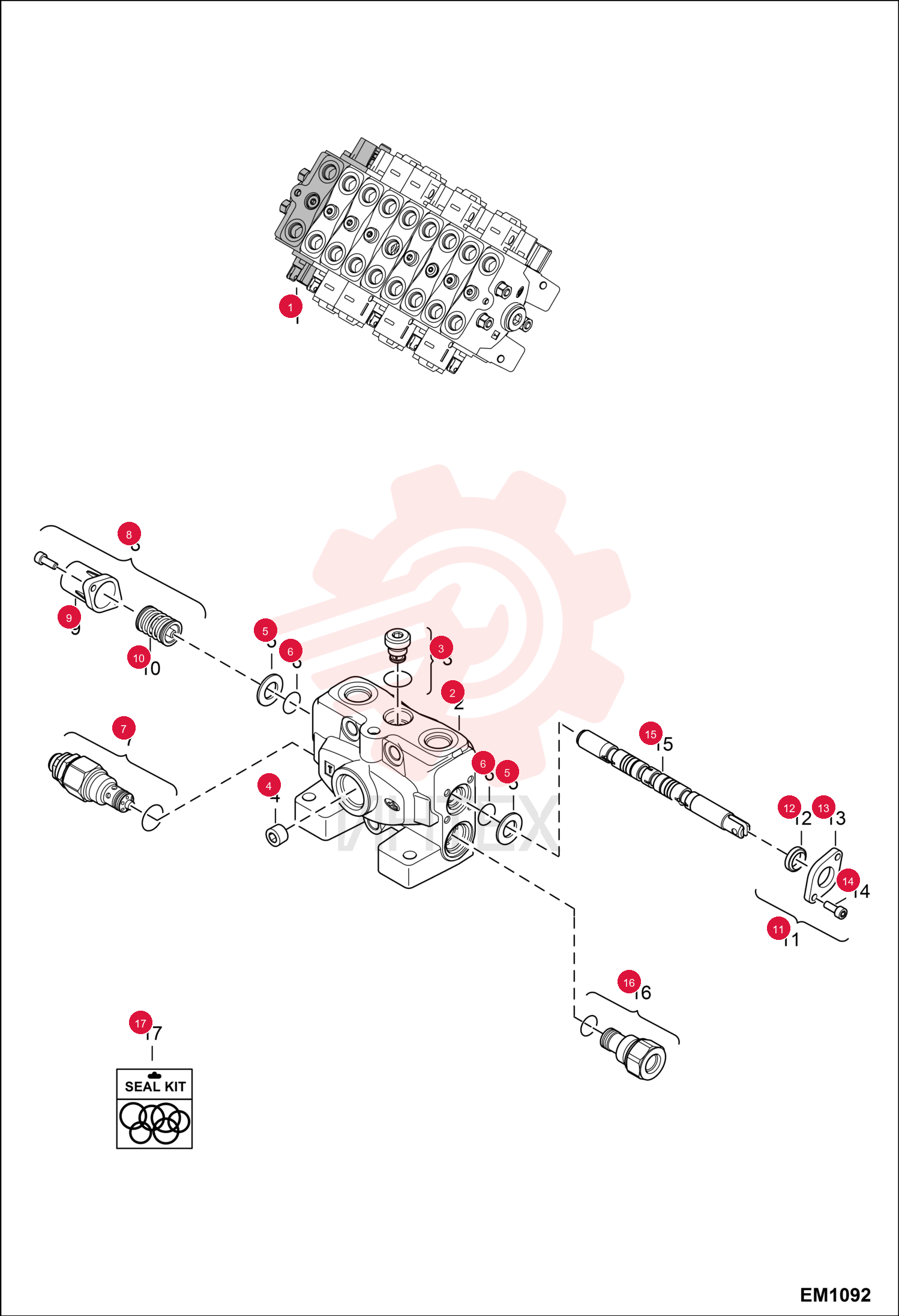

VALVE

VALVE

VALVE

1 6979430

  • 6979430 - VALVE
  • W/Ref. 2-17

2 6693134

  • 6693134 - KIT
  • W/Ref. 3-6

3 6680092

  • 6680092 - VALVE
  • LOCK LOAD

4 6979479

  • 6979479 - PLUG

5 6680095

  • 6680095 - WASHER

6 6680094

  • 6680094 - O-RING

7 6979481

  • 6979481 - VALVE

8 6680068

  • 6680068 - KIT
  • CAP
  • W/Ref. 9-10

9 6679496

  • 6679496 - END CAP

10 7015356

  • 7015356 - SPRING ASSEMBLY

11 6680097

  • 6680097 - COVER
  • END

12 6679912

  • 6679912 - SEAL

13 6679911

  • 6679911 - FLANGE

14 6680071

  • 6680071 - SCREW

15 6693122

  • 6693122 - H2H03/SDS100 SPOOL

16 6693139

  • 6693139 - GF/SDS100-SAE6 INLET JOINT

17 6979438

  • 6979438 - SEAL KIT
