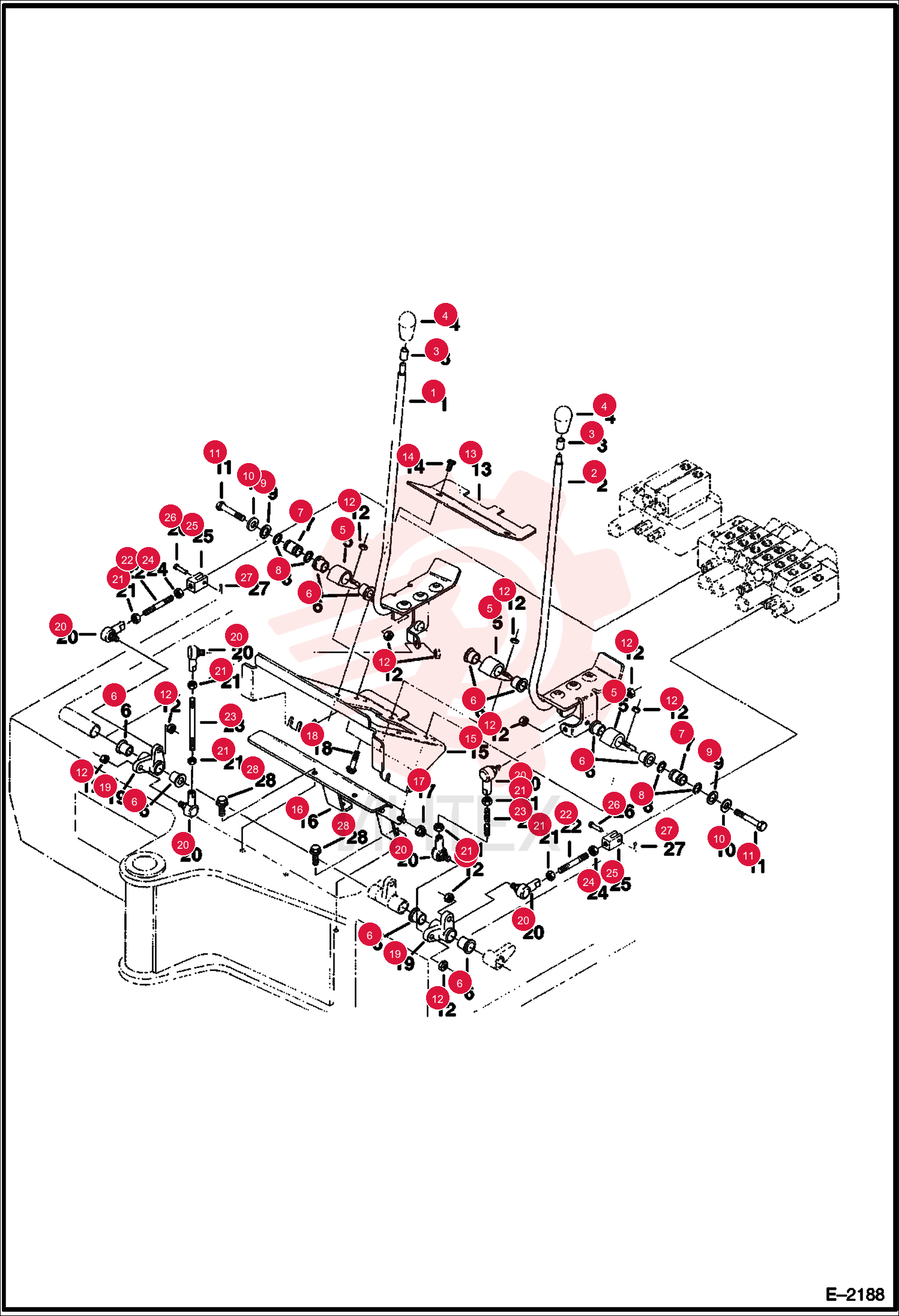

LEVER
1 6588434
- 6588434 - LEVER
- R.H. travel
2 6589983
- 6589983 - LEVER
- RH travel
3 6588431
- 6588431 - LEVER
- L.H. travel
4 6589981
- 6589981 - LEVER
- LH travel
5 6660787
- 6660787 - RING
- tolerance
6 6658184
- 6658184 - KNOB
7 6537481
- 6537481 - MOUNT
- Pivot
8 6536801
- 6536801 - BUSHING
9 6536545
- 6536545 - SLEEVE
10 58K015
- 58K015 - O-RING 10
11 6536802
- 6536802 - WASHER
12 27E6
- 27E6 - WASHER HARDEN PLAIN
13 1CM1055
- 1CM1055 - BOLT
14 49DM10
- 49DM10 - NUT
15 6801982
- 6801982 - COVER
- Was 6586646
16 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
- Was 1CM00812B
17 6586629
- 6586629 - MOUNT
18 6586628
- 6586628 - SUPPORT
19 42DM10
- 42DM10 - NUT
- Use W/6587498 Support - Ref. 16
20 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
- Use W/6586628 Support - Ref. 16
21 29CM1025
- 29CM1025 - SCREW FLGD HEX CAP
22 6536831
- 6536831 - BELLCRANK
23 6536531
- 6536531 - BRG ROD E
24 1DM10
- 1DM10 - NUT
25 6587429
- 6587429 - ROD
26 6586645
- 6586645 - ROD
27 6587431
- 6587431 - NUT
- LH thread
28 6587430
- 6587430 - YOKE
- LH thread
29 6536543
- 6536543 - PIN
- Clevis
30 1F212
- 1F212 - PIN
31 29CM1020
- 29CM1020 - SCREW HEX 10MMX20MM
