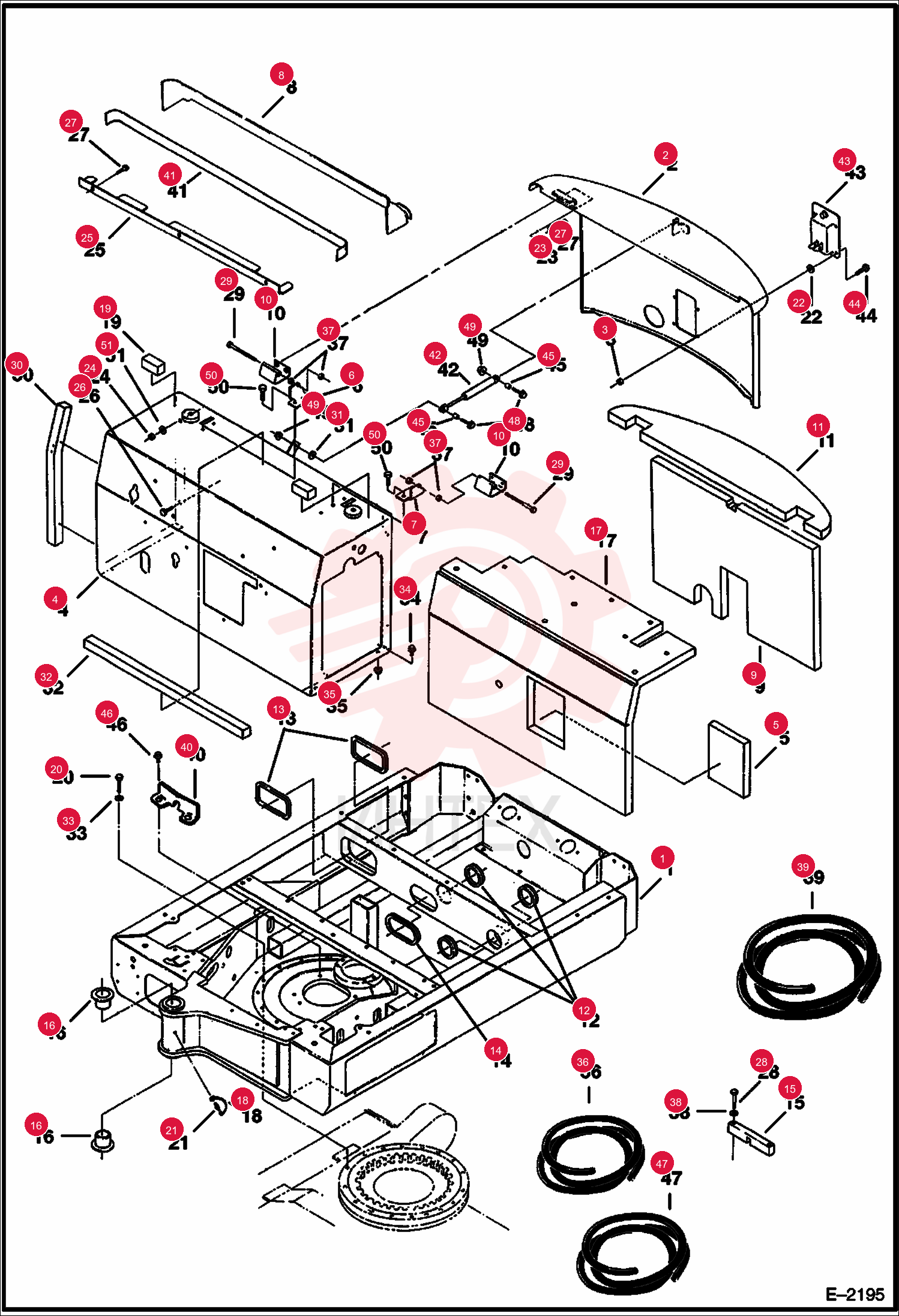

FRAME
1 6589989
- 6589989 - FRAME
- Upperstructure
2 6587936
- 6587936 - FRAME
- Upperstructure
3 6587891
- 6587891 - COVER
- Engine rear
4 49DM10
- 49DM10 - NUT
5 6589936
- 6589936 - COVER
- Engine Front - Was 6589029
6 6588339
- 6588339 - INSULATION
7 6589033
- 6589033 - ANGLE
- R.H.
8 6589032
- 6589032 - ANGLE
- L.H.
9 6588070
- 6588070 - COVER
10 6588340
- 6588340 - INSULATION
11 6588133
- 6588133 - HINGE
12 6588341
- 6588341 - INSULATION
13 6512067
- 6512067 - GROMMET
- Was 6533975
14 6538801
- 6538801 - STOPPLATE
- Swivel Joint - Use W/Swivel
15 6539897
- 6539897 - BUSHING
16 6588342
- 6588342 - INSULATION
17 6652943
- 6652943 - COVER
- grease fitting
18 10CM1045
- 10CM1045 - BOLT
19 10H25
- 10H25 - FTG GREASE STRAIGHT
20 15EM60
- 15EM60 - WASHER
21 17EM80
- 17EM80 - WASHER
22 39DM12
- 39DM12 - NUT
23 6588648
- 6588648 - SUPPORT
24 1CM1630
- 1CM1630 - BOLT
25 26GM8016
- 26GM8016 - SCREW SELF TAPPING
- Was 1CM00820B
26 1CM845
- 1CM845 - BOLT
27 1CM890
- 1CM890 - BOLT
28 1EM80
- 1EM80 - WASHER PLAIN
- Not used on later models
29 27E6
- 27E6 - WASHER HARDEN PLAIN
30 29CM1020
- 29CM1020 - SCREW HEX 10MMX20MM
31 42DM10
- 42DM10 - NUT
32 1DM8
- 1DM8 - NUT
33 6EM80
- 6EM80 - WASHER
- SPRING
34 6554274
- 6554274 - SEAL BULK/FT 9
- bulk - sold per foot
35 6588243
- 6588243 - BRACKET
- Swivel Joint - Use W/Swivel Joint 6664409
36 6662989
- 6662989 - SPRING GAS
- Gas Spring
37 6587458
- 6587458 - KEY CAP FUEL 2
- Incl. W/Ref. 43
38 6663972
- 6663972 - LATCH
39 6589675
- 6589675 - SCREW
- Use on Later Models
40 6587499
- 6587499 - SCREW
- Use on Early Models
41 6588293
- 6588293 - BUSHING
42 29CM820
- 29CM820 - SCREW FLNGE HEX CAP
43 6900669
- 6900669 - TAPE
- bulk - sold per foot - Was 6665212
44 29CM830
- 29CM830 - SCREW HEX
45 42DM8
- 42DM8 - NUT
46 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
47 1EM120
- 1EM120 - WASHER
