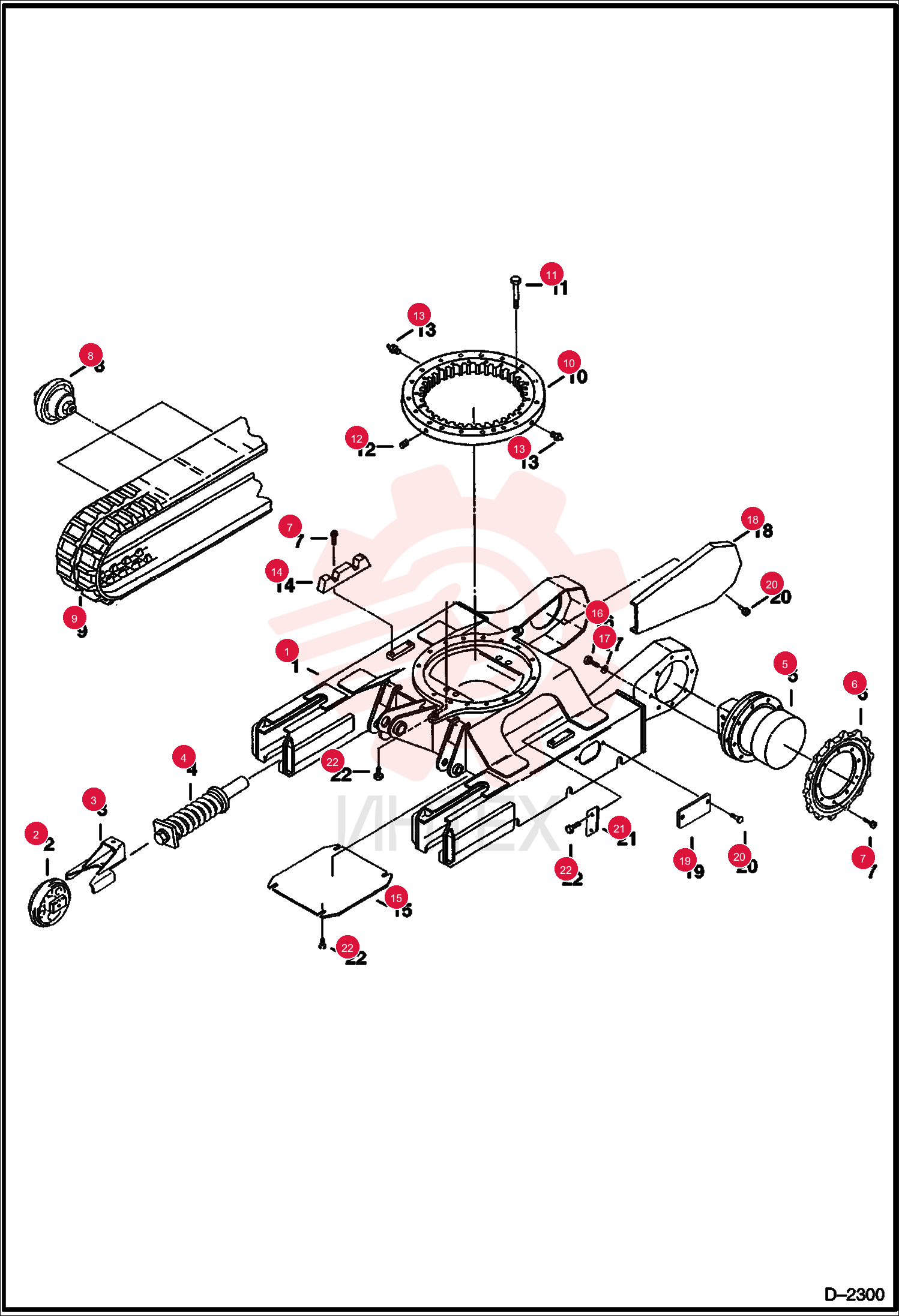

FRAME
1 6596099
- 6596099 - FRAME
2 6596099
- 6596099 - FRAME
3 6596099
- 6596099 - FRAME
4 6589009
- 6589009 - IDLER ASSEMBLY
5 6589538
- 6589538 - YOKE
6 6589499
- 6589499 - TRACK TENSIONER
- - Recoil
7 6667336
- 6667336 - MOTOR
- DRIVE HYD
- - Drive
8 6539720
- 6539720 - SPROCKET
9 3GM1025
- 3GM1025 - BOLT
10 6800510
- 6800510 - ROLLER
- TRACK
- - rack
11 6652015
- 6652015 - BEARING SWING
- (18) hole 11 mm dia
12 6652015
- 6652015 - BEARING SWING
- 110 Teeth on swing gear - W/Ref. 12 & 13 - (18) hole 11 mm dia
13 6652015
- 6652015 - BEARING SWING
- (18) hole 11 mm dia
14 7CM1245
- 7CM1245 - BOLT
15 7CM1245
- 7CM1245 - BOLT
16 7CM1245
- 7CM1245 - BOLT
17 10CM1045
- 10CM1045 - BOLT
18 10CM1045
- 10CM1045 - BOLT
19 10CM1045
- 10CM1045 - BOLT
20 6652962
- 6652962 - NLA
21 6589639
- 6589639 - PLATE
- Slide
22 6533655
- 6533655 - COVER
23 1CM1030
- 1CM1030 - BOLT
24 6EM100
- 6EM100 - WASHER
25 6589305
- 6589305 - COVER
26 6533656
- 6533656 - COVER
27 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
28 6596203
- 6596203 - COVER
29 26GM8016
- 26GM8016 - SCREW SELF TAPPING
- Self tapping
