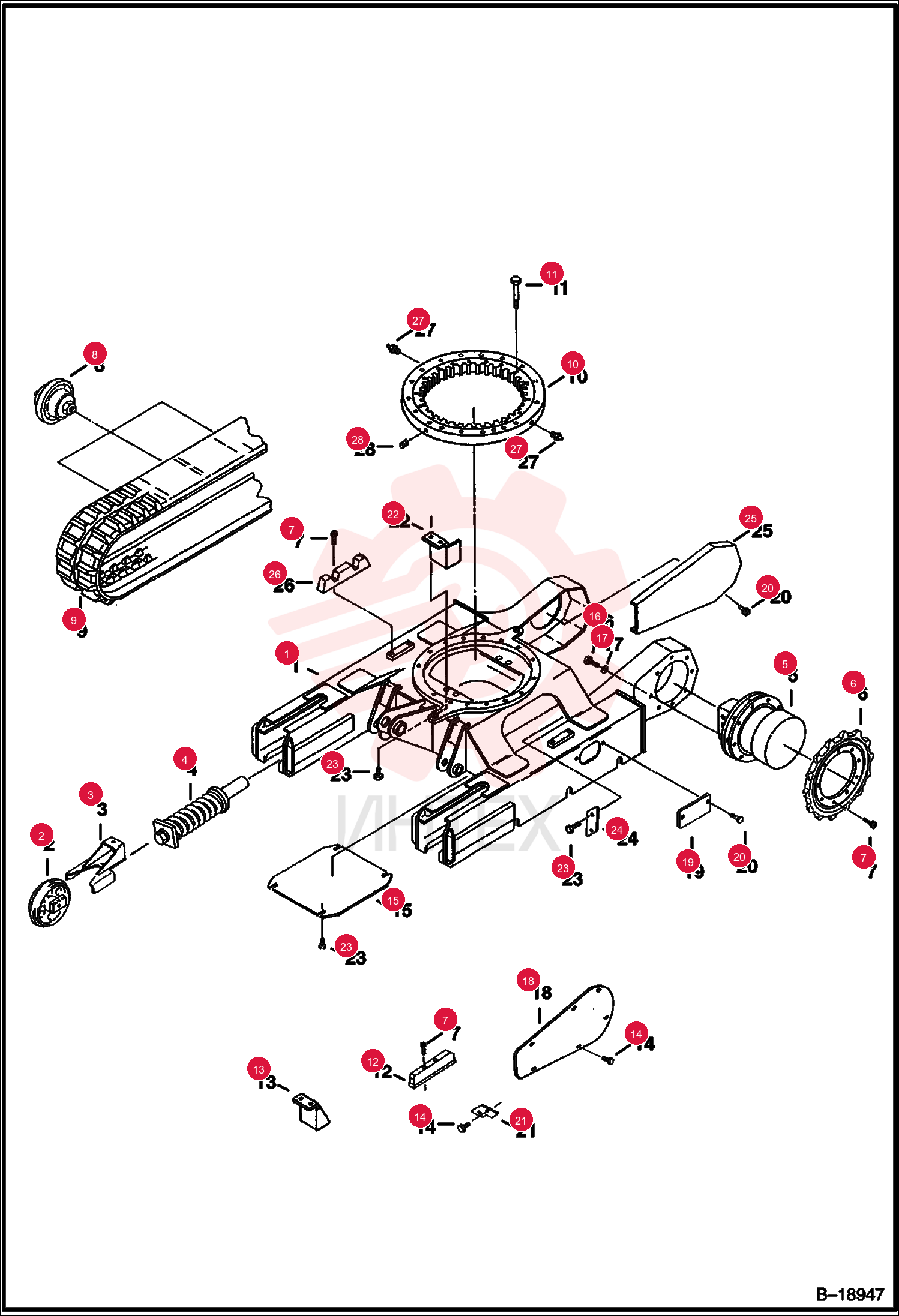

FRAME
1 6596099
- 6596099 - FRAME
- Was 6589282
2 6533626
- 6533626 - IDLER ASSEMBLY
3 6589538
- 6589538 - YOKE
- Was 6533649
4 6534880
- 6534880 - SPRING ASSEMBLY
- Recoil
5 6539720
- 6539720 - SPROCKET
6 3GM1025
- 3GM1025 - BOLT
7 6800510
- 6800510 - ROLLER
- TRACK
- Track - Was 6533654
8 6652015
- 6652015 - BEARING SWING
- W/Ref. 27 & 28 - 110 teeth on Swing Gear - (18) hole 11 mm dia
9 10CM1045
- 10CM1045 - BOLT
10 6533657
- 6533657 - PLATE
- Slide
11 6539417
- 6539417 - MOUNT
- For Swivel Joint 6658956
12 29CM816
- 29CM816 - SCREW FLGD HEX CAP
13 6533655
- 6533655 - COVER
14 1CM1030
- 1CM1030 - BOLT
15 6EM100
- 6EM100 - WASHER
16 6533658
- 6533658 - COVER
17 6533656
- 6533656 - COVER
18 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
- Was 29CM01020B
19 6533874
- 6533874 - COVER
20 6588784
- 6588784 - MOUNT
- Also order (2) Ref. 23 - this is part of the frame
- Ref. 1
21 26GM8016
- 26GM8016 - SCREW SELF TAPPING
- Self tapping
22 6596203
- 6596203 - COVER
23 6589305
- 6589305 - COVER
24 6589639
- 6589639 - PLATE
- Slide
25 6652962
- 6652962 - NLA
