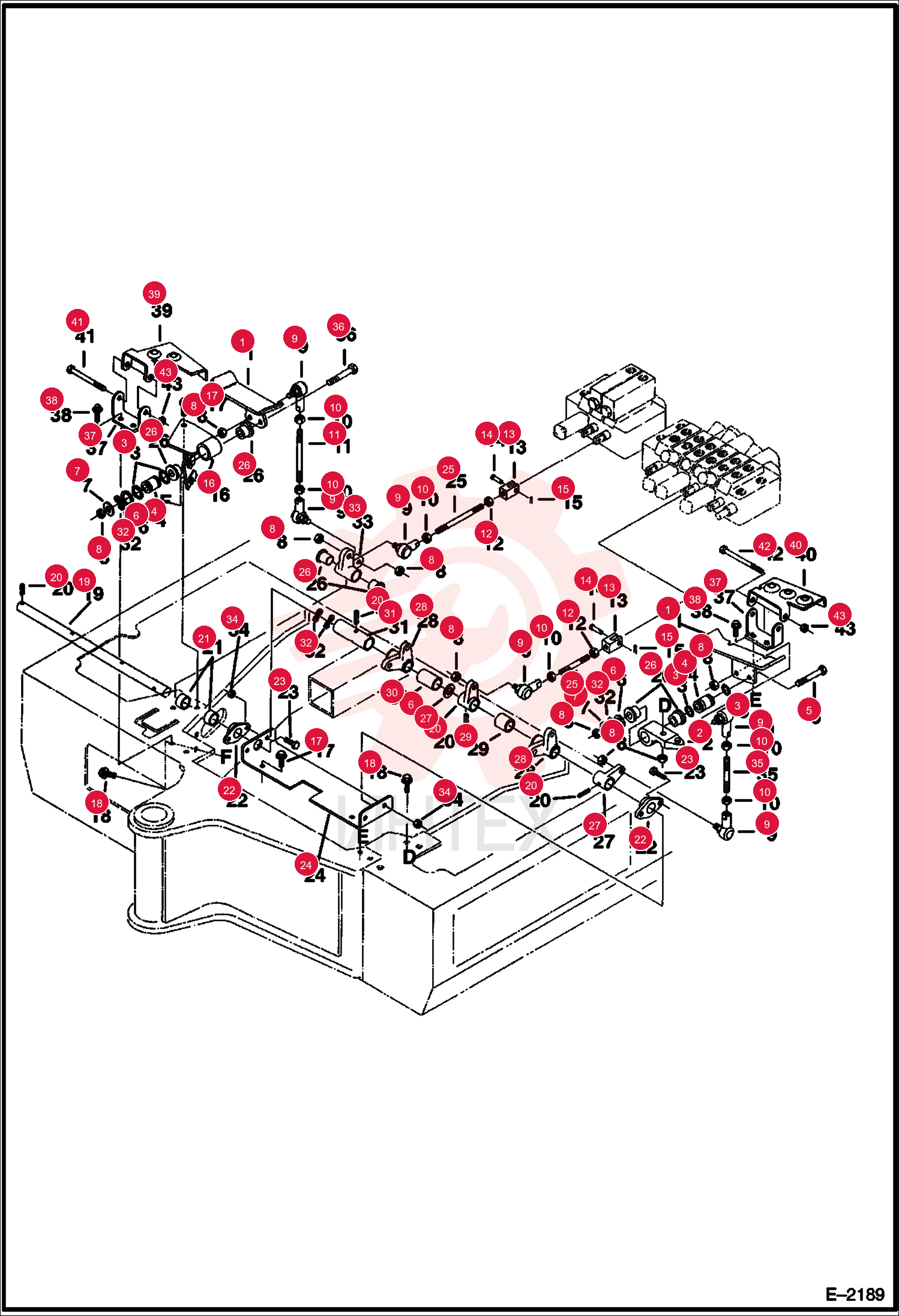

PEDAL
1 6589584
- 6589584 - PEDAL
- Use on L.H. & R.H. for early S/N machines - used on R.H. only for later S/N machines - Was 6586632
2 6589985
- 6589985 - PEDAL
- Use on L.H. only for later S/N Machines
3 6537481
- 6537481 - MOUNT
- Pivot
4 58K015
- 58K015 - O-RING 10
5 6536545
- 6536545 - SLEEVE
6 1CM1055
- 1CM1055 - BOLT
7 6536802
- 6536802 - WASHER
8 27E6
- 27E6 - WASHER HARDEN PLAIN
9 49DM10
- 49DM10 - NUT
10 6536531
- 6536531 - BRG ROD E
11 1DM10
- 1DM10 - NUT
12 6586636
- 6586636 - ROD
13 6587431
- 6587431 - NUT
- LH thread
14 6587430
- 6587430 - YOKE
- LH thread
15 6536543
- 6536543 - PIN
16 1F212
- 1F212 - PIN
17 6587171
- 6587171 - MOUNT
18 29CM1020
- 29CM1020 - SCREW HEX 10MMX20MM
19 29CM1025
- 29CM1025 - SCREW FLGD HEX CAP
20 6586659
- 6586659 - SHAFT
21 14J2124
- 14J2124 - ROLLPIN
22 6589986
- 6589986 - SPACER
23 6586666
- 6586666 - SPACER
24 6536818
- 6536818 - BEARING
25 4CM816
- 4CM816 - SCREW HEX HD 8.8
- Was 1CM816
26 6586658
- 6586658 - PLATE
- Mounting
27 6587429
- 6587429 - ROD
- Use on L.H. & R.H. for early S/N machines - used on R.H. only for later S/N machines
28 6589993
- 6589993 - ROD
- Use on L.H. only for later S/N Machines
29 6536801
- 6536801 - BUSHING
30 6586633
- 6586633 - LEVER
31 6536831
- 6536831 - BELLCRANK
32 6586669
- 6586669 - SPACER
33 6586668
- 6586668 - SPACER
34 6589988
- 6589988 - SPACER
35 6586667
- 6586667 - SPACER
36 6589987
- 6589987 - SPACER
37 6536803
- 6536803 - WASHER
- Wave Spring
38 6587183
- 6587183 - LEVER
39 1DM8
- 1DM8 - NUT
40 6586635
- 6586635 - ROD
41 1CM1055
- 1CM1055 - BOLT
42 6586653
- 6586653 - MOUNT
- Pedal lock/foot rest
43 26GM8016
- 26GM8016 - SCREW SELF TAPPING
- Was 29CM00816B
44 6586654
- 6586654 - PLATE
45 6537640
- 6537640 - PLATE
46 1CM885
- 1CM885 - BOLT
47 1CM8100
- 1CM8100 - SCREW HEX CAP
48 49DM8
- 49DM8 - NUT
