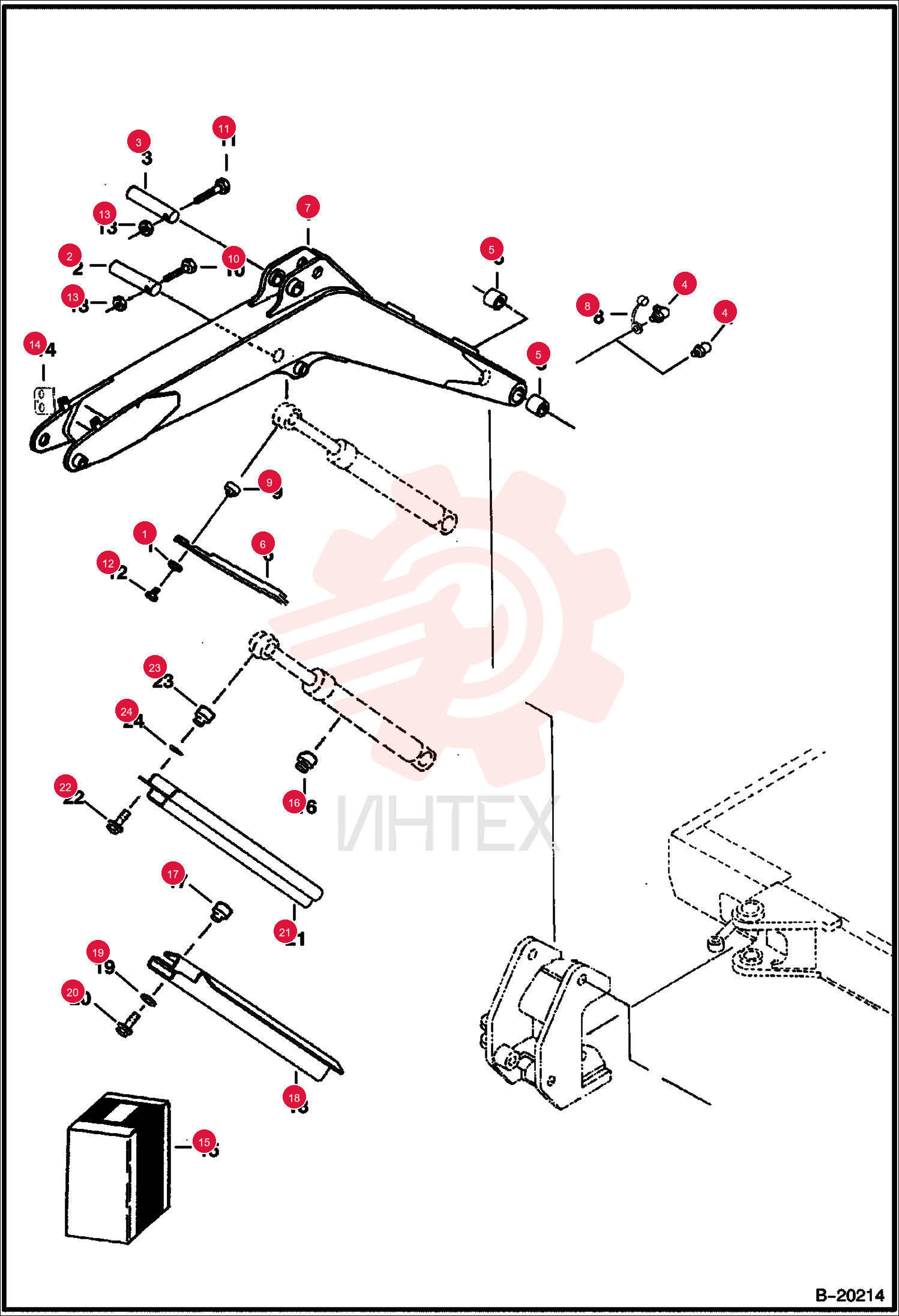

WASHER
1 17EM120
- 17EM120 - WASHER
2 6539100
- 6539100 - PIN
3 6539101
- 6539101 - PIN
4 12H15
- 12H15 - FTG GREASE 90
- 905 - See Service Letter Dated September 2
- 1994
5 10H25
- 10H25 - FTG GREASE STRAIGHT
- straight
6 6539110
- 6539110 - BUSHING
- PRESS FIT
7 6539263
- 6539263 - SHIELD
8 6539114
- 6539114 - BOOM
- Also Order Ref. 5
9 6652943
- 6652943 - COVER
- grease fitting
10 6539264
- 6539264 - SPACER
11 1CM1070
- 1CM1070 - BOLT
12 1CM1080
- 1CM1080 - BOLT
13 1CM1255
- 1CM1255 - SCREW
14 53DM10
- 53DM10 - NUT HX THDLK PREAPPL
- Was 39DM00010B
15 6589353
- 6589353 - BRACKET
- Welded on the boom
16 6800329
- 6800329 - BOOMGRDKT
- Boom Cylinder Guard - W/Ref. 16 - 20 - See Service Letter
17 6628788
- 6628788 - GUIDE
- Cylinder Guard - Weld on
18 6800138
- 6800138 - SPACER
- for Use W/Ref. 18 (NLA/6596493 shield)
19 15EM120
- 15EM120 - WASHER
- for Use W/Ref. 18 (NLA/6596493 shield)
20 59CM1245
- 59CM1245 - BOLT
- for Use W/Ref. 18 (NLA/6596493 shield)
21 7130856
- 7130856 - SHIELD
- W/A
22 7131273
- 7131273 - SCREW
- for Use W/Ref. 21
23 7131109
- 7131109 - SPACER
- for Use W/Ref. 21
24 6536803
- 6536803 - WASHER
- spring washer - for Use W/Ref. 21
