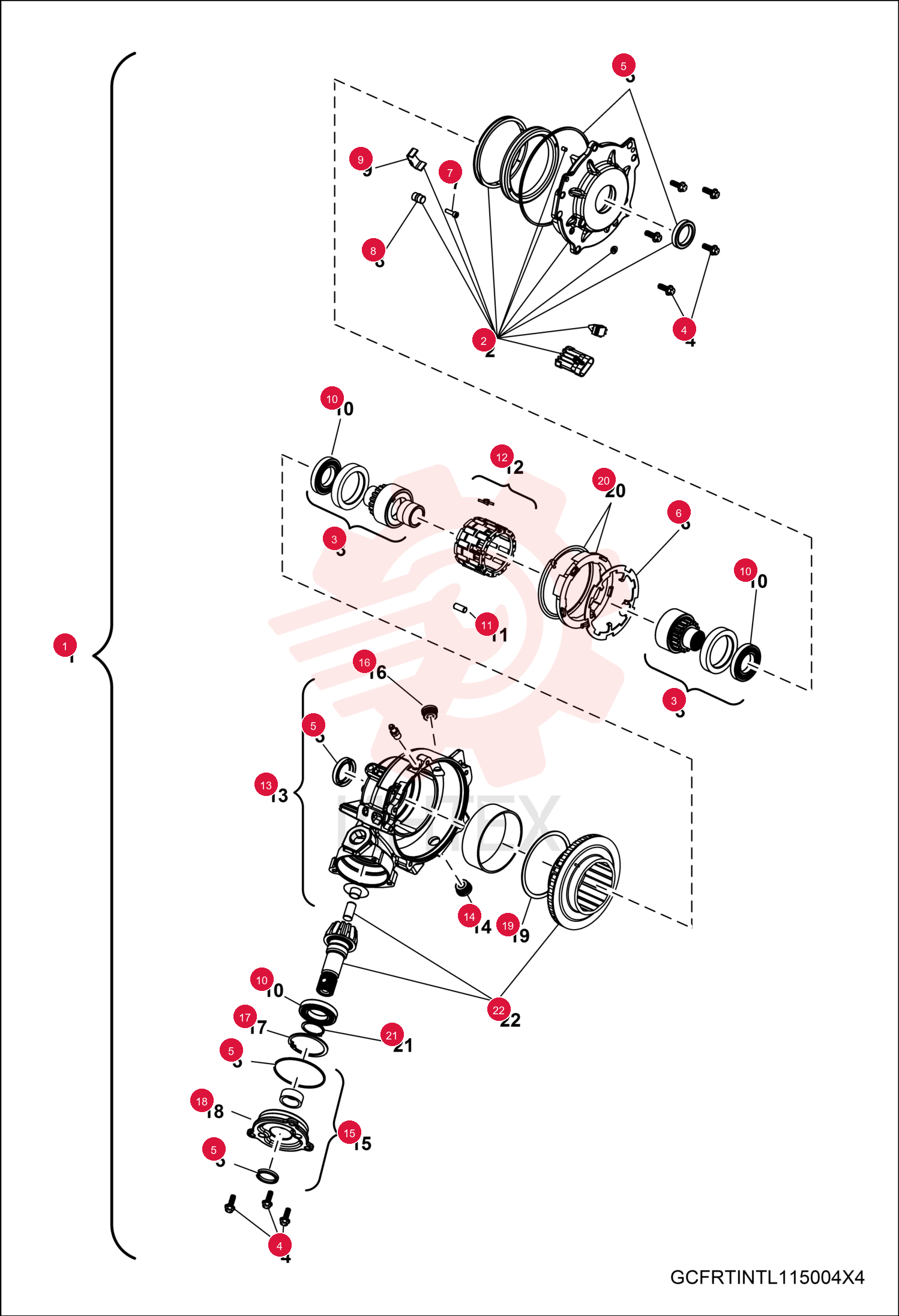

DIFFERENTIAL, FRONT 7018917

DIFFERENTIAL, FRONT 7018917

DIFFERENTIAL, FRONT 7018917

1 7018917

  • 7018917 - DIFFERENTIAL
  • FRONT
  • Ref. 2-22

2 7018974

  • 7018974 - COVER
  • OUTPUT
  • W/connector assy
  • output cover
  • plastic clip
  • thrust button ass
  • 4wd coil
  • thrust plate
  • O-Ring
  • grommet
  • screw
  • oil sea - Must remove nylon spacer from the ring gear

3 7018972

  • 7018972 - KIT
  • OUTPUT HUB
  • W/female & male hub assy

4 7017565

  • 7017565 - KIT
  • BOLT
  • W/Ref. 8 & screws

5 7017585

  • 7017585 - KIT
  • REPAIR SEAL
  • W/all seals

6 7017631

  • 7017631 - PLATE
  • ARMATURE

7 7017697

  • 7017697 - SCREW
  • SET W/NYLOK

8 7017435

  • 7017435 - HOUSING
  • THRUST BUTTON ASSY

9 7018976

  • 7018976 - PLATE
  • THRUST

10 7017440

  • 7017440 - BEARING

11 7017586

  • 7017586 - KIT
  • ROLLER
  • W/complete set of rollers

12 7018970

  • 7018970 - CAGE
  • ROLLER ASSY

13 7017422

  • 7017422 - HOUSING
  • GEARCASE ASSY
  • W/gearcase
  • bushing
  • garlock bearing
  • fill plug
  • vent tube & oil seal

14 7017428

  • 7017428 - PLUG
  • DRAIN MAGNETIC ASSY

15 7017427

  • 7017427 - COVER
  • INPUT ASSY
  • W/input cover
  • O-Ring
  • oil seal & needle foller bearing

16 7018968

  • 7018968 - PLUG
  • OIL FILL

17 7017664

  • 7017664 - RING
  • RETAINING INTERNAL 5000-218

18 7018969

  • 7018969 - COVER
  • INPUT

19 7017719

  • 7017719 - SPACER
  • RING GEAR

20 7018971

  • 7018971 - KIT
  • SPRING
  • W/spring retainer & torsion spring

21 7018975

  • 7018975 - RING
  • RETAINING

22 7018977

  • 7018977 - GEAR
  • RING AND PINION
  • W/ring gear sub assy
  • pinion gear & dowel pin
