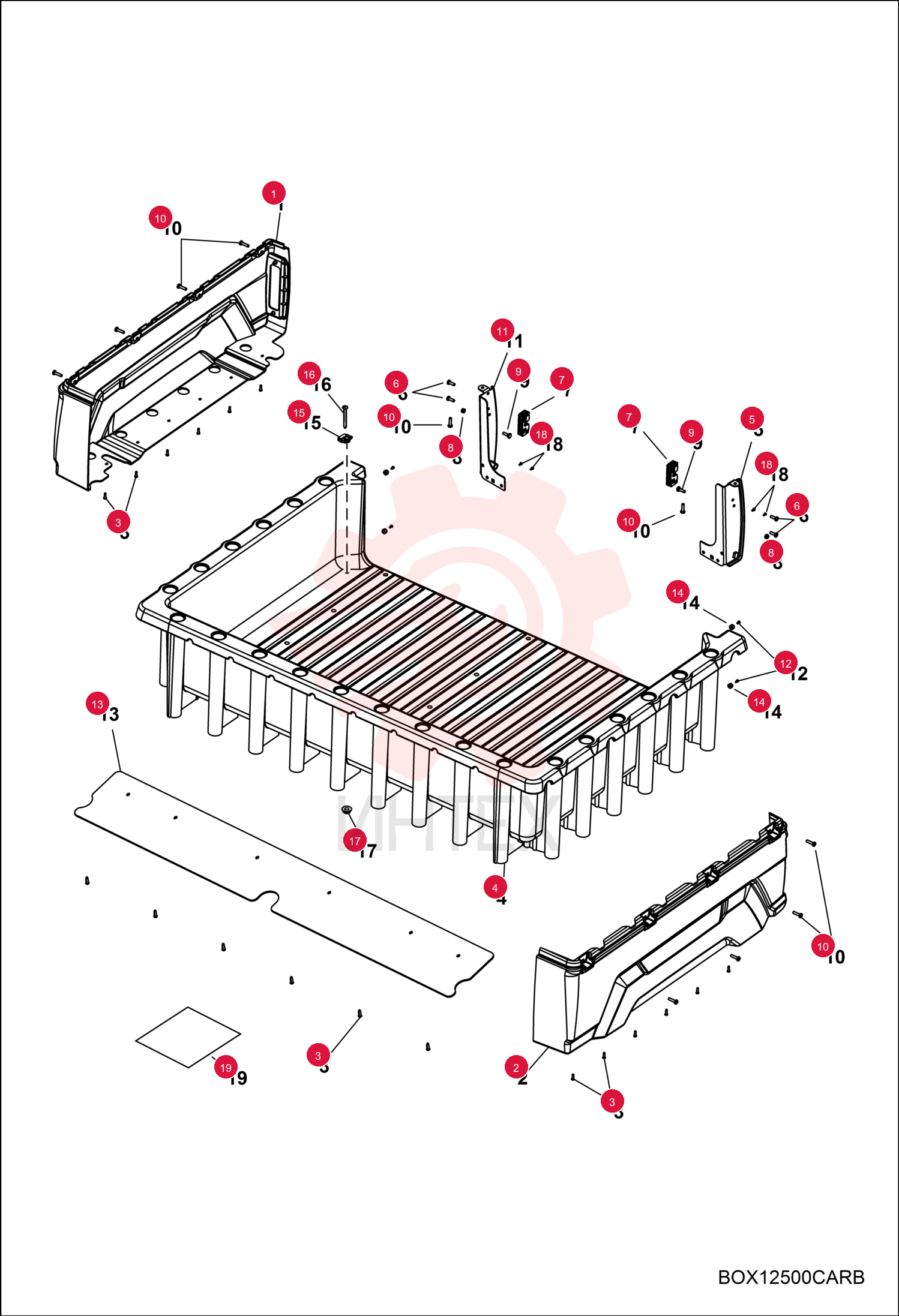

PANEL, BOX SHORT RH 7018909 (2)

PANEL, BOX SHORT RH 7018909 (2)

PANEL, BOX SHORT RH 7018909 (2)

1 7018909

  • 7018909 - PANEL
  • BOX SHORT RH

2 7018908

  • 7018908 - PANEL
  • BOX SHORT LH

3 7016615

  • 7016615 - SCREW

4 7016192

  • 7016192 - HOUSING
  • BOX SHORT BLK

5 7016843

  • 7016843 - TAILGATE SUPPORT
  • LH
  • BLK

6 7016592

  • 7016592 - SCREW

7 7016471

  • 7016471 - LATCH
  • SLAM
  • TAILGATE

8 7016529

  • 7016529 - NUT

9 7016098

  • 7016098 - BOLT

10 7016590

  • 7016590 - SCREW

11 7016844

  • 7016844 - TAILGATE SUPPORT
  • RH
  • BLK

12 7016612

  • 7016612 - SCREW

13 7260650

  • 7260650 - PANEL
  • FRONT
  • Was 7016532

14 7016226

  • 7016226 - BUMPER
  • RECESS
  • 1/4"
  • 6.4 mm (25")

15 7018890

  • 7018890 - RING
  • TIE DOWN

16 7018895

  • 7018895 - SCREW

17 7018900

  • 7018900 - NUT
  • FLANGE

18 7016175

  • 7016175 - BOLT

19 7023372

  • 7023372 - SHIELD
  • HEAT
