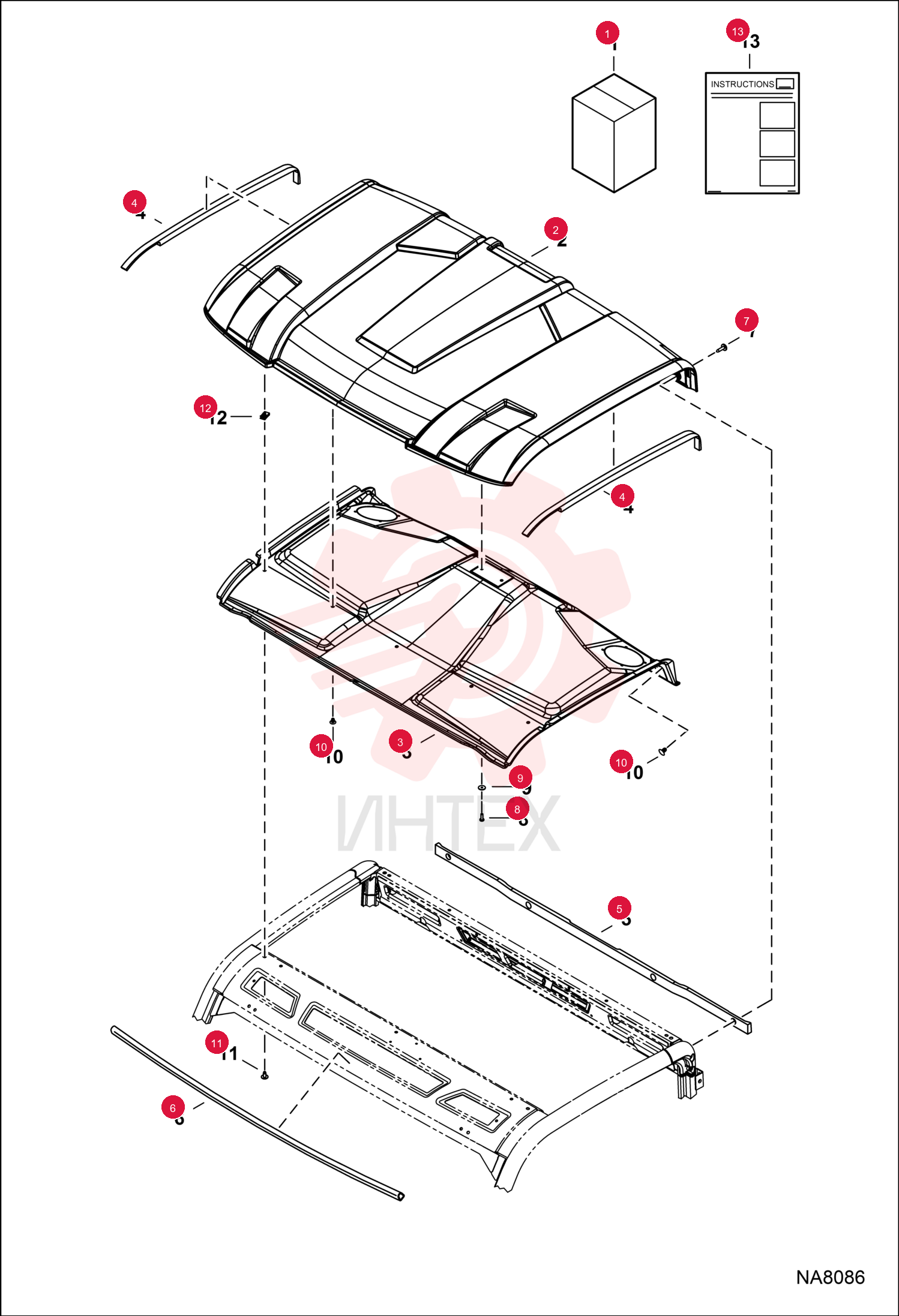

HEADLINER, INNER ROOF 7028587 (1)

HEADLINER, INNER ROOF 7028587 (1)

HEADLINER, INNER ROOF 7028587 (1)

1 7028587

  • 7028587 - HEADLINER
  • INNER ROOF

2 7027689

  • 7027689 - FOAM
  • SEAL ROOF SIDE

3 7027690

  • 7027690 - FOAM
  • SEAL ROOF REAR

4 7027691

  • 7027691 - SEAL
  • RUBBER ROOF FRONT

5 7025486

  • 7025486 - BOLT

6 7024692

  • 7024692 - BOLT

7 7027755

  • 7027755 - WASHER

8 7027763

  • 7027763 - CLIP
  • PLASTIC

9 7023602

  • 7023602 - BOLT

10 7023820

  • 7023820 - NUT

11 6990645ENUS

  • 6990645ENUS - INSTRUCTIONS
  • Was 6990645
