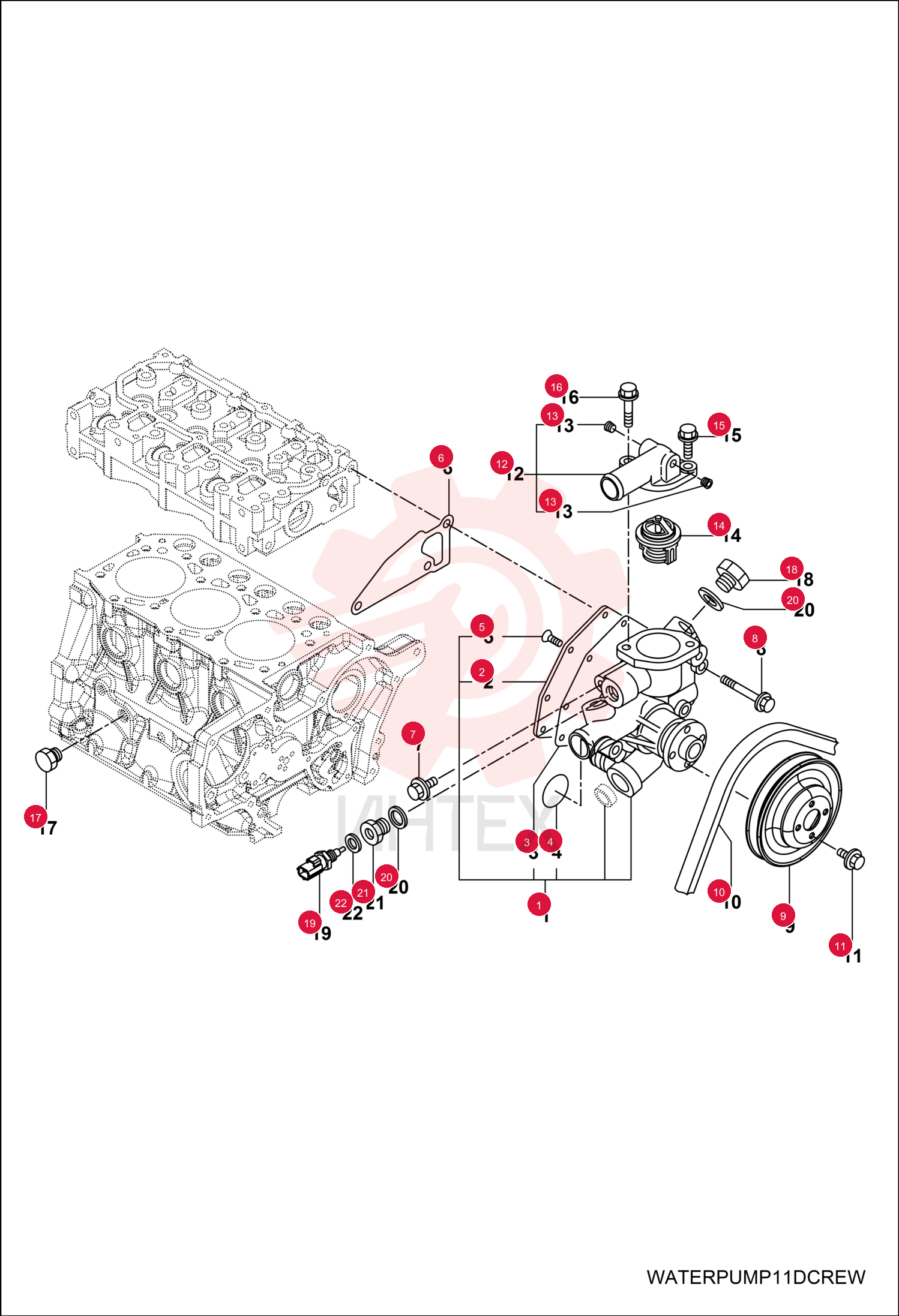

PUMP, WATER 7028442

PUMP, WATER 7028442

PUMP, WATER 7028442

1 7028442

  • 7028442 - PUMP
  • WATER
  • W/Ref. 2-5

2 7018467

  • 7018467 - COVER
  • PUMP WATER

3 7018468

  • 7018468 - KIT
  • SEAL

4 7018469

  • 7018469 - ORING

5 7018470

  • 7018470 - SCREW

6 7018471

  • 7018471 - GASKET
  • PUMP WATER

7 7018472

  • 7018472 - BOLT

8 7018374

  • 7018374 - BOLT
  • PLATED M8X45

9 7020766

  • 7020766 - PULLEY

10 7027653

  • 7027653 - BELT
  • ALT
  • Fan Belt - Was 7028425

11 7018416

  • 7018416 - BOLT

12 7020767

  • 7020767 - COVER
  • THERMOSTAT

13 7020768

  • 7020768 - PLUG

14 7020769

  • 7020769 - THERMOSTAT

15 7018597

  • 7018597 - BOLT

16 7020770

  • 7020770 - BOLT

17 7028440

  • 7028440 - PLUG

18 7018474

  • 7018474 - PLUG

19 7020772

  • 7020772 - SENDER
  • THERMISTOR COOLANT

20 7018475

  • 7018475 - GASKET

21 7020771

  • 7020771 - ADAPTER
  • THERMISTOR

22 7018560

  • 7018560 - WASHER
