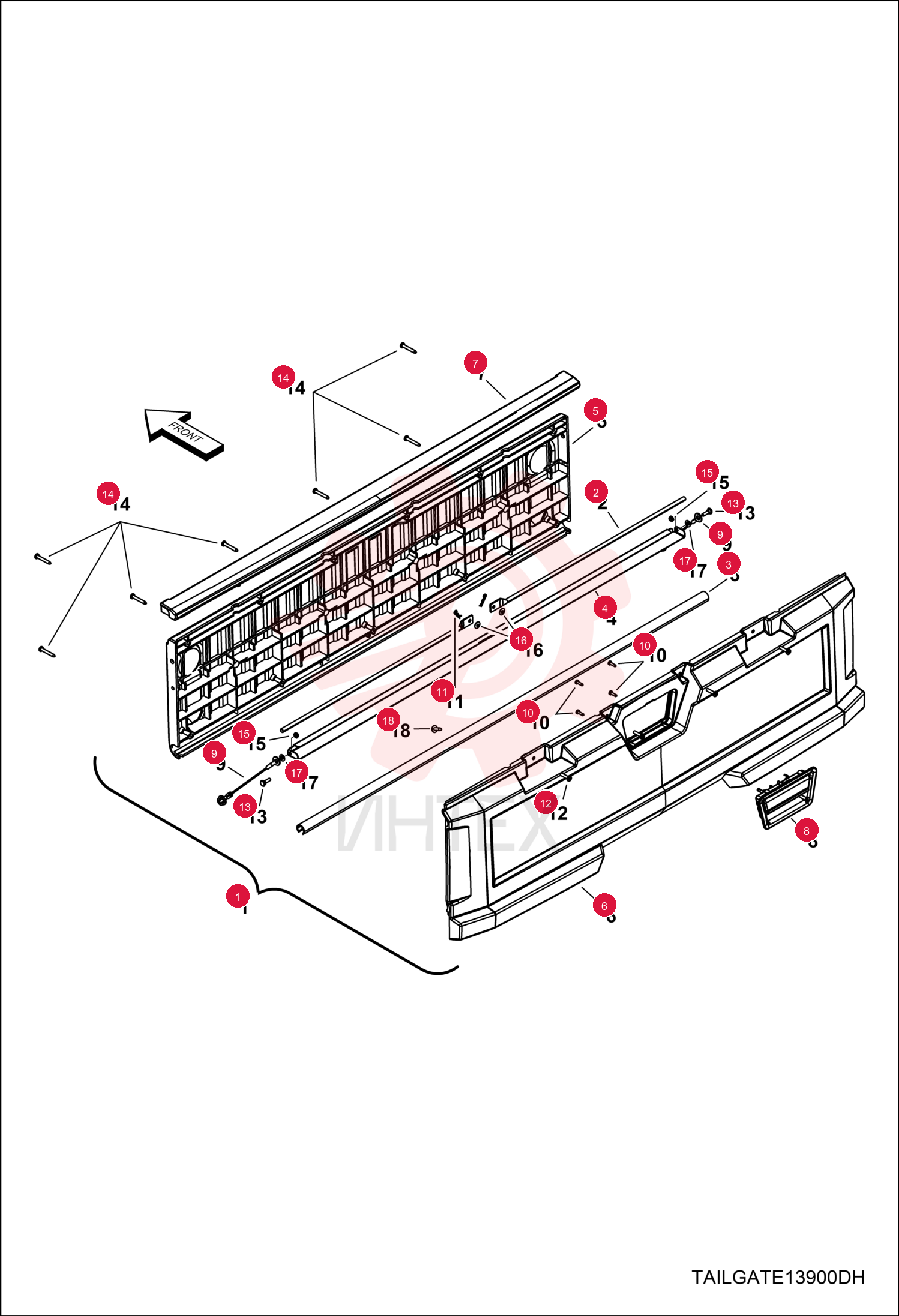

TAILGATE 7027786 (4)

TAILGATE 7027786 (4)

TAILGATE 7027786 (4)

1 7027786

  • 7027786 - TAILGATE
  • W/Ref. 2-18

2 7016586

  • 7016586 - ROD

3 7027649

  • 7027649 - TUBE
  • PIVOT TAILGATE

4 7247908

  • 7247908 - BRACKET

5 7247924

  • 7247924 - PANEL
  • TAILGATE INNER

6 7027815

  • 7027815 - PANEL
  • TAILGATE OUTER

7 7027814

  • 7027814 - CAP
  • TAILGATE

8 7027719

  • 7027719 - LATCH
  • PADDLE

9 7247926

  • 7247926 - CABLE
  • TAILGATE

10 7016615

  • 7016615 - SCREW

11 7016542

  • 7016542 - PIN
  • HITCH

12 7016590

  • 7016590 - SCREW

13 7016098

  • 7016098 - BOLT

14 7027742

  • 7027742 - SCREW

15 7016516

  • 7016516 - NUT

16 7016747

  • 7016747 - WASHER

17 7016762

  • 7016762 - WASHER
  • FLAT

18 7016633

  • 7016633 - SCREW
