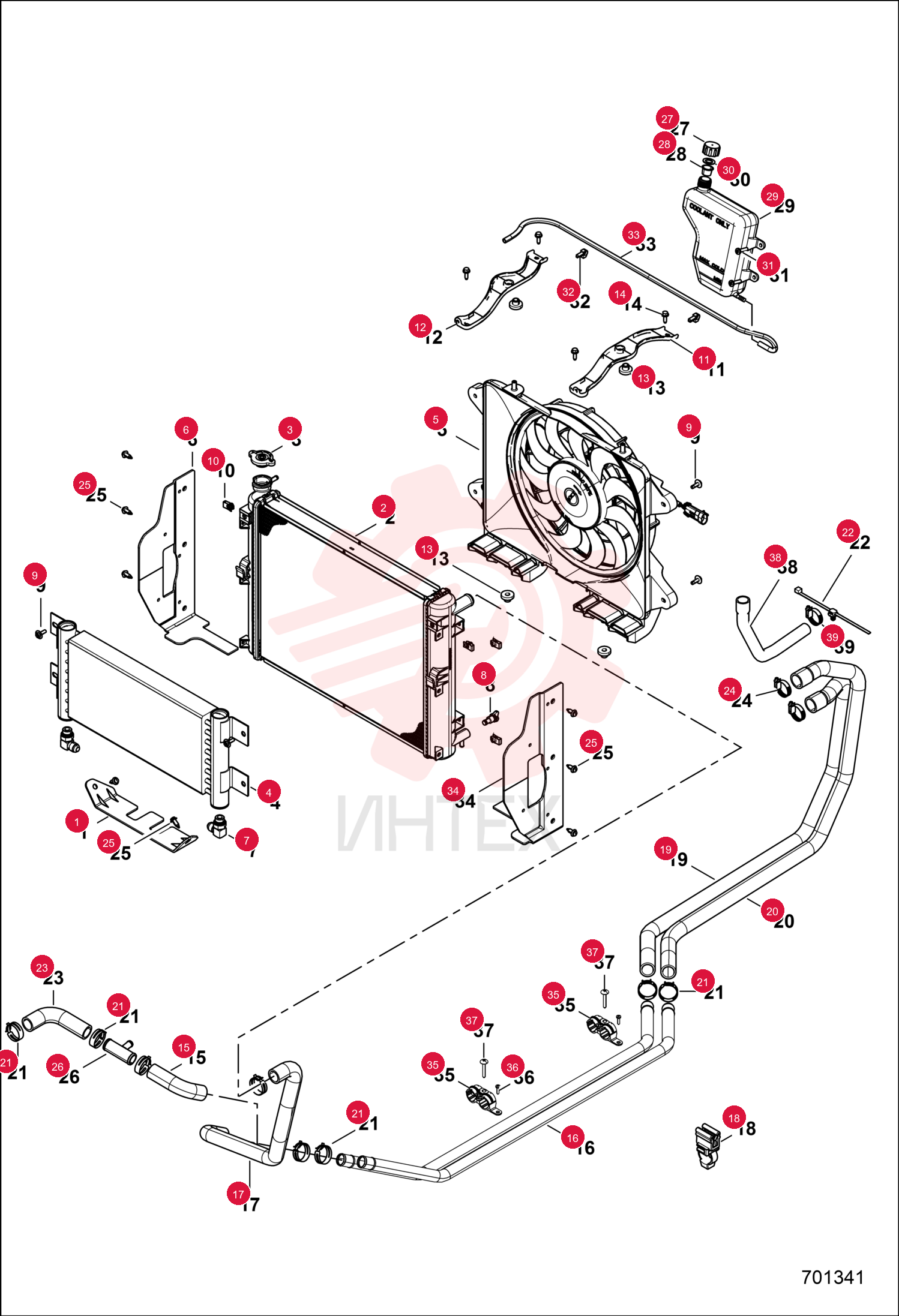

SHROUD, RADIATOR CENTER 7027847 (5)

SHROUD, RADIATOR CENTER 7027847 (5)

SHROUD, RADIATOR CENTER 7027847 (5)

1 7027847

  • 7027847 - SHROUD
  • RADIATOR CENTER

2 7027499

  • 7027499 - EXCHANGER
  • WATER RADIATOR

3 7027500

  • 7027500 - CAP
  • RADIATOR

4 7027503

  • 7027503 - COOLER
  • OIL

5 7027546

  • 7027546 - SHROUD
  • FAN

6 7025554

  • 7025554 - SHROUD
  • FAN

7 7252898

  • 7252898 - FITTING
  • HYD ELBOW

8 7027711

  • 7027711 - VALVE
  • DRAIN

9 7027745

  • 7027745 - BOLT

10 7016307

  • 7016307 - CLIP
  • "U"
  • M6.0X1.0

11 7025547

  • 7025547 - MOUNT
  • RADIATOR

12 7025548

  • 7025548 - MOUNT
  • RADIATOR

13 7025453

  • 7025453 - GROMMET

14 7016645

  • 7016645 - SCREW

15 7027657

  • 7027657 - HOSE
  • WATER FORMED

16 7347337

  • 7347337 - TUBE COOLING

17 7025404

  • 7025404 - HOSE
  • WATER UPPER

18 7265106

  • 7265106 - STRAP

19 7257147

  • 7257147 - HOSE
  • INLET

20 7265099

  • 7265099 - HOSE
  • OUTLET

21 7025456

  • 7025456 - CLAMP
  • HOSE

22 7023400

  • 7023400 - CLIP
  • ROUTING

23 7027658

  • 7027658 - HOSE
  • WATER FORMED

24 7025297

  • 7025297 - CLAMP
  • HOSE

25 7016585

  • 7016585 - RIVET
  • TUFLOK
  • .315
  • .325X.787

26 7023579

  • 7023579 - FITTING
  • TEE

27 7016270

  • 7016270 - CAP
  • OVERFLOW

28 7016273

  • 7016273 - CAP
  • PLUG9X(GRN)
  • FLEX TEMP

29 7025428

  • 7025428 - TANK
  • WATER COOLANT

30 7016410

  • 7016410 - GASKET

31 7016590

  • 7016590 - SCREW

32 7016306

  • 7016306 - CLIP

33 7258604

  • 7258604 - HOSE
  • FUEL

34 7025552

  • 7025552 - SHROUD
  • FAN

35 7252900

  • 7252900 - BRACKET

36 7016615

  • 7016615 - SCREW

37 7252901

  • 7252901 - SCREW

38 7257149

  • 7257149 - HOSE
  • BYPASS ENG

39 7024086

  • 7024086 - CLAMP
