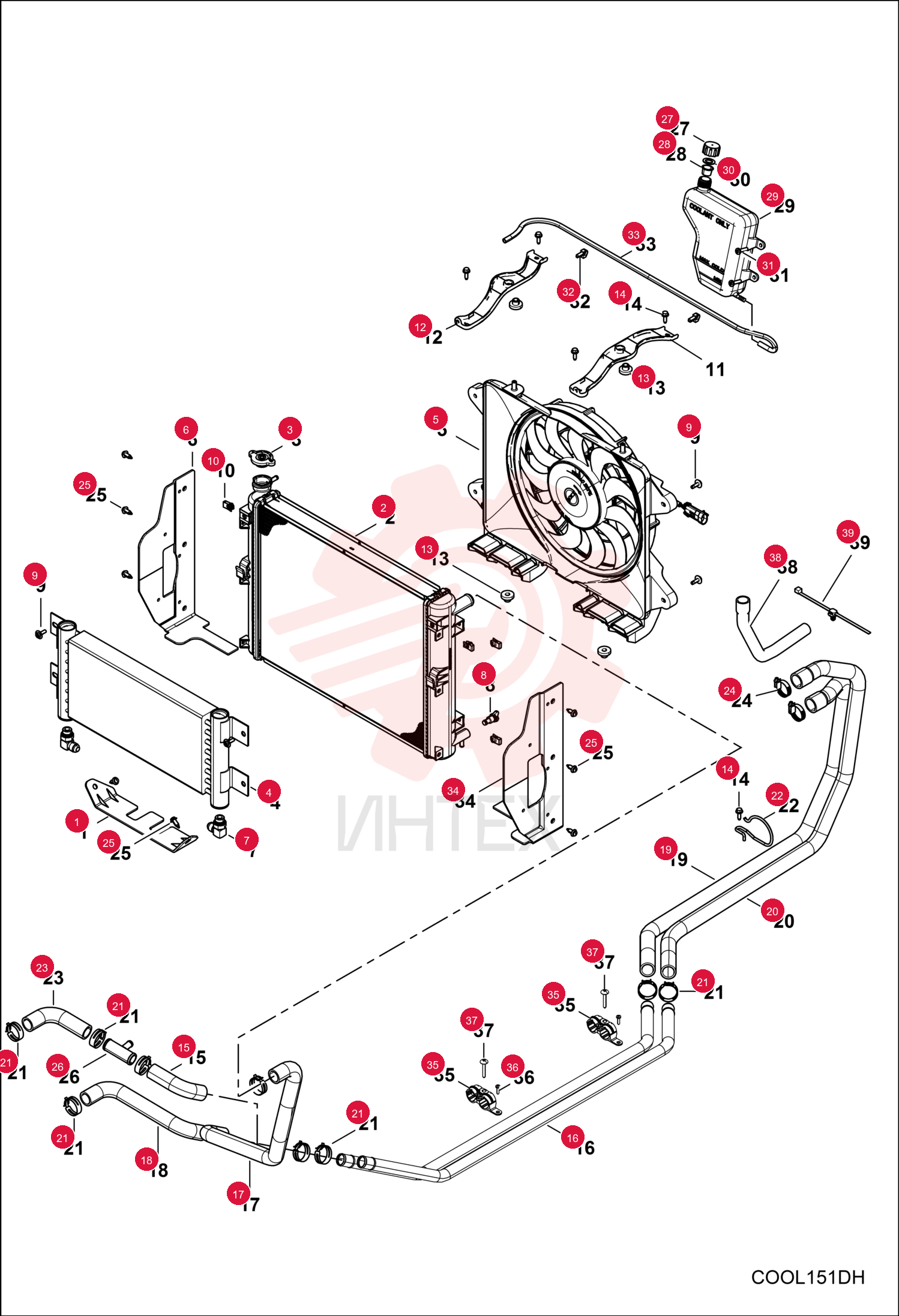

SHROUD, RADIATOR CENTER 7027847 (3)

SHROUD, RADIATOR CENTER 7027847 (3)

SHROUD, RADIATOR CENTER 7027847 (3)

1 7027847

  • 7027847 - SHROUD
  • RADIATOR CENTER

2 7027499

  • 7027499 - EXCHANGER
  • WATER RADIATOR

3 7027500

  • 7027500 - CAP
  • RADIATOR

4 7027503

  • 7027503 - COOLER
  • OIL

5 7027546

  • 7027546 - SHROUD
  • FAN
  • fan assembly

6 7025554

  • 7025554 - SHROUD
  • FAN

7 7252898

  • 7252898 - FITTING
  • HYD ELBOW

8 7027711

  • 7027711 - VALVE
  • DRAIN

9 7027745

  • 7027745 - BOLT

10 7016307

  • 7016307 - CLIP
  • "U"
  • M6.0X1.0

11 7257164

  • 7257164 - MOUNT
  • RADIATOR RH
  • Built 1/7/15 & Before

12 7025548

  • 7025548 - MOUNT
  • RADIATOR
  • Built 1/8/15 & After

13 7025453

  • 7025453 - GROMMET

14 7016645

  • 7016645 - SCREW

15 7027657

  • 7027657 - HOSE
  • WATER FORMED
  • W/Cab

16 7252899

  • 7252899 - TUBE
  • COOLING

17 7025404

  • 7025404 - HOSE
  • WATER UPPER

18 7025405

  • 7025405 - HOSE
  • WATER LOWER
  • W/O Cab

19 7257147

  • 7257147 - HOSE
  • INLET

20 7265099

  • 7265099 - HOSE
  • OUTLET

21 7025456

  • 7025456 - CLAMP
  • HOSE
  • W/Cab

22 7025456

  • 7025456 - CLAMP
  • HOSE
  • W/O Cab

23 7025450

  • 7025450 - RETAINER
  • HOSE

24 7027658

  • 7027658 - HOSE
  • WATER FORMED
  • W/Cab

25 7025297

  • 7025297 - CLAMP
  • HOSE

26 7016585

  • 7016585 - RIVET
  • TUFLOK
  • .315
  • .325X.787

27 7023579

  • 7023579 - FITTING
  • TEE
  • W/O Cab

28 7023579

  • 7023579 - FITTING
  • TEE
  • W/Cab

29 7016270

  • 7016270 - CAP
  • OVERFLOW

30 7016273

  • 7016273 - CAP
  • PLUG9X(GRN)
  • FLEX TEMP

31 7025428

  • 7025428 - TANK
  • WATER COOLANT

32 7016410

  • 7016410 - GASKET

33 7016590

  • 7016590 - SCREW

34 7016306

  • 7016306 - CLIP

35 7258604

  • 7258604 - HOSE
  • FUEL

36 7025552

  • 7025552 - SHROUD
  • FAN

37 7252900

  • 7252900 - BRACKET

38 7016615

  • 7016615 - SCREW

39 7252901

  • 7252901 - SCREW

40 7257149

  • 7257149 - HOSE
  • BYPASS ENG

41 7023400

  • 7023400 - CLIP
  • ROUTING
  • BUILT BEFORE 11/14/14
