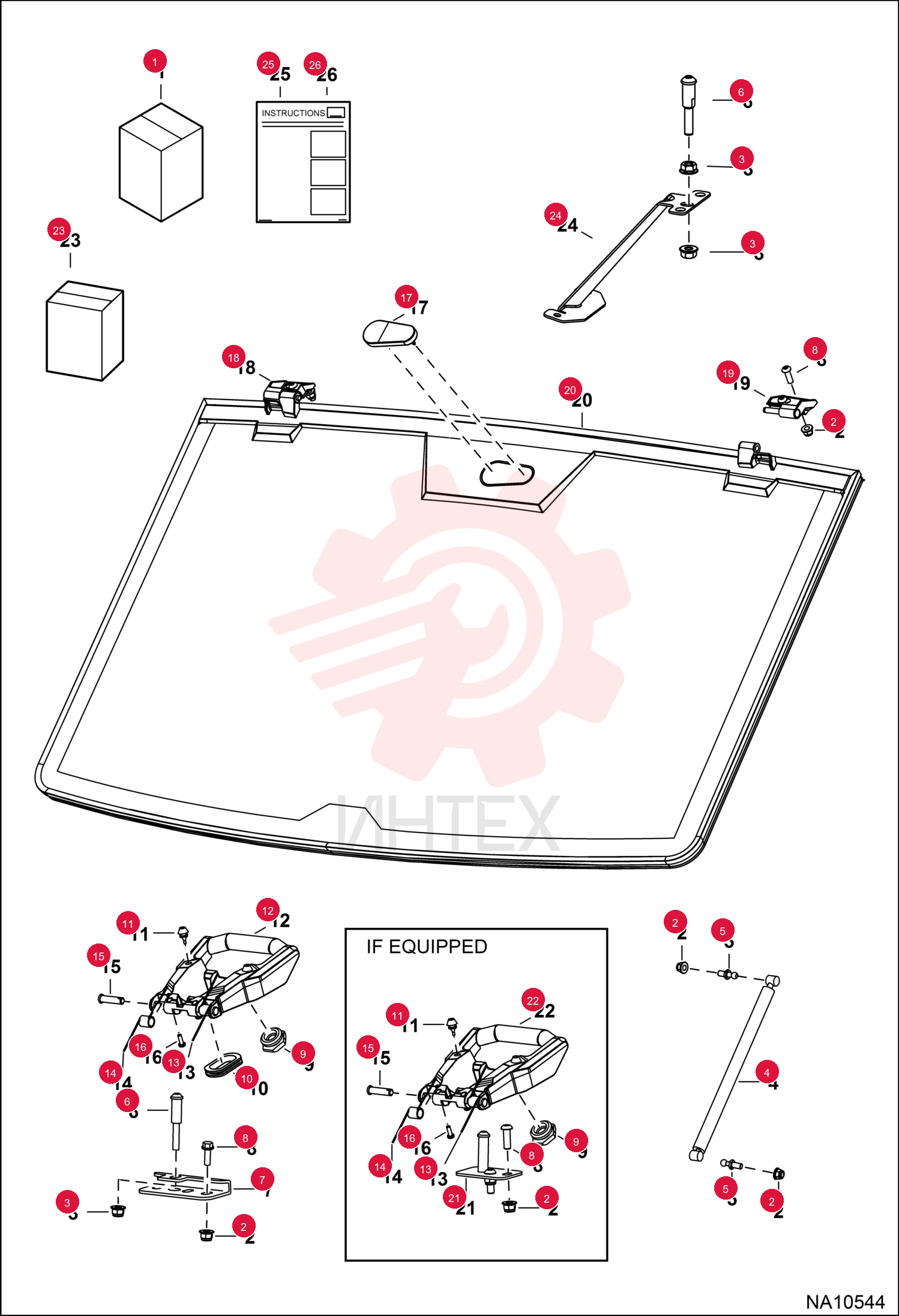

NUT, NYLOCK FLANGED 7028550 (4)
1 7028550
- 7028550 - NUT
- NYLOCK FLANGED
2 7023322
- 7023322 - NUT
- FLANGE
- if equipped - use W/Ref. 6
3 7030073
- 7030073 - GAS SPRING
4 7030076
- 7030076 - BALL JOINT
5 7269530
- 7269530 - PIN
- if equipped - use W/Ref. 7
6 7030079
- 7030079 - SCREW
7 7030071
- 7030071 - GROMMET
8 7267443
- 7267443 - GROMMET
- if equipped - use W/Ref. 12
9 7030070
- 7030070 - BUMPER
- RUBBER
10 7260656
- 7260656 - HANDLE
- LATCH WINDSHIELD
- if equipped - 2 grommet - use W/Ref. 3
- 6
- 7
- & 10
11 7030075
- 7030075 - SPRING
- TORSION
- LH
12 7030074
- 7030074 - SPRING
- TORSION
- RH
13 7030078
- 7030078 - PIN
- PIVOT
14 7030077
- 7030077 - SCREW
15 7027674
- 7027674 - PLUG
- WIPER
16 7030067
- 7030067 - BRACKET
- HINGE
- Upper RH
17 7030066
- 7030066 - BRACKET
- HINGE
- Upper LH
18 7030072
- 7030072 - HANDLE
- LATCH WINDSHIELD
- 1 grommet - use W/Ref. 21
19 7275137
- 7275137 - KIT
- BRACKET
- Ref. 3
- 6 & 24
20 7258285
- 7258285 - BRACKET
- CENTERING
