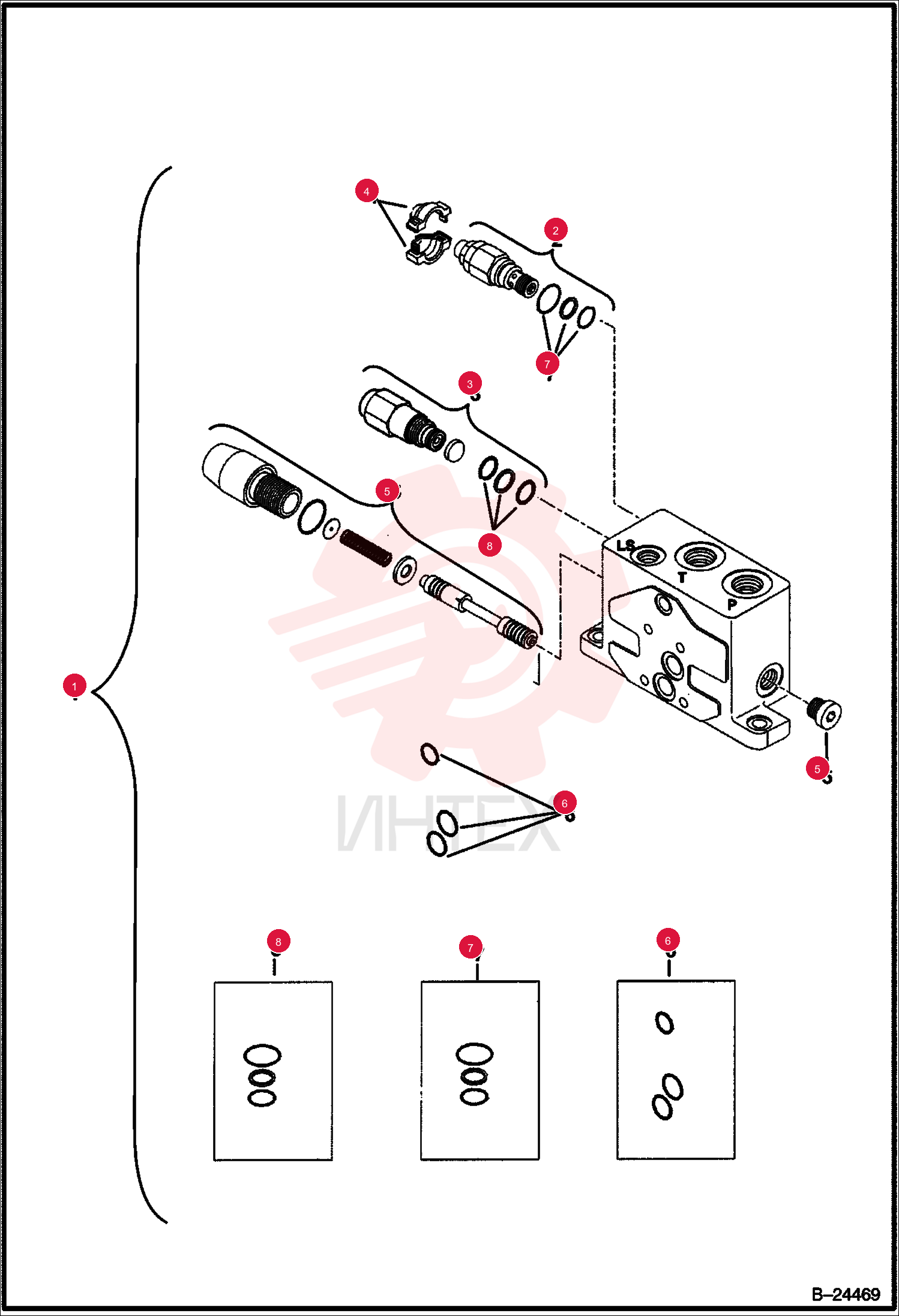

INLET SECTION 6691104 (3)

INLET SECTION 6691104 (3)

INLET SECTION 6691104 (3)

1 6691104

  • 6691104 - INLET SECTION
  • assy - inlet - Was 6685238

2 6687055

  • 6687055 - VALVE
  • press relief - Was 6686592

3 6686593

  • 6686593 - REGULATOR
  • flow

4 6678023

  • 6678023 - CAPS
  • BLUE
  • half

5 6686899

  • 6686899 - REGULATOR
  • FLOW
  • regulator

6 6677467

  • 6677467 - KIT
  • SEAL
  • Was 6685259

7 6677463

  • 6677463 - SEAL KIT
  • relief - Was 6685257

8 6685258

  • 6685258 - KIT
  • SEAL
  • regulator
