435.0
/

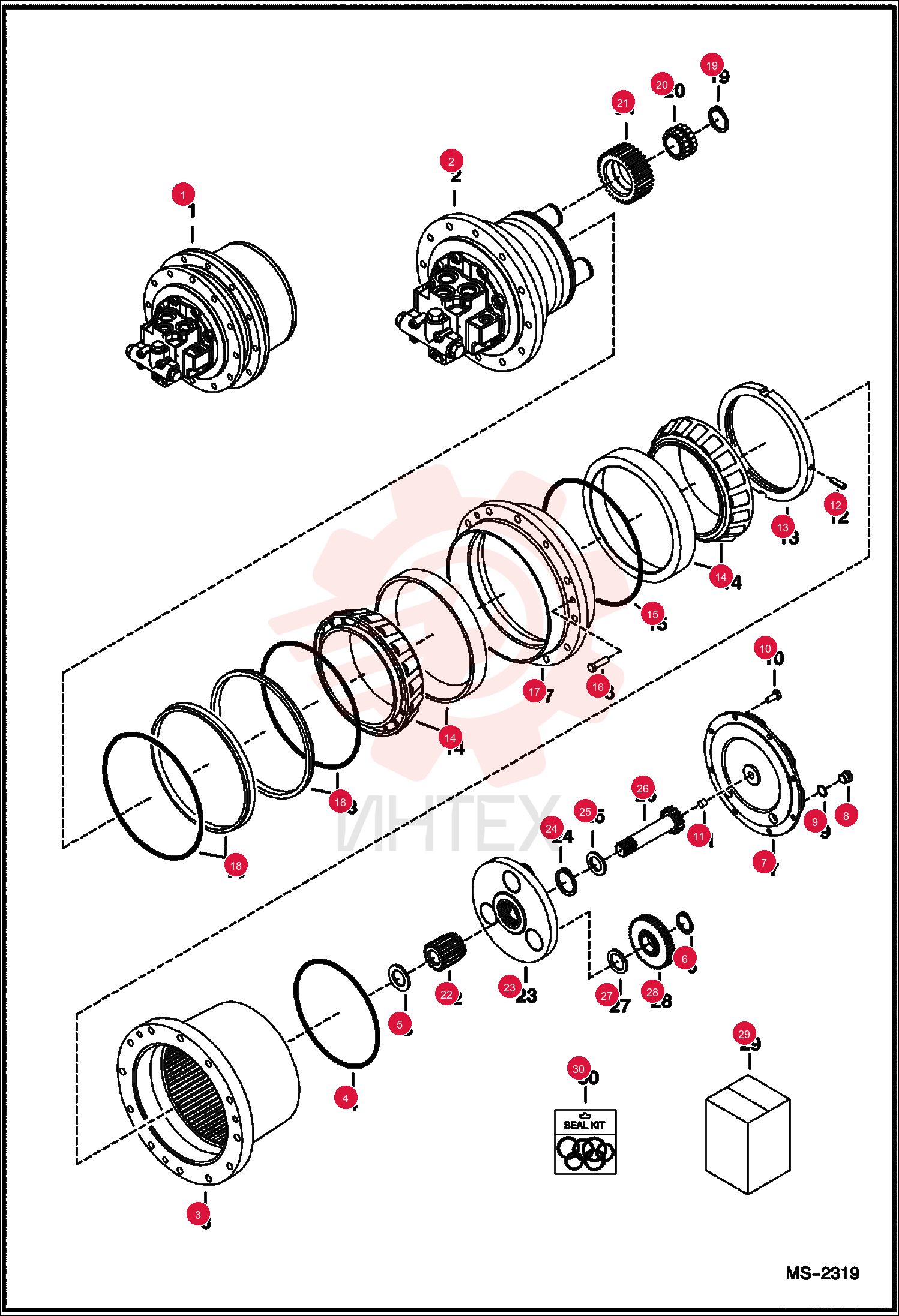

MOTOR, MOTOR HYD 6689796 (2)

MOTOR, MOTOR HYD 6689796 (2)

MOTOR, MOTOR HYD 6689796 (2)

1 6689796

  • 6689796 - MOTOR
  • MOTOR HYD
  • NLA - travel W/planetary - Ref. 2-28 - Was 6689796

2 6686287

  • 6686287 - GEAR

3 6686288

  • 6686288 - O-RING

4 6686286

  • 6686286 - WASHER

5 6691503

  • 6691503 - RING

6 6686276

  • 6686276 - COVER

7 6686283

  • 6686283 - PLUG

8 6686279

  • 6686279 - BOLT

9 6686279

  • 6686279 - BOLT

10 6686277

  • 6686277 - PLUG
  • BUTTON
  • thrust

11 6686278

  • 6686278 - BEARING

12 6686274

  • 6686274 - RING

13 6691504

  • 6691504 - RING
  • snap

14 5459661095

  • 5459661095 - BEARING
  • Was 6691505

15 6691506

  • 6691506 - GEAR

16 6690599

  • 6690599 - KIT GEAR RATIO
  • Ref. 22-28

17 6691508

  • 6691508 - SEAL KIT
  • Ref. 4
  • 9
  • 12
  • 13
  • 15
  • 16 & 18
