Bobcat
/
435.0
/

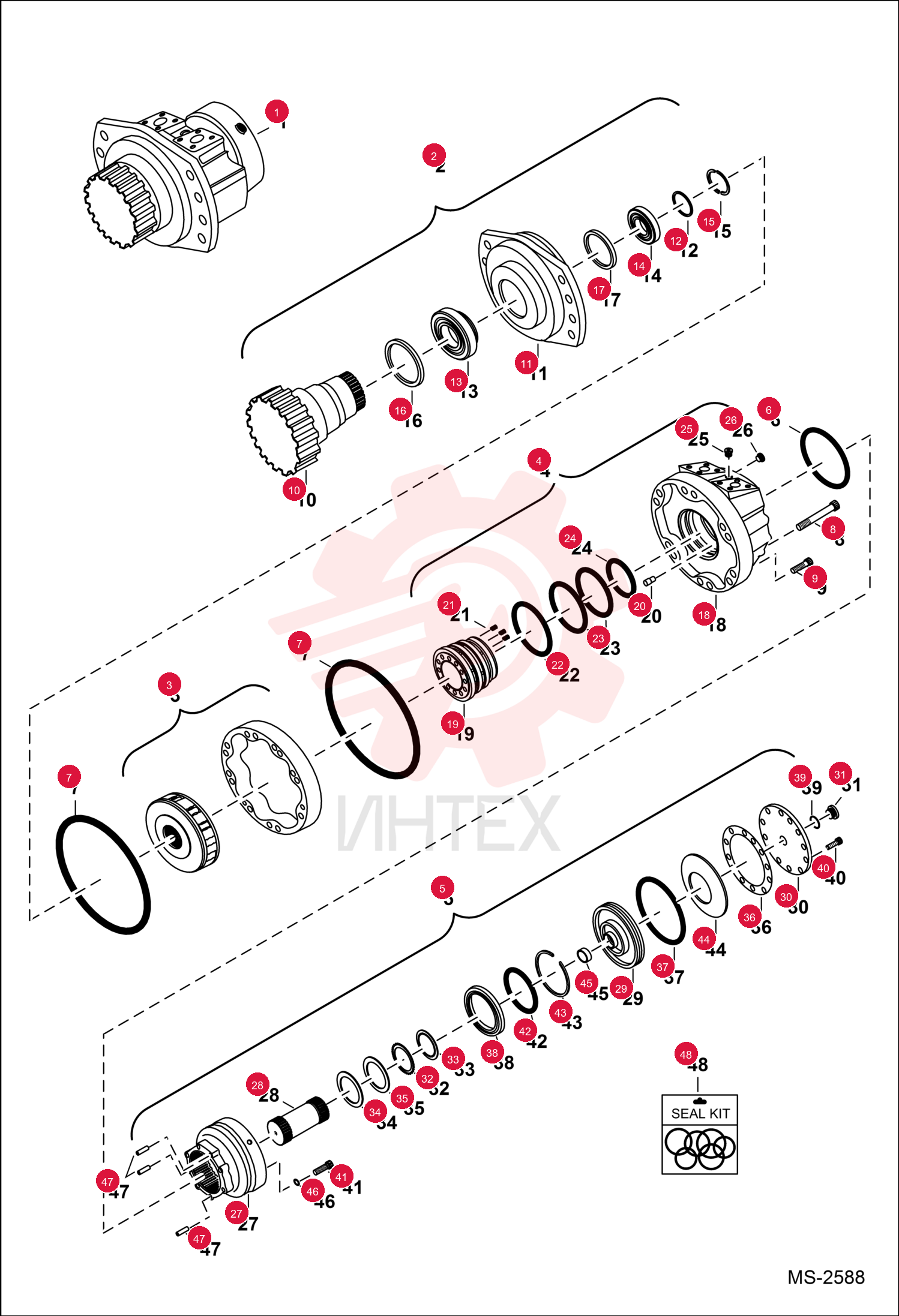

MOTOR, HYD SLEW 6689391REM (3)

MOTOR, HYD SLEW 6689391REM (3)

MOTOR, HYD SLEW 6689391REM (3)

1 6689391REM

  • 6689391REM - MOTOR
  • HYD SLEW

2 6689391

  • 6689391 - MOTOR
  • HYD SLEW
  • W/Ref. 2-47

3 6684715

  • 6684715 - HOUSING

4 6691250

  • 6691250 - ROTARY GROUP

5 6691251

  • 6691251 - CASE

6 6691252

  • 6691252 - BRAKE

7 6675195

  • 6675195 - SEAL
  • QUAD RING

8 6674029

  • 6674029 - SEAL
  • QUAD RING

9 6687080

  • 6687080 - BOLT
  • Was 6691253

10 6687081

  • 6687081 - BOLT
  • Was 6690039

11 6687074

  • 6687074 - SHAFT

12 6684719

  • 6684719 - HOUSING

13 6684933

  • 6684933 - BEARING

14 6677865

  • 6677865 - BEARING
  • REAR
  • Was 6686366

15 6677849

  • 6677849 - RING
  • SPLIT

16 6684721

  • 6684721 - SEAL

17 6678135

  • 6678135 - SEAL
  • SHAFT

18 6691255

  • 6691255 - CASE

19 6674184

  • 6674184 - PISTON

20 6675189

  • 6675189 - STOP PIN

21 6674037

  • 6674037 - SPRING

22 6674038

  • 6674038 - SEAL

23 6675228

  • 6675228 - SEAL

24 6674040

  • 6674040 - SEAL
  • W/ O-ring - 87
  • 15 mm I.D.

25 6689129

  • 6689129 - PLUG

26 6691256

  • 6691256 - PLUG

27 6691257

  • 6691257 - BRAKE

28 6674189

  • 6674189 - SHAFT

29 6676406

  • 6676406 - PISTON

30 6674199

  • 6674199 - COVER

31 6674707

  • 6674707 - PLUG

32 6674192

  • 6674192 - BRAKE
  • DISC
  • outer

33 6679780

  • 6679780 - DISC

34 6690089

  • 6690089 - SHIM
  • 0
  • 1 mm - Was 6674190

35 6674191

  • 6674191 - SHIM
  • 0
  • 3 mm - Was 6674191

36 6675892

  • 6675892 - GASKET

37 6684722

  • 6684722 - RING

38 6689088

  • 6689088 - QUAD RING

39 6687082

  • 6687082 - O-RING

40 6690095

  • 6690095 - SCREW

41 6684724

  • 6684724 - SCREW
  • Was 6691258

42 6689089

  • 6689089 - O-RING

43 6690094

  • 6690094 - CLAMP

44 6675897

  • 6675897 - DISC
  • SPRING

45 6674196

  • 6674196 - BUSHING

46 6674194

  • 6674194 - WASHER

47 6698076

  • 6698076 - PIN
  • DOWEL

48 6691254

  • 6691254 - SEAL KIT
  • W/Ref. 6
  • 7
  • 16
  • 17
  • 22-24 36
  • 37
  • 39 & 42 - Also Order Ref. 38
