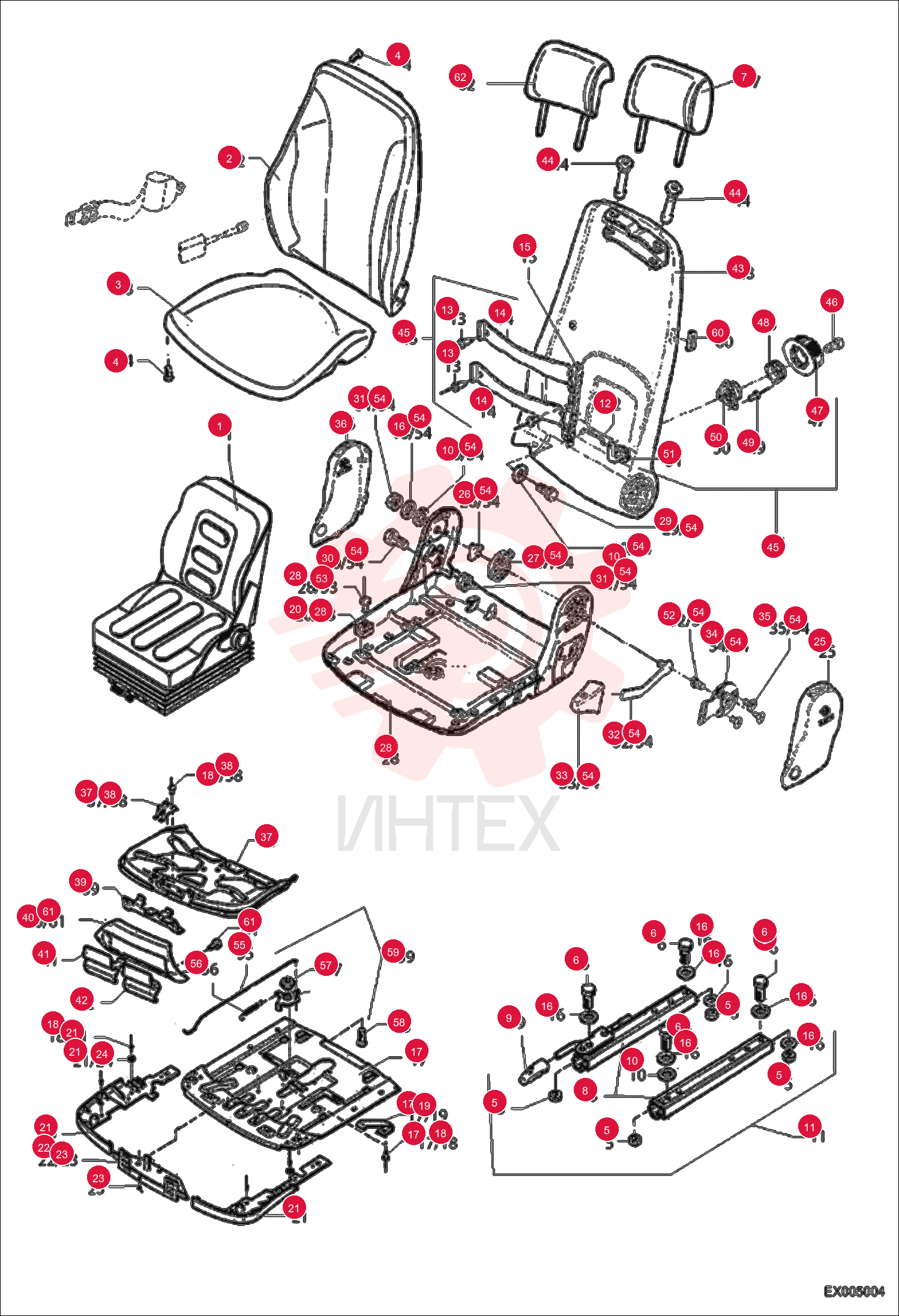

SEAT CLOTH ASSEMBLY 5305661655

SEAT CLOTH ASSEMBLY 5305661655

SEAT CLOTH ASSEMBLY 5305661655

1 5305661655

  • 5305661655 - SEAT CLOTH ASSEMBLY
  • W/Ref. 2-61

2 5305670188

  • 5305670188 - CUSHION
  • SEAT BACK CLOTH
  • W/Ref. 4

3 5305670189

  • 5305670189 - CUSHION SEAT
  • W/Ref. 4

4 5305670315

  • 5305670315 - BOLT

5 1210707011

  • 1210707011 - NUT

6 1008707817

  • 1008707817 - BOLT

7 5305670101

  • 5305670101 - HEADREST
  • option

8 5305670186

  • 5305670186 - ADJUSTING RAIL
  • W/Ref. 9

9 5305670190

  • 5305670190 - HANDLE

10 5305670104

  • 5305670104 - WASHER

11 5305670191

  • 5305670191 - MOUNTING PARTS
  • Ref. 5
  • 6
  • 10 & 16

12 5305670206

  • 5305670206 - ROD

13 5305670134

  • 5305670134 - RIVET

14 5305670207

  • 5305670207 - PLATE

15 5305670208

  • 5305670208 - BRACKET

16 5305670200

  • 5305670200 - WASHER

17 5305670137

  • 5305670137 - PLATE
  • W/Ref. 18-19 & 22

18 5305670138

  • 5305670138 - RIVET

19 5305670139

  • 5305670139 - SUSPENSION PLATE

20 5305670140

  • 5305670140 - SLIDING BLOCK
  • W/Ref. 53

21 5305670141

  • 5305670141 - COVER
  • W/Ref. 18 & 24

22 5305670032

  • 5305670032 - HANDLE
  • W/Ref. 23

23 5305670142

  • 5305670142 - RIVET

24 1307707010

  • 1307707010 - WASHER

25 5305670280

  • 5305670280 - COVER

26 5305670143

  • 5305670143 - BEARING

27 5305670034

  • 5305670034 - SPRING

28 5305670144

  • 5305670144 - SEAT PLATE ASSY
  • W/Ref. 20 & 53

29 1008707019

  • 1008707019 - BOLT

30 1008707318

  • 1008707318 - BOLT

31 1212251011

  • 1212251011 - NUT

32 5305670035

  • 5305670035 - LEVER

33 5305670036

  • 5305670036 - HANDLE

34 5305670437

  • 5305670437 - ADAPTER PLATE

35 5305670038

  • 5305670038 - BOLT

36 5305670282

  • 5305670282 - COVER

37 5305670193

  • 5305670193 - ROCKER
  • W/Ref. 3 & 38

38 5305670146

  • 5305670146 - SUSPENSION PLATE
  • W/Ref. 18

39 5305670040

  • 5305670040 - LEVER

40 5305670147

  • 5305670147 - COVER
  • W/Ref. 61

41 5305670041

  • 5305670041 - HANDLE
  • W/Ref. 55

42 5305670042

  • 5305670042 - HANDLE

43 5305670194

  • 5305670194 - BACK REST
  • W/Ref. 13 & 49

44 5305670149

  • 5305670149 - SLEEVE

45 5305670211

  • 5305670211 - BACK SUPPORT ASSY
  • W/Ref. 12-15 & 47-51

46 1045707512

  • 1045707512 - BOLT

47 5305670212

  • 5305670212 - HANDLE CPL

48 5305670213

  • 5305670213 - PINION

49 5305670214

  • 5305670214 - RIVET

50 5305670215

  • 5305670215 - BRAKE

51 5305670216

  • 5305670216 - BRACKET

52 5305670152

  • 5305670152 - BOLT

53 5305670153

  • 5305670153 - RIVET

54 5305670154

  • 5305670154 - MOUNTING PARTS BACKR
  • W/Ref. 10
  • 16
  • 26-27
  • 29-35 & 52

55 5305670155

  • 5305670155 - ROD

56 5305670043

  • 5305670043 - SPRING

57 5305670156

  • 5305670156 - RING

58 5305670157

  • 5305670157 - BOLT

59 5305670195

  • 5305670195 - LEVER
  • W/Ref. 56-58

60 5305670309

  • 5305670309 - COVER

61 5305670026

  • 5305670026 - BOLT

62 5305670367

  • 5305670367 - HEADREST
  • option
