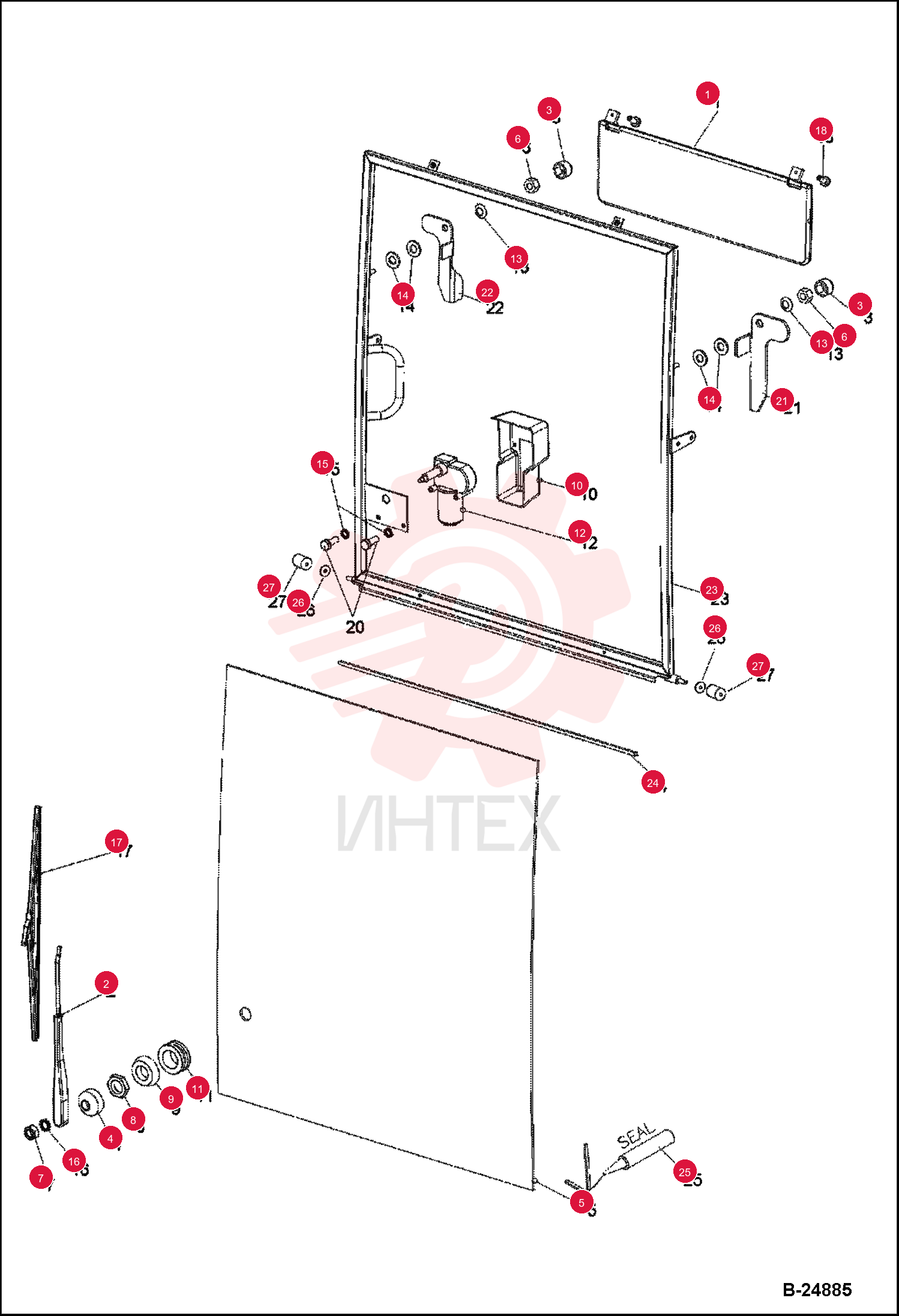

SUN VISOR 5388661451 (4)

SUN VISOR 5388661451 (4)

SUN VISOR 5388661451 (4)

1 5388661451

  • 5388661451 - SUN VISOR

2 5388661481

  • 5388661481 - WIPER ARM

3 5388661422

  • 5388661422 - GUARD CAP

4 5388661444

  • 5388661444 - CAP

5 5388662553

  • 5388662553 - FRONT WINDOW

6 1212251011

  • 1212251011 - NUT

7 1210707011

  • 1210707011 - NUT

8 5388662078

  • 5388662078 - NUT

9 5388662636

  • 5388662636 - SPACER

10 5388662839

  • 5388662839 - BOLT
  • Cover to Motor

11 5388665198

  • 5388665198 - COVER

12 5388661447

  • 5388661447 - RUBBER

13 5388665613

  • 5388665613 - MOTOR
  • WIPER
  • Was 5388665196

14 1323707018

  • 1323707018 - SPRING WASHER

15 1290707018

  • 1290707018 - WASHER

16 1290707014

  • 1290707014 - WASHER

17 1327707018

  • 1327707018 - TOOTHED LOCK WASHER

18 5388661479

  • 5388661479 - WIPER BLADE

19 1045707609

  • 1045707609 - BOLT

20 1008707912

  • 1008707912 - BOLT

21 5388662601

  • 5388662601 - HANDLE

22 5388662600

  • 5388662600 - HANDLE

23 5388662733

  • 5388662733 - FRAME

24 5388662624

  • 5388662624 - SEAL

25 5388662716

  • 5388662716 - WASHER

26 5388662573

  • 5388662573 - ROLLER
