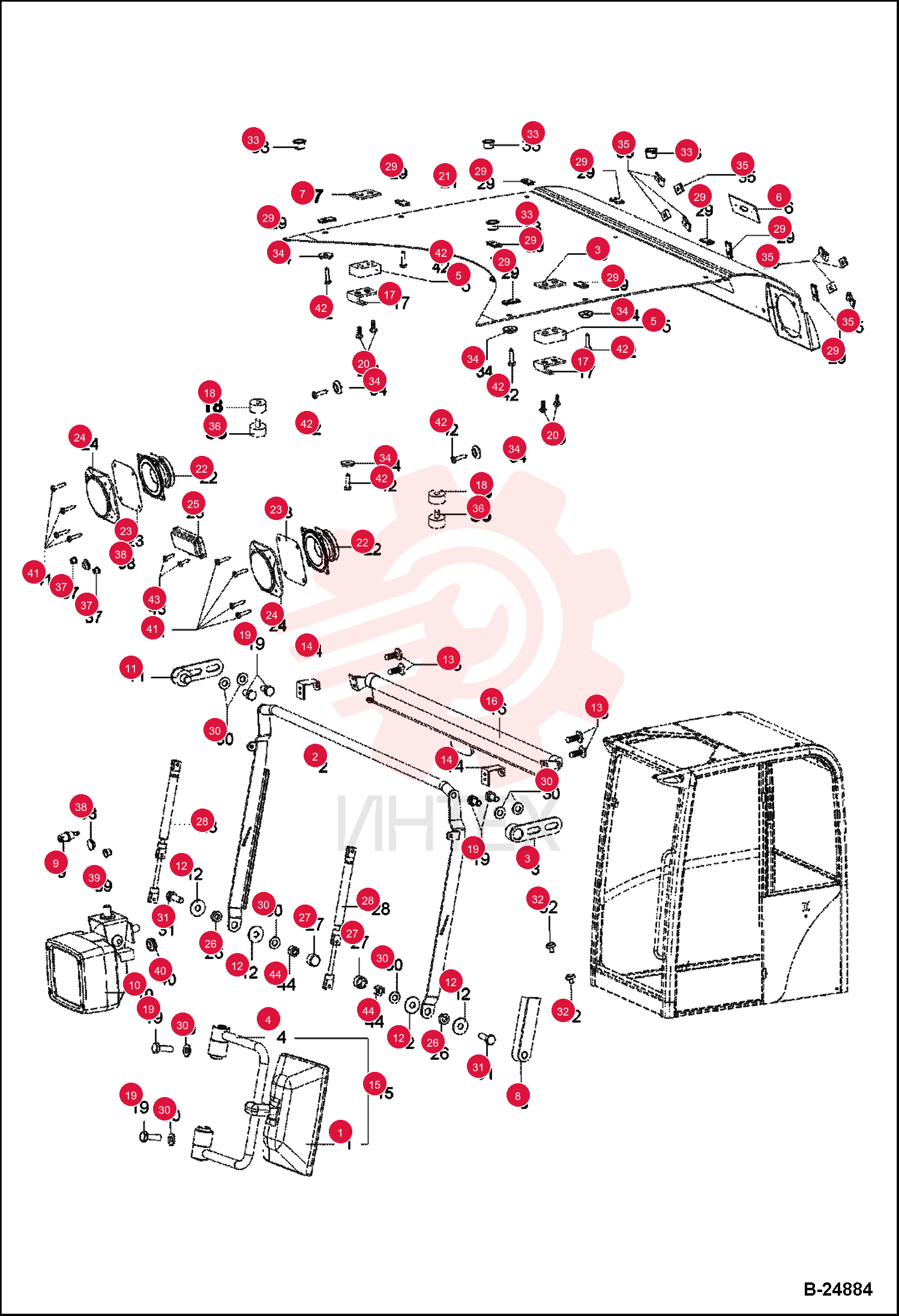

MIRROR 5388661484 (2)

MIRROR 5388661484 (2)

MIRROR 5388661484 (2)

1 5388661484

  • 5388661484 - MIRROR

2 5388665063

  • 5388665063 - FRAME

3 5388665061

  • 5388665061 - HOLDER

4 5388661453

  • 5388661453 - ROD MIRROR

5 5388665165

  • 5388665165 - BLOCK

6 5388665164

  • 5388665164 - PLATE

7 5388665163

  • 5388665163 - PLATE

8 5388665160

  • 5388665160 - PROTECTION COVER

9 5388662108

  • 5388662108 - NOZZLE

10 5350661223

  • 5350661223 - WORKING LIGHT
  • Was 5388660811

11 1813000035

  • 1813000035 - BULB
  • 12volt-55w

12 5388665046

  • 5388665046 - HOLDER

13 1307707018

  • 1307707018 - WASHER

14 5388662880

  • 5388662880 - BOLT

15 5388665043

  • 5388665043 - HOLDER

16 5388662087

  • 5388662087 - MIRROR
  • Includes Ref. 1 & 4

17 5388665044

  • 5388665044 - SUN VISER

18 5388665045

  • 5388665045 - HOLDER

19 5388662777

  • 5388662777 - SPACER RING

20 1008707018

  • 1008707018 - BOLT

21 5388665162

  • 5388665162 - BOLT

22 5388665161

  • 5388665161 - COVERING

23 5388662550

  • 5388662550 - LOUDSPEAKER

24 5388662814

  • 5388662814 - DUST PROTECTION

25 5388662575

  • 5388662575 - LOUDSPEAKER COVER

26 5388662690

  • 5388662690 - INTERIOR LIGHT

27 5388662892

  • 5388662892 - BUSHING

28 5388661422

  • 5388661422 - GUARD CAP

29 5388662572

  • 5388662572 - GAS PRESSURE SPR.

30 5388662515

  • 5388662515 - CLIP

31 1290707018

  • 1290707018 - WASHER

32 5388661452

  • 5388661452 - BOLT

33 5388661482

  • 5388661482 - RUBBER BLOCK

34 5388662323

  • 5388662323 - COVER

35 5388662561

  • 5388662561 - WASHER

36 5388662687

  • 5388662687 - CLIP

37 5388662947

  • 5388662947 - STOP

38 5388662794

  • 5388662794 - CAP

39 5388662057

  • 5388662057 - PLUG

40 5388662649

  • 5388662649 - CAP

41 5388661429

  • 5388661429 - WASHER RUBBER

42 5388662945

  • 5388662945 - BOLT

43 5388662046

  • 5388662046 - BOLT

44 5388662796

  • 5388662796 - BOLT

45 5388662946

  • 5388662946 - NUT
