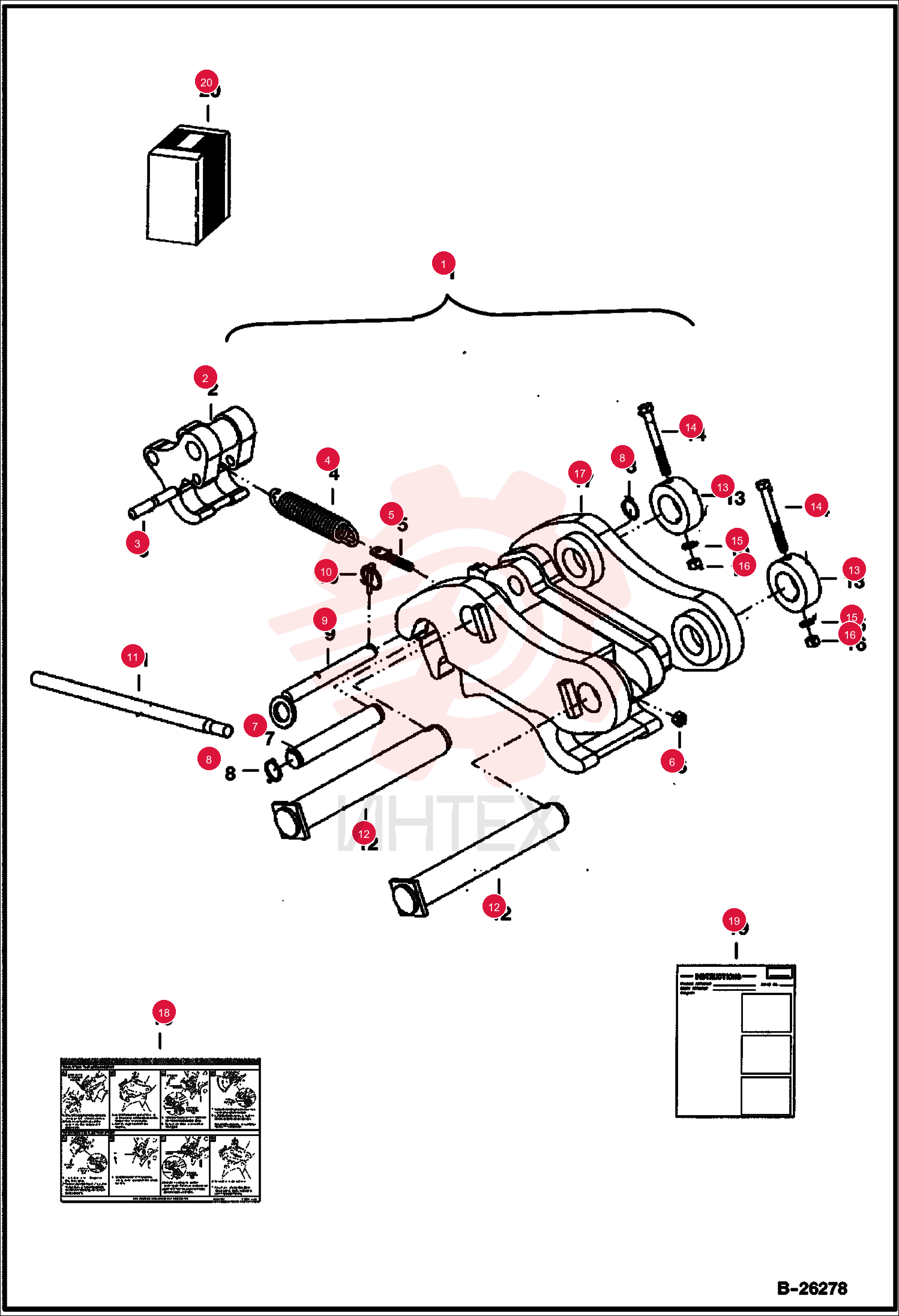

LOCK 7010726 (3)

LOCK 7010726 (3)

LOCK 7010726 (3)

1 7010726

  • 7010726 - LOCK
  • Was 6690442

2 7010727

  • 7010727 - PIN
  • Was 6690447

3 6690448

  • 6690448 - SPRING

4 6690450

  • 6690450 - TENSIONER

5 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

6 7010724

  • 7010724 - PIN
  • Was 6690453

7 6690454

  • 6690454 - CLIP

8 6690455

  • 6690455 - PIN

9 6690456

  • 6690456 - PIN

10 6690457

  • 6690457 - HANDLE

11 6690458

  • 6690458 - PIN
  • MOUNTING

12 6690459

  • 6690459 - COLLAR

13 17C864

  • 17C864 - BOLT

14 4E8

  • 4E8 - WASHER

15 61D8

  • 61D8 - NUT 5

16 6690439

  • 6690439 - FRAME

17 7130241

  • 7130241 - DECAL

18 6904787

  • 6904787 - INSTRUCTIONS

19 7138184

  • 7138184 - PIN KIT
  • W/Ref. 12-16 (2 of each)
