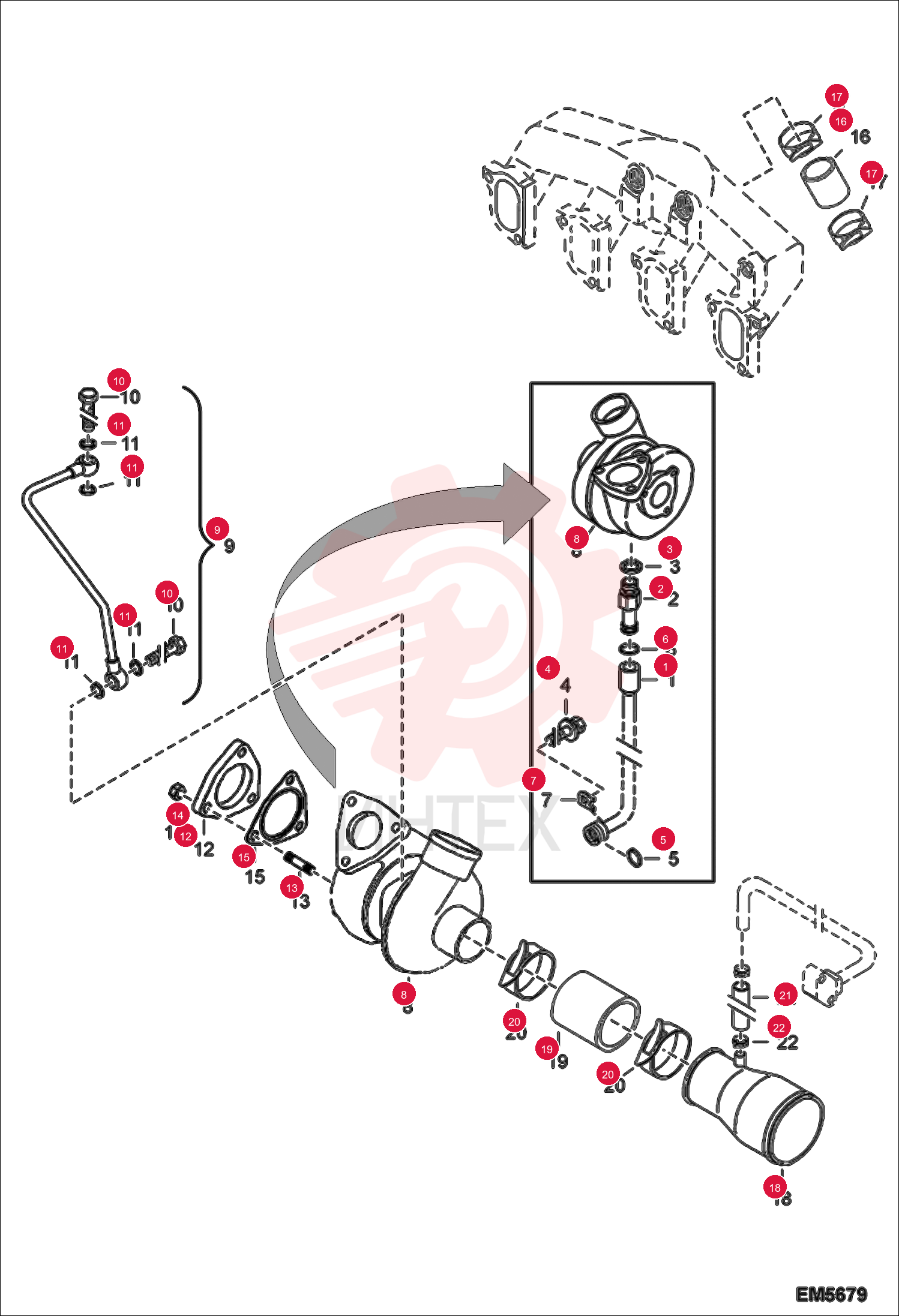

TUBELINE OIL RETURN 7013552

TUBELINE OIL RETURN 7013552

TUBELINE OIL RETURN 7013552

1 7013552

  • 7013552 - TUBELINE OIL RETURN

2 7013501

  • 7013501 - NIPPLE SCREW-IN

3 7028293

  • 7028293 - RING
  • SEALING
  • Was 6668108

4 7013407

  • 7013407 - BOLT HEXAGON

5 7013424

  • 7013424 - ORING

6 7013426

  • 7013426 - ORING

7 7013511

  • 7013511 - PLATE RETAINING

8 5411657984

  • 5411657984 - TURBOCHARGER

9 7013551

  • 7013551 - TUBELINE LUBRICAT. OIL
  • W/Ref. 10-11

10 6514745

  • 6514745 - BOLT
  • Was 7013358

11 6672933

  • 6672933 - SEAL
  • Was 7013383

12 5411663808

  • 5411663808 - FLANGE
  • INTAKE

13 5411656901

  • 5411656901 - STUD

14 5411657804

  • 5411657804 - NUT

15 5411656449

  • 5411656449 - SEAL

16 5411664415

  • 5411664415 - RUBBER SLEEVE

17 5411663813

  • 5411663813 - CLIP
  • HOSE

18 5411664420

  • 5411664420 - INLET PIPE

19 5411664415

  • 5411664415 - RUBBER SLEEVE

20 5411663813

  • 5411663813 - CLIP
  • HOSE

21 6673962

  • 6673962 - HOSE
  • Was 7013402

22 6673963

  • 6673963 - CLAMP
  • Was 7013396
