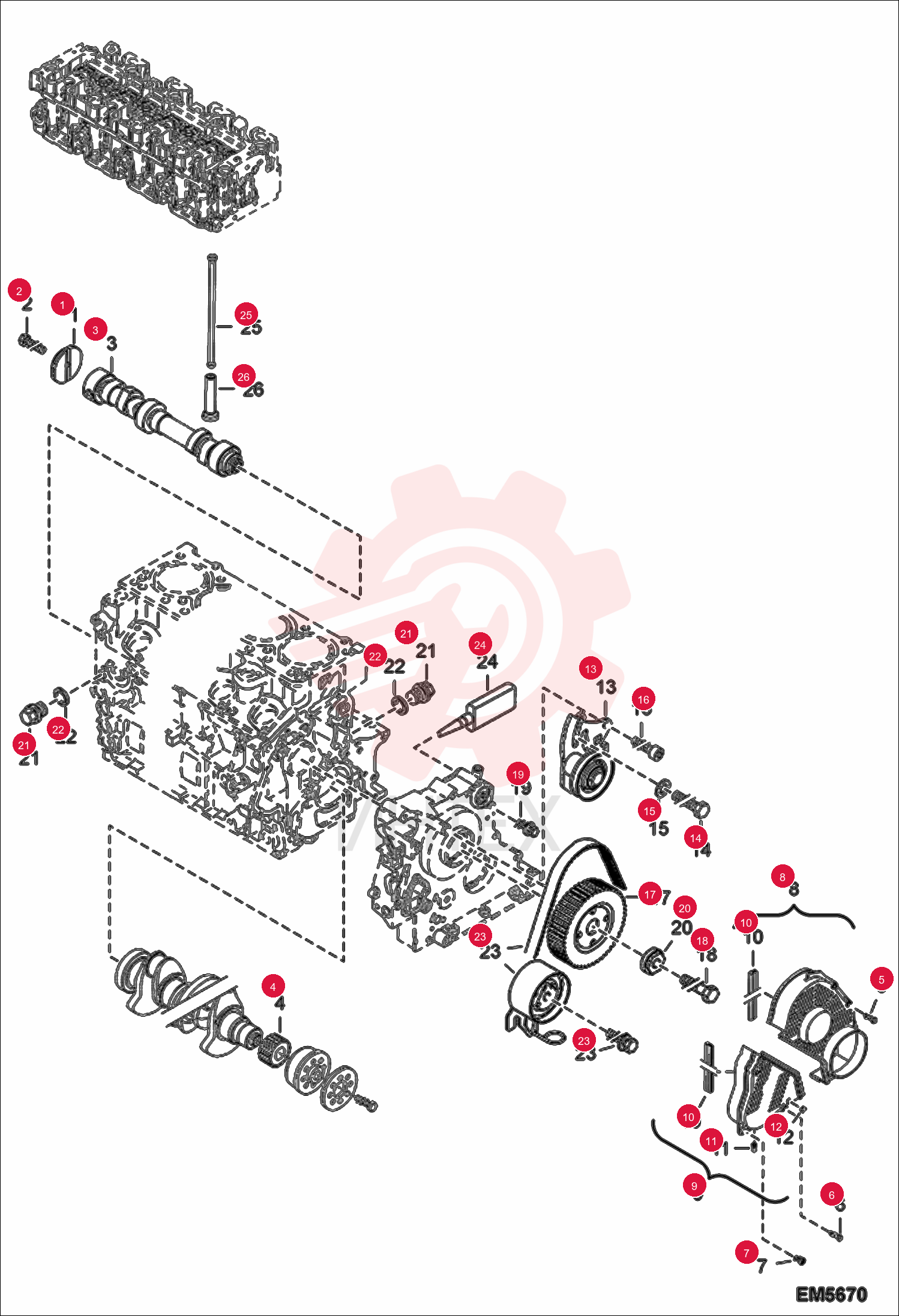

WASHER, THRUST 6666469

WASHER, THRUST 6666469

WASHER, THRUST 6666469

1 6666469

  • 6666469 - WASHER
  • THRUST
  • Was 7013473

2 7013377

  • 7013377 - BOLT HEXAGON

3 7013559

  • 7013559 - CAMSHAFT

4 5411664519

  • 5411664519 - SYNCHRONE BERLT PULLEY

5 7013341

  • 7013341 - BOLT HEXAGON

6 7013363

  • 7013363 - BOLT HEXAGON

7 6679667

  • 6679667 - SCREW
  • Was 7013444

8 7013526

  • 7013526 - COVER PROTECTION
  • W/Ref. 10

9 6688287

  • 6688287 - COVER PROTECTION
  • W/Ref. 10-12 - Was 7012046

10 6688205

  • 6688205 - SEAL
  • 1 METER
  • Was 7013435

11 7013514

  • 7013514 - GROMMET RUBBER

12 6672899

  • 6672899 - PLUG
  • Was 7013397

13 5411664267

  • 5411664267 - TENSIONING PULLEY

14 5411664268

  • 5411664268 - BOLT

15 5411664269

  • 5411664269 - WASHER

16 5411657795

  • 5411657795 - BOLT

17 5411664081

  • 5411664081 - SYNCHRONE BELT PULLEY

18 6666711

  • 6666711 - BOLT
  • Was 7012042

19 5411664082

  • 5411664082 - BOLT

20 5411664084

  • 5411664084 - WASHER

21 7015311

  • 7015311 - PLUG SCREW

22 6666393

  • 6666393 - SEAL RING
  • Was 7013351

23 5411657858

  • 5411657858 - REPAIR KIT

24 5411664001

  • 5411664001 - PACKING COMPOUND

25 7013530

  • 7013530 - ROD PUSH

26 6666504

  • 6666504 - VLV TAPET
  • Was 7013484
