442
/

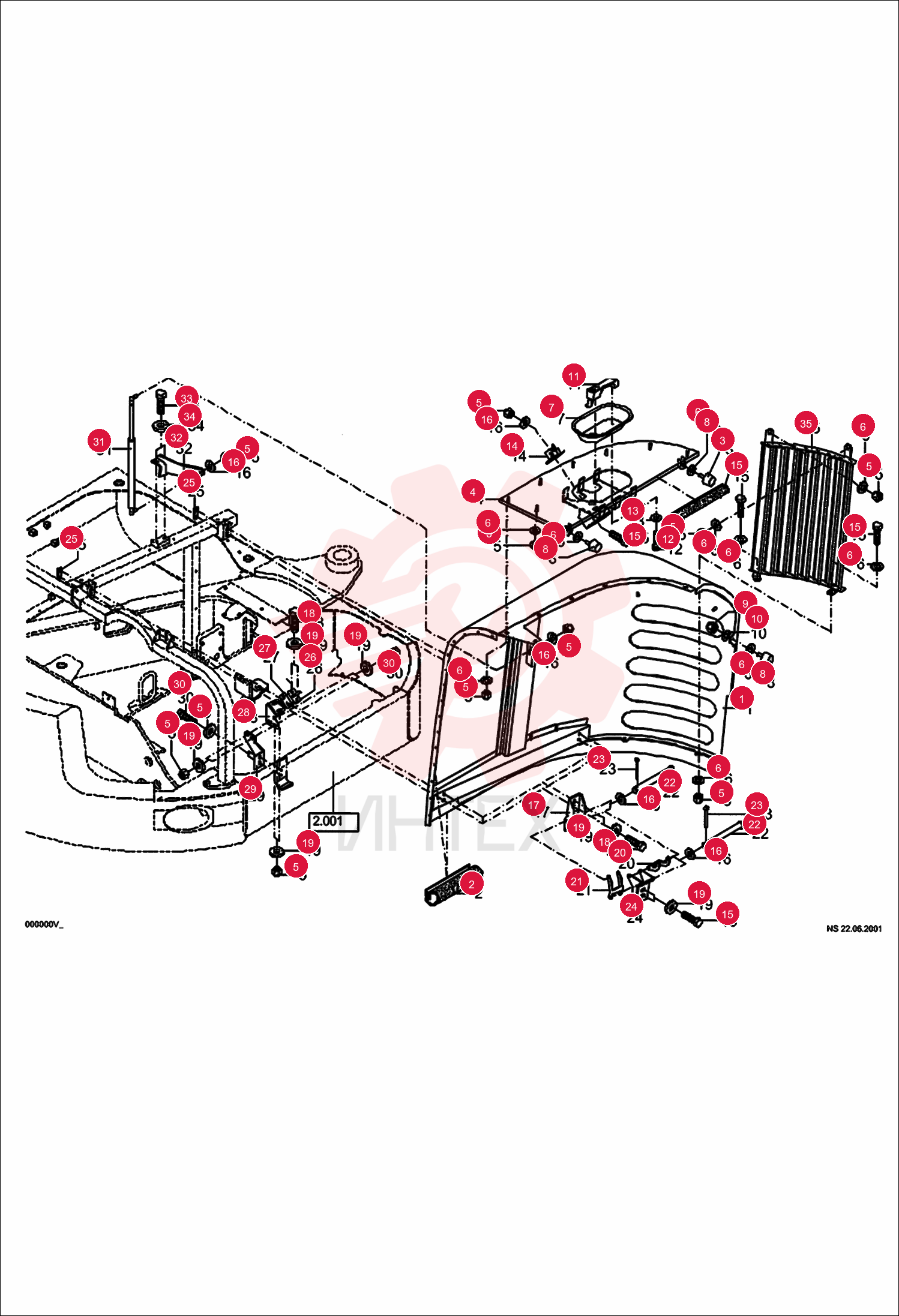

SEAL 7024438 (1)

SEAL 7024438 (1)

SEAL 7024438 (1)

1 7024438

  • 7024438 - SEAL

2 6190028010

  • 6190028010 - PLATE

3 1212251011

  • 1212251011 - NUT

4 1307707018

  • 1307707018 - WASHER

5 0190028007

  • 0190028007 - HANDLE

6 5101290955

  • 5101290955 - STOP

7 1212251009

  • 1212251009 - NUT

8 1307707014

  • 1307707014 - WASHER

9 5354604442

  • 5354604442 - PLASTIC HANDLE

10 1008707213

  • 1008707213 - BOLT

11 1290707014

  • 1290707014 - WASHER

12 5354604335

  • 5354604335 - HOOD BRACKET

13 1008707018

  • 1008707018 - BOLT

14 1290707018

  • 1290707018 - WASHER

15 6190028023

  • 6190028023 - HINGE

16 1008707318

  • 1008707318 - BOLT

17 1343707057

  • 1343707057 - WASHER

18 6190028024

  • 6190028024 - HINGE

19 6190028025

  • 6190028025 - HINGE

20 1360707139

  • 1360707139 - PIN

21 1395707017

  • 1395707017 - COTTER PIN

22 6190028022

  • 6190028022 - HINGE

23 0190028163

  • 0190028163 - MOUNT

24 5354604338

  • 5354604338 - COTTER

25 6176028067

  • 6176028067 - FLAP

26 6190028011

  • 6190028011 - ANGLE BRACKET

27 6202528115

  • 6202528115 - BRACKET

28 1008707618

  • 1008707618 - BOLT

29 5696636604

  • 5696636604 - GAS PRESSURE SPRING
  • Was 5696636295

30 6190028065

  • 6190028065 - BRACKET

31 1008707923

  • 1008707923 - BOLT
  • Was 1008707923

32 1343707059

  • 1343707059 - WASHER

33 6190028083

  • 6190028083 - GRID
