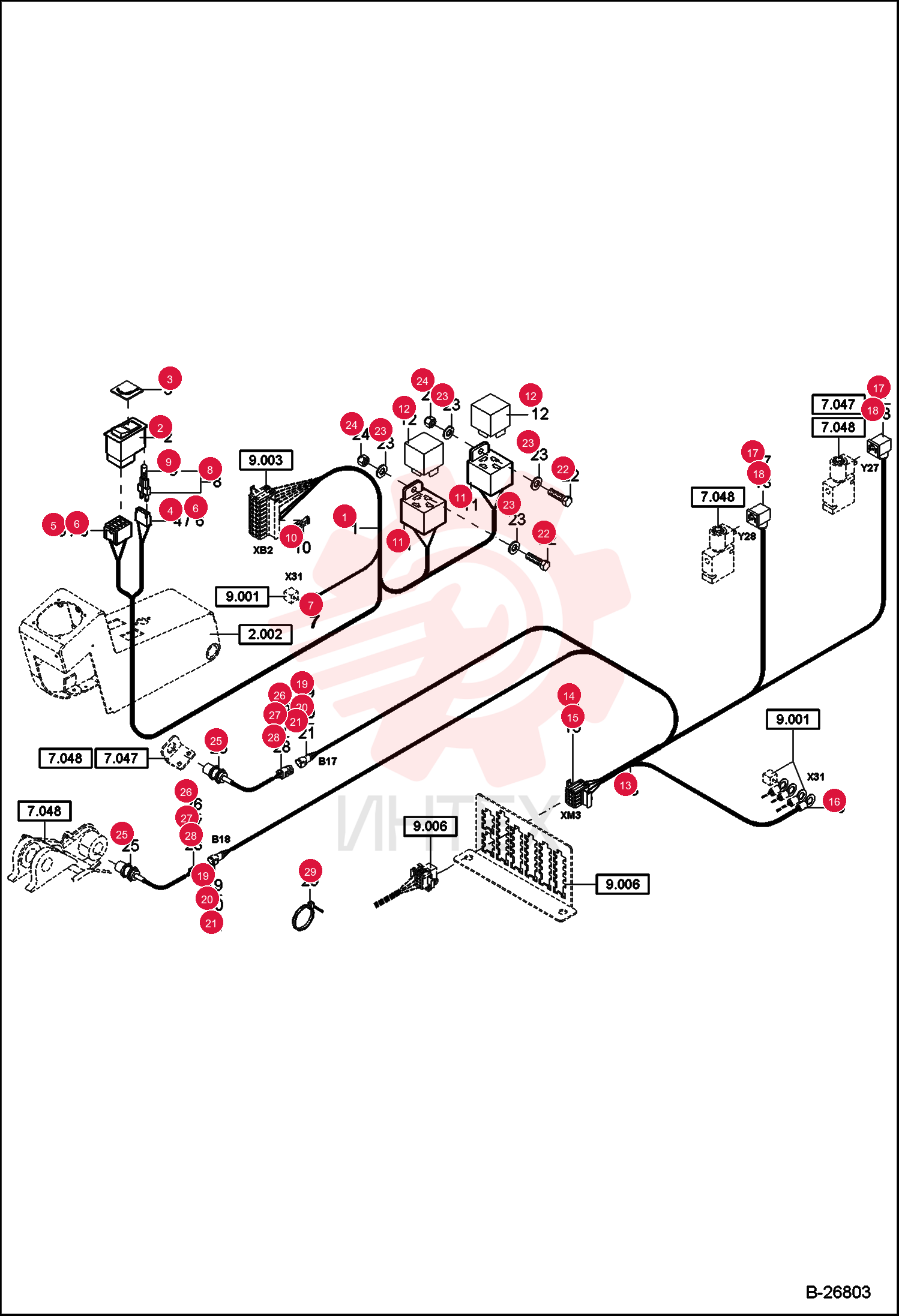

WIRE HARNESS 0234241030 (2)

WIRE HARNESS 0234241030 (2)

WIRE HARNESS 0234241030 (2)

1 0234241030

  • 0234241030 - WIRE HARNESS
  • W/Ref. 2-12

2 5050651363

  • 5050651363 - ROCKER SWITCH

3 5358650266

  • 5358650266 - SYMBOL

4 5050650231

  • 5050650231 - HOUSING

5 5050650225

  • 5050650225 - HOUSING

6 5350246805

  • 5350246805 - TERMINAL FEMALE

7 5350246610

  • 5350246610 - CABLE CONNECTOR

8 5050650226

  • 5050650226 - LAMP
  • W/Ref. 9

9 1813000021

  • 1813000021 - ROUND BULB

10 5350249552

  • 5350249552 - CONNECTOR

11 5050093090

  • 5050093090 - RELAY BRACKET

12 5050247335

  • 5050247335 - RELAY

13 0234241031

  • 0234241031 - WIRE HARNESS
  • Include Ref. 15-21

14 5350249684

  • 5350249684 - CONNECTOR

15 5350249552

  • 5350249552 - CONNECTOR

16 5350249597

  • 5350249597 - CABLE CONNECTOR

17 5552659550

  • 5552659550 - BOX
  • W/Ref. 18

18 5552659513

  • 5552659513 - SEAL

19 5350555317

  • 5350555317 - HOUSING (FEMALE)

20 5350555308

  • 5350555308 - LOCK

21 5350555325

  • 5350555325 - FEMALE TERMINAL

22 1008707609

  • 1008707609 - BOLT

23 1290707012

  • 1290707012 - WASHER

24 1212251007

  • 1212251007 - NUT

25 5350639017

  • 5350639017 - SWITCH
  • W/Ref. 26-27

26 5350555315

  • 5350555315 - HOUSING (MALE)

27 5350555307

  • 5350555307 - LOCK

28 5350555321

  • 5350555321 - MALE TERMINAL

29 5653093560

  • 5653093560 - BINDER
